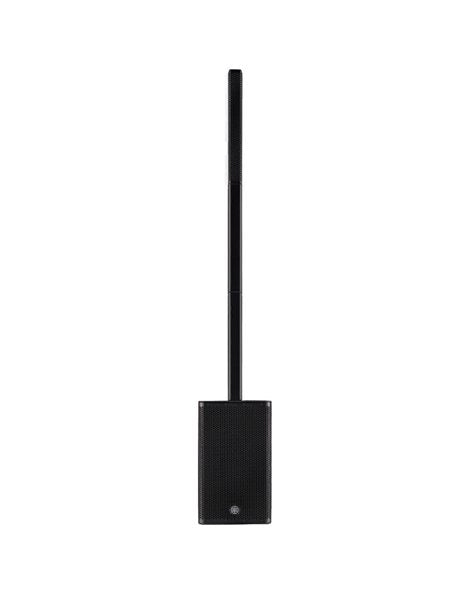

YAMAHA Stagepas-1K-mkII Portable PA System

YAMAHA Stagepas-1K-mkII Portable PA System

Regular price €1.450,00 EUR
Regular price Sale price €1.450,00 EUR
Sale Sold out
Tax included.
0 in Stock. Available online!

1100W, 125 dB SPL peak@1m, portable PA system with 5 channel digital mixer, 12-inch subwoofer, 1.5-inch x10 line array speaker, a Bluetooth input, SPX digital reverbs, Priority Ducker and 1knob EQ and multi band comp for master output.

Made for :

  • Small Band
  • Mobile DJ
  • Corporate AV

Specifications :

  • 1100W power output
  • Biggest in the class 12-inch subwoofer for low frequency
  • 1.5-inch x10 slim line array speaker for high frequency
  • Digital mixer (3 mono mic/line + 1 stereo line)
  • Multi band comp “MODE” for master output
  • 1-knob EQ per channel
  • High resolution SPX digital reverb (4 types, parameter control)
  • Priority Ducker for stereo channel
  • 4 band PEQ per channel via remote control APP “STAEGPAS Controller”
  • 2x Hi-Z (high impedance) inputs
  • Link out and monitor out
  • Dedicated cover included
  • Optional reverb foot switch (FC5)
  • Optional dolly (DL-SP1K) for more portability
Features  :
  • J-curve slim line array
  • Class-leading 12-inch “compact” subwoofer
  • 1100W amplifier
  • Digital mixer with versatile input
  • Professional control with a single knob
  • Priority Ducker
  • STAGEPAS Controller
  • Simple setup
  • High-grade polyurea coating
  • Expandable STAGEPAS systems
  • Fitted cover included
  • DL-SP1K optional dolly


STAGEPAS 1K mkII
Outline
Type Powered subwoofer with a line array speaker
Mixing capability Mixing channels 5 (Mono x3 + Stereo x1)
Input channel functions Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
Output channel functions MODE (SPEECH/MUSIC/CLUB)
I/O Inputs Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1
Outputs Link out x1, Monitior out x1
Bluetooth Bluetooth Ver.5.0, A2DP (SBC, AAC)
Control and others Reverb foot switch, STAGEPAS Controller (iOS/Android app)
On-board processors DSP SPX digital reverb (4 program, parameter control)
General specifications
Speaker type Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed
Frequency range (-10dB) 37 Hz - 20 kHz
Coverage area H170? x V30?
Crossover 240 Hz
Maximum output level (1m; on axis) 125 dB SPL
Components LF Powered subwoofer: 12” (30 cm) Cone
HF Line array speaker: 1.5” (3.8 cm) Cone x 10
Amplifier class Class-D
Power rating Dynamic 1100 W
Power consumption 25 W (Idle), 91 W (1/8 power)
Power requirements Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz
Handle Top of powered subwoofer x1
Dimensions (W x H x D) System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)
Weight System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each)
Accessories Power cord x 1, Cover x 1
Options Yamaha DL-SP1K (Dedicated dolly), FC5 (foot switch for reverb ON/OFF)
