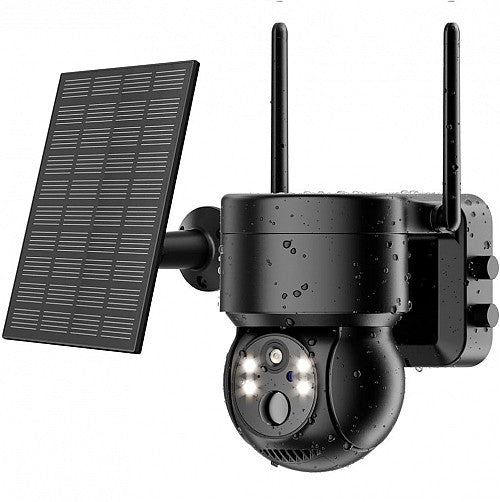

WOOX R3569 Outdoor Battery Camera 3MP PTZ with Solar Panel

• Type: Outdoor
• Battery Powered: Yes
• Solar Powered: Yes
• Resolution: 3MP
• Lens Type: PTZ
• Battery Size: 5200mAh
• Two-Way Audio: Yes
• Capacity: Up to 128GB SD

• Weatherproof, UV resistance; IP65 certified
• Wireless connection, rechargeable batteries
• Unlimited energy efficient charging by included solar panel
• PTZ rotating technology
• Two-Way Audio
• Motion / Sound Detection
• Full HD 1080P
• 3MP high quality stream quality
• 3 different night visions: Infrared (black-white) / Color night / Smart night (bright color)
• Works with Amazon Alexa, Echoshow, Google Home, Nest Hub

Weatherproof, UV resistance; IP65 certified

• The WOOX R3569 is IP65 certified which makes the R3569 WOOX outdoor security camera ideal for using outside and keeping recording in the ever-changing outdoor environment no matter rain or sunshine. UV resistance makes this R3569  outdoor camera ideal for guarding your home well even when the ultraviolet rays are particularly strong or the ambient temperature is between -20° and +60°C

Wireless connection, battery

• The R3569 comes with a non-replacable rechargeable battery of 5200mAh which can work up to 3 months on a full charge. Charging from empty to full takes around 4 hours with the supplied micro USB charging cable that is included in the package. The WOOX Home app gives you a notification when the battery is nearly empty so you have time to recharge and make sure your security does not get timed out for too long, charging until the LED lights up and your R3569 is good to go again

Green, energy saving charging

• Our R3569 kit comes including a 3 watt solar panel with an easy to install bracket and connection cable to the R3569 camera unit in order to keep it charged by solar lighting all the time, avoid extra energy use and charge by solar, it is energy saving and energy sufficient, let's keep it green together

PTZ technology camera

• PTZ stands for Pan Tilt and Zoom. It is a camera used for surveillance which has remote directional and zoom controls. Panning and Tilting is the part of camera physically moving, while the zoom function is the movement of the lens changing its focal length and focus

Two-Way Audio

• Listening and talking by using "WOOX Home" App anytime and anywhere. WOOX Home R3569 Cam Outdoor comes equipped with excellent two-way communication, letting you ask the courier to leave the package on the porch to complete unattended delivery, or help you scare away any would-be thieves

Motion / Sound Detection

• Keep an eye on your property at all times. WOOX Home R3569 Cam Outdoor features motion and sound detection, live alerts hit your app pretty quickly, make it easy to deter and catch thieves or intruders. To ensure extra security the R4252 also gives you the option to light up the 3 LED lights at the lens of the camera and it also includes a siren function that you can activate by several smart automations in the setting menu of the camera

What a view

• WOOX R3569 Cam Outdoor can rotate by its bracket and together with the 120 degrees field of view, it provids you with the full protection you need. Equipped with a high-quality sensor and 3MP effective pixel streaming the R3569 provides crystal clear 1080P HD content. Not only in daytime but also during the night times by three different Night vision levels: Infrared (black-white) - Regular color vision or Smart vision which is a brighter form of color night vision

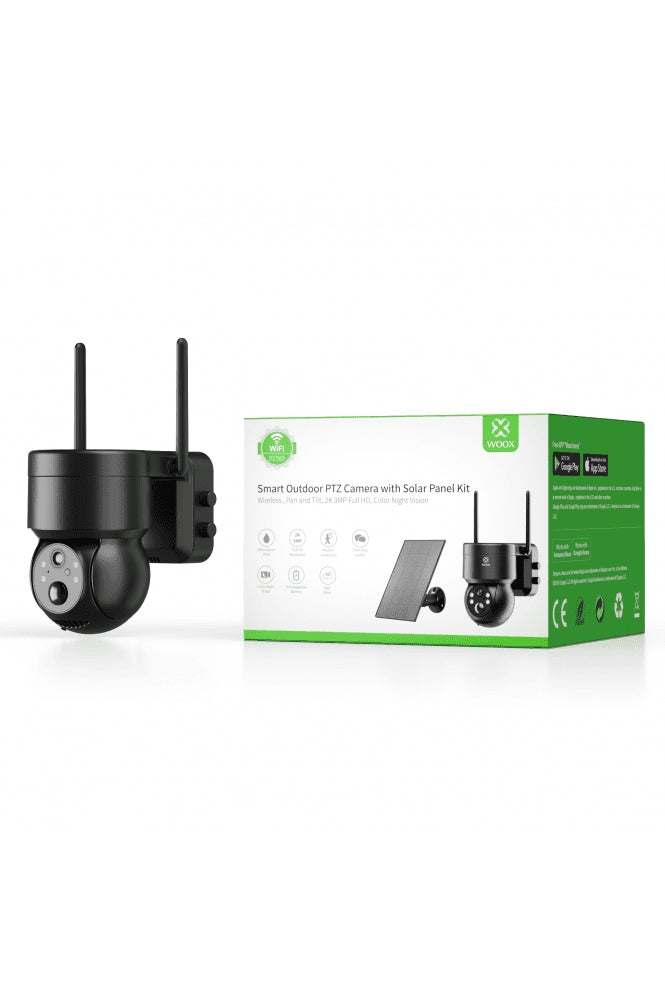

Package includes:

• Smart Outdoor camera x 1
• Solar panel
• USB charging cable x 1
• User manual x 1
• Screw bag x 1
• Security sticker x 2

• Product Dimension 64x62x90mm (camera), 47.8x47.8x77mm (bracket)
• Net Weight 245g
• Power Cable Length : 1m
• Housing Material : PC (bracket: PC +ABS + iron)
• Housing : Black
• Ingress Protection(IP) : IP65
• Image Sensor : 1/2.8" 2Megapixel progressive CMOS
• Lens Length : 2.8mm
• Aperture : F2.0
• Speaker : 1W 8Ω
• Noise Reduction : 3D NR
• Power Supply : Battery and micro USB
• Power Supply by USB Directly without Battery :  No, battery is required
• Notification Image Resolution : HD(640*360)
• Live Stream Video Resolution : HD(2304*1296) / SD(640*360) @15fps
• Live Stream Effective Pixels : 3MP
• Live Stream Effective Pixels by HW or SW Hardware straight out
• Angle of View(H/v/D) : H108.4° V58.1° D128.5°
• Audio Input : Built in Mic
• Audio Output : Built in Speaker
• Video Compression : H.264 / H.265
• Night Vision Mode Full color and Black&white mode
• Number of infrared light : 4 pcs
• IR Distance : 10m
• IR On/Off Control : Auto/ Manual
• Number of white light : 4 pcs
• White Light Color Temperature : 6500K
• White Light Color Rendering index : 70
• White Light Luminous Flux : 140-150lm
• White Light Lighting Angle : 12°
• Lighting Distance Distance : 10 meters
• Wireless Standard : IEEE 802.11 b/g/n
• Wireless Frequency : 2.412 GHz ~ 2.474 GHz
• WiFi Encryption Protocol : WPA-PSK/WPA2-PSK, WPA/WPA2, WEP
• Working Temperature : -10℃~50℃
• Storage Temperature : -20℃~60℃
• Working Humidity : 20%-85%RH
• Pairing Method : QR code
• Two-way Talk : Support
• Motion Detection : Support
• WebRTC : Support
• Humanoid Filtering : Support
• IR CUT : Support
• Sound Alarm : Support
• Reset button : Reset button (hold and press 10 seconds)
• PIR Detection Angle : 120° （MAX）
• PIR Detection Distance :  8 meters
• PIR Detection sensitivity 5-6 meters / 6-7 meters / 8 meters
• Minium PIR Report Time Gap : 60s
• Local Storage SD Slot : Micro SD Slot (up to 128GB)
• Hot Swappable SD Card : Support
• Condition to trigger local storage : Motion detection
• Condition to trigger cloud storage : Motion detection
• Tuya Cloud Storage : Support
• Privacy Mode : Support
• Power LED Color : Red
• Status Indicator LED Color : Red, blue, green
• Alexa and Google Assistant : Support
• Battery Type : 18650
• Battery Capacity :  5200mAh
• Abnormal Battery Voltage Level and the percentage : Voltage lower than 3.4V, battery less than 5%
• Battery charging time : (Input DC 5V1A) 8 hours
• Battery protection : Built-in battery pack
• Solar Panel  : Support
• Housing Material : ABS
• Solar Panel Output Power : 3W
• The Length of Cable of Solar Panel : 2 meters
• Working Temperature : -20℃~60℃
• Working Humidity : ≤60%
• Ingress Protection(IP) : IP65
• Solar Panel Net Weight : 0.296kg
