Tenda TEF1109P-8 9Port Switch 8FE PoE + 1FE Uplink 60W

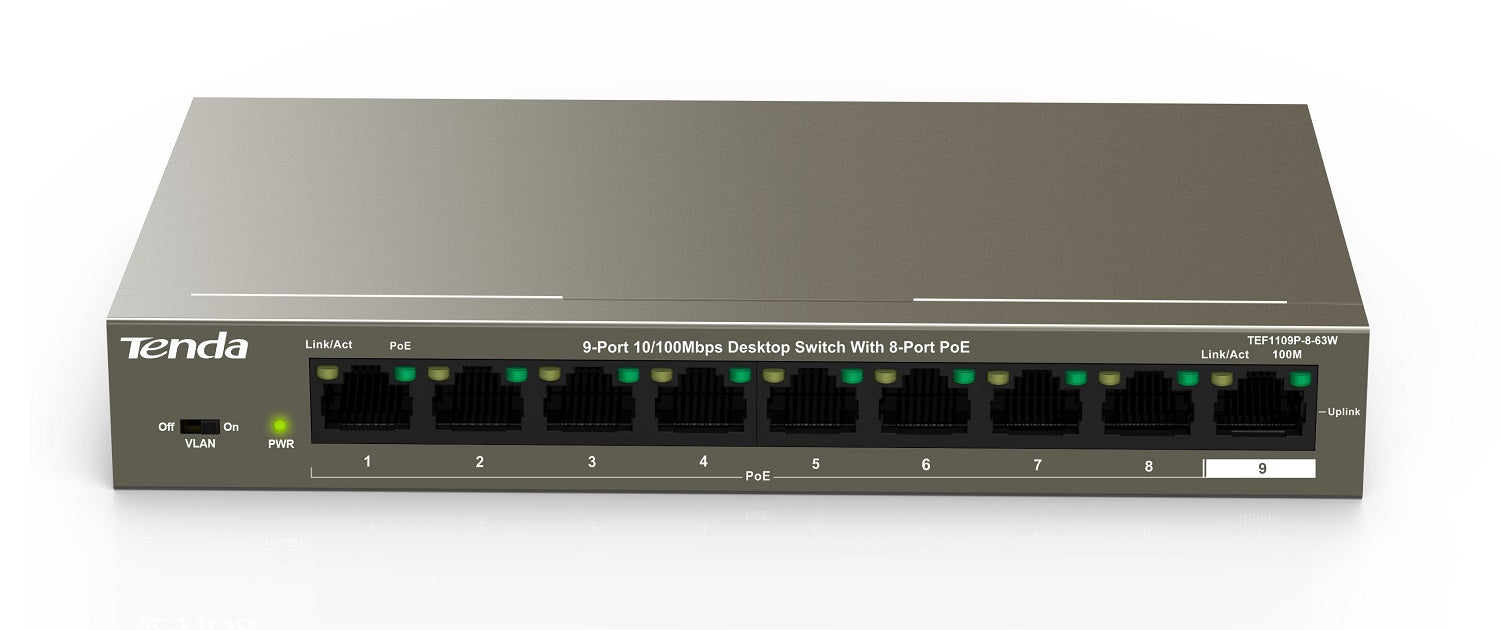

TEF1109P-8-63W is an 9-Port 10/100Mbps Desktop Switch With 8-Port PoE developed by Tenda. It provides 9 10/100 BASE-TX RJ45 ports. Ports 1-8 support IEEE 802.3at PoE standard with each port providing power of 15.4W, or support IEEE 802.3af PoE+ standard with each port providing power of 30W. The whole device can provide power of up to 58W. By using CAT5 twisted pairs, it can provide power and data transmission to APs, IP cameras, IP phones, and so on. In addition, all the port s support lightning protection of 6kV and long distance data transmission and powering of 250m, which decreases deployment diffculty and time thus decreases cost.

• 9 10/100 Base-TX RJ45 ports
• Up to 8 ports of IEEE 802.3af/802.3at devices powered
• 58-watt PoE budget
• Each port supports 51V DC power to PoE Powered Device
• 6KV lightning protection,
• Extend Ethernet mode with 250 m transmission distance
• Plug and play design,no configuration required
