TELEVES FM Antenna CIRCULAR 1dB

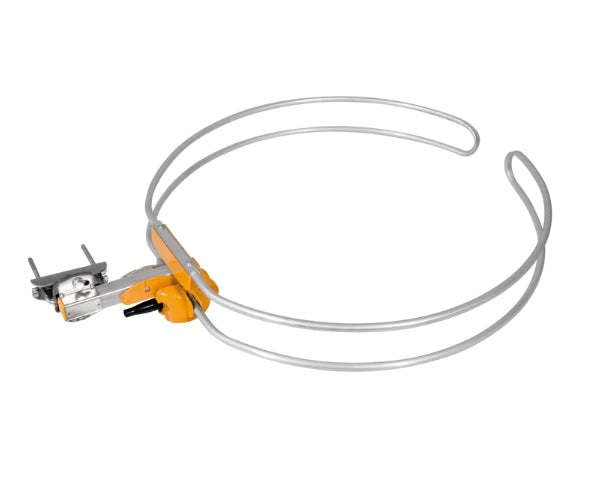

This antenna is a folded dipole in a circular structure.

Technical features:

•  Compact model
•  Suitable for omnidirectional reception
•  For areas with strong signal
•  Made of alluminium for long life
•  The connection box includes the balun between the dipole and the coaxial cable.
•  With F-type connector.
•  For masts up to Ψ 60mm.
•  Band: FM
•  Gain: dB1
•  F/B ratio: 0
•  Length mm: 500
•  Wind load” 800 N/m2 :N 27 , 1100 N/m2: N 37
•  Wind pressure N/m2 800 1100
•  Wind speed Km/h 130 150
