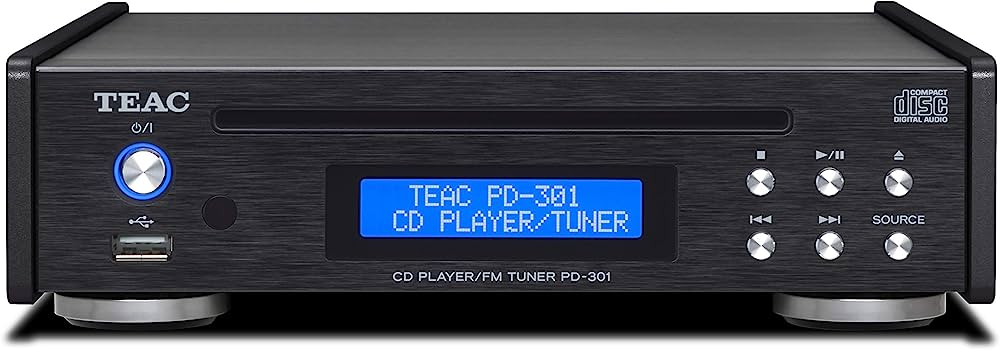

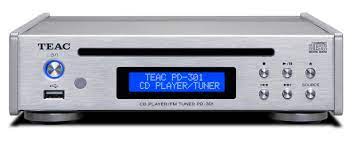

TEAC PD-301DAB-X CD-Player und DAB/FM-Tuner

Description

Teac PD-301DAB-X (PD301DABX)

The PD-301DAB-X is a combination product in the Reference 301 range, comprising a CD player, USB memory player and FM tuner, and provides a versatile digital media gateway for your existing desk- top audio system.

Thanks to its painstakingly developed circuit design, the PD-301DAB-X delivers superb analogue audio sound to your amplifier, while the coaxial and optical outputs deliver digital audio signals to your favourite DAC (digital to analogue converter), not only from CD and USB memory sticks but also from the DAB/FM tuner.

Thanks to its low-profile and small footprint design, the PD-301DAB-X greatly expands the flexibility of your desktop audio system.

Main features:

• Slot-load CD player supporting CD-DA, CD-ROM, CD-R and CD-RW discs
• High performance BurrBrown PCM5142 32-bit D/A converter
• Sleek, small footprint design
• Built-in DAB/FM Tuner with 10 x DAB + 20 x FM station presets
• Automatic CD Playback (can be disabled)
• MP3, WMA playback from CD-ROM, CD-R and CD-RW
• MP3, WMA, AAC, WAV playback from USB flash drive
• Program playback (CD-DA only)
• Shuffle and Repeat playback
• Song title and artist name display (ID3 tag required)
• Selectable Folder/File browse modes
• USB Port for USB flash drive (USB A-type)

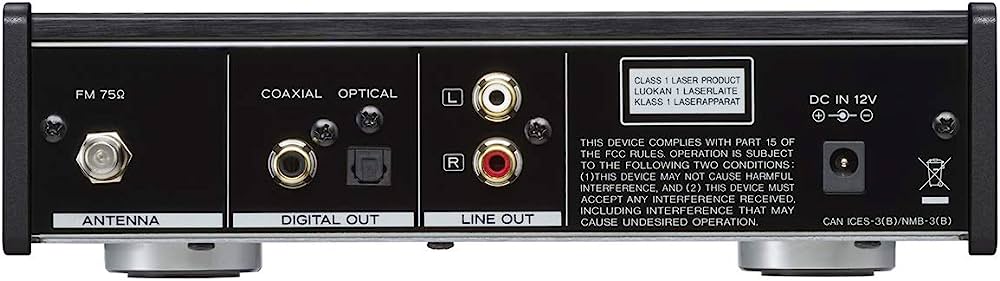

• Coaxial and optical digital audio outputs
• Analogue LINE audio output via RCA Pin
• Card-type Remote Control
• Full-metal body
• Auto power-saving (can be disabled)
• RoHS compliant


  Specifications

  Drive formats:	CD-R CD-RW CD-ROM CD-DA
  AUDIO SECTION:	------
  DAC Converter:	BurrBrown PCM5142
  MULTIMEDIA FUNCTIONALITY:	------
  USB Input (mass storage mode):	Hard drive FAT16/32
  Optical outputs:	1
  Coaxial outputs:	1
  2xRCA line outputs:	1
  Headphone output:	No
  Trigger:	NO
  Other connectors:	USB
  OTHERS:	Built-in DAB/FM Tuner
  ::	Full-metal body
  ::	odtwarzanie plików MP3, WMA, AAC, WAV
  Remote:	YES
  Power consumption:	8W
  Height:	61mm
  Width:	215mm
  Depth:	238mm
  Weight:	2.1kg (4.6 lbs.)
  Warranty:	24 months
  DAC:	Burr-Brown TI PCM5142
