Spec description
Deck section
| Tracking system | 4-track, 2-channel Stereo |
| Head configuration | |
| REC/PLAY head | one each for TAPE1 and TAPE2 |
| ERASE head | one each for TAPE1 and TAPE2 |
| Tape speed | 4.8cm/sec. |
| Pitch control | ±12% (TAPE1 PLAYBACK only) |
| Fast rewinding time | approximately 120 seconds (C-60 tape) |
| Wow and flutter | 0.25% (W.RMS) |
| Frequency response | |
| Chrome tape (Type II) | 30 to 15k Hz（±4dB） |
| Normal tape (Type I) | 30 to 13k Hz（±4dB） |
| Total S/N ratio | 59dB (at max recording level input, A-weight) |

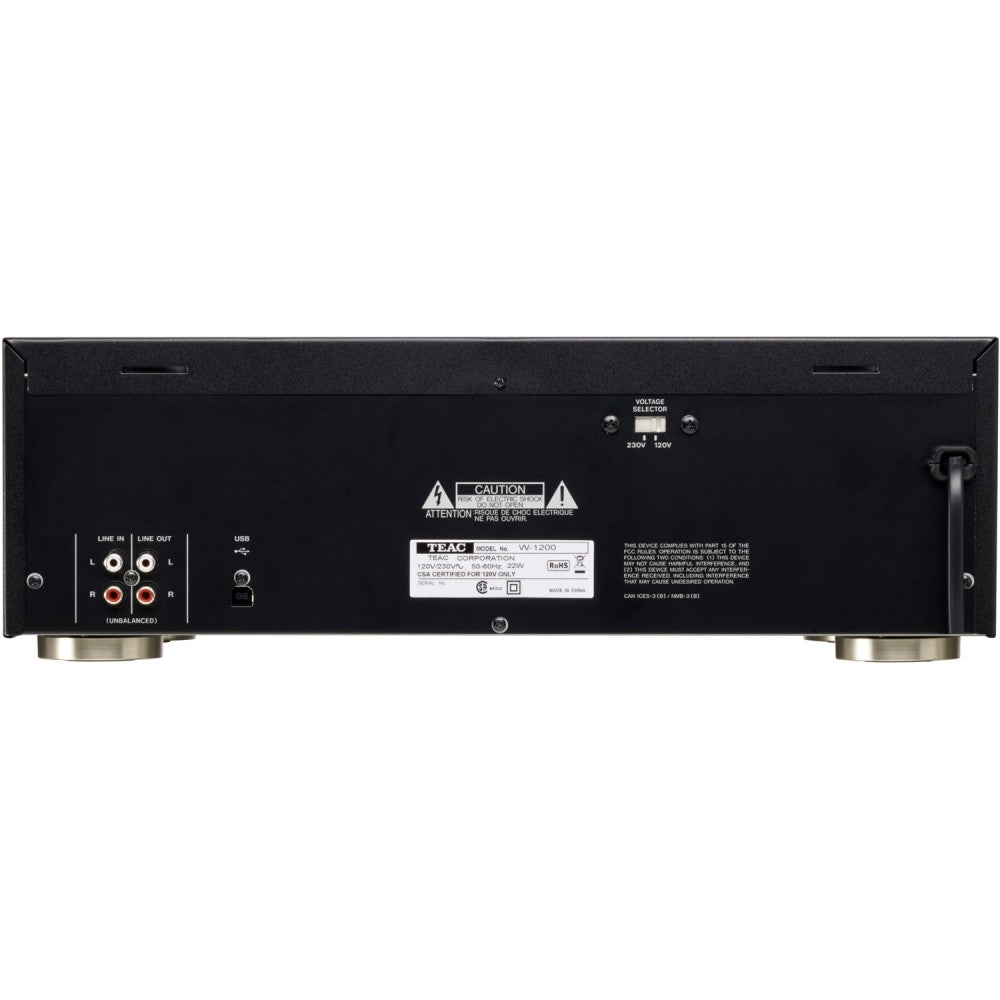

Input/Output
| Analog audio input | |
| Connectors | RCA × 1 pair |
| Nominal input level | 0.28V |
| Input impedance | 33k ohms |
| Mic input | |
| Connector | Standard 6.3mm (1/4") stereo jack |
| Nominal input level | 0.38mV |
| Input impedance | 3k ohms or more |
| Analogue audio output | |
| Connector | RCA × 1 pair |
| Nominal output level | 0.46V |
| Output impedance | 1k ohms |
| Headphone output | |
| Connector | Standard 6.3mm (1/4") stereo jack |
| Output power | 15mW (at 32 ohms loaded) |
| USB digital output | |
| Connector | USB Type-B |
| Protocol | USB2.0 FULL SPEED |
| Sampling frequency | 8k / 11.025k / 16k / 22.05k / 32k / 44.1k / 48k Hz |
| Bit-depth | 8 / 16bit |
General
| Operating power | |
| AC 120V, 60Hz | |
| AC 230V 50Hz | |
| Power consumption | 22W |
| Dimensions | 17.1"(W) × 5.7"(H) × 11.3"(D) / 435(W) × 145(H) × 285.8(D)mm |
| Weight | |
| US / Canada | 9.3lbs. / 4.2kg |
| UK / Europe | 10.2lbs. / 4.6kg |
| Accessories | Remote control (RC-1331), AA batteries × 2, RCA audio cable, Owner's Manual (including Warranty) |
