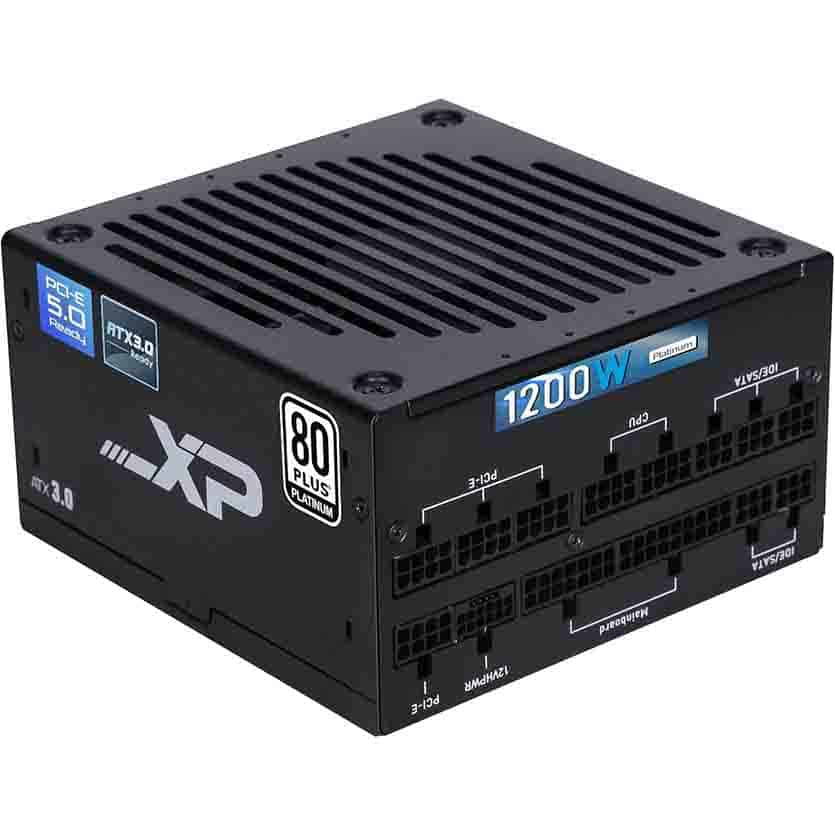

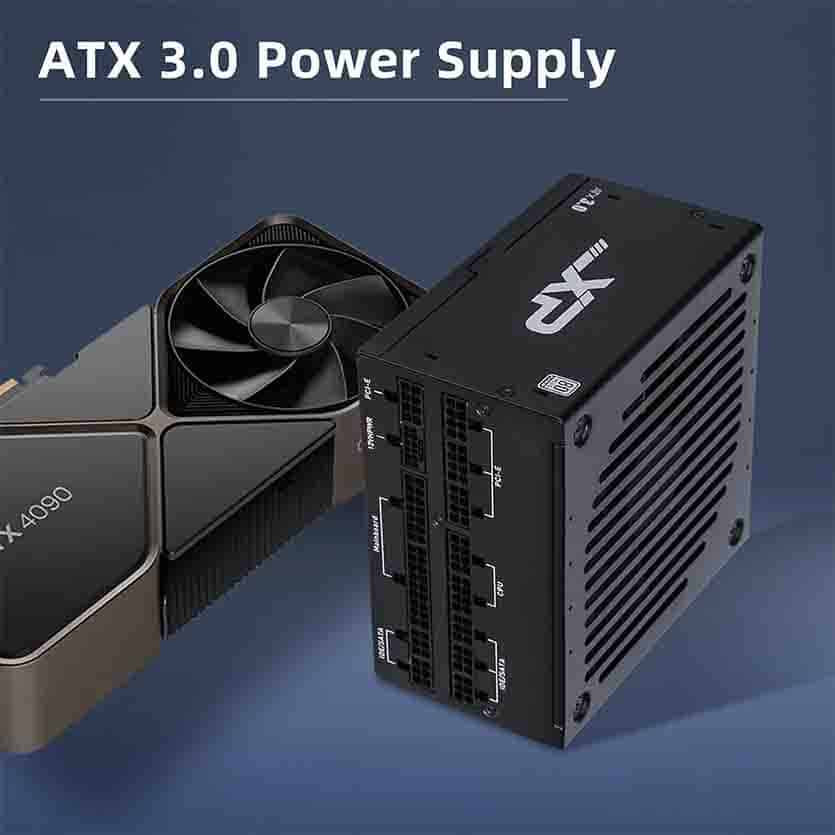

SAMA XPH‑1200W ATX 3.0 PLATINUM POWER SUPPLY

Description

XPH‑1200W ATX 3.0 PLATINUM POWER SUPPLY SAMA

Wattage: 1200 W
Standard: Intel ATX 3.0
Certification: 80 PLUS Platinum, CE, CB, TUV, cTUVus, FCC, RoHS
Input Voltage: 100–240 VAC
Input Frequency: 50–60 Hz
Active PFC: Yes (auto full‑range voltage detection)
+3.3 V Rail Max Current: 20 A
+5 V Rail Max Current: 20 A
Combined +3.3 V +5 V Output: 100 W
+12 V Rail Max Current: 100 A (1200 W)
–12 V Rail: 0.4 A (4.8 W)
+5 VSB: 2.5 A (15 W)
PCIe 5.0 12VHPWR Connector: supported
Fan: 140 mm ECO intelligent fluid‑dynamic‑bearing (FDB) fan
Efficiency: ~90% @20%, ~92% @50%, ~89% @100% load
Capacitors: 100% Japanese 105 °C capacitors
Protections: OVP, OCP, OPP, SCP, UVP, OTP, No‑load, Surge & Inrush
Modular: Fully modular ribbon cables
