Reolink WIFI Outdoor PTZ Camera 5MP 3x Optical Zoom E1 Outdoor (E540)

• Type: Outdoor
• Battery Powered: No
• Resolution: 5MP
• Lens Type: PTZ
• Spotlight: Yes
• AI: Human Detection,Vehicle Detection
• Smart Tracking: Yes
• Two-Way Audio: Yes
• Capacity: Up to 256GB SD

Description

Smart 5MP PTZ WiFi Camera with Motion Spotlights

• Person/Vehicle/Pet Detection
• Pan & Tilt with 3X Zoom
• Color Night Vision
• Auto Tracking

Details

Video & Audio

• Image Sensor : 1/2.7" CMOS Sensor
• Video Resolution : Default: 2560 x 1920 (5.0 megapixels) at 20 frames/sec
• Lens : f=2.8 - 8mm F=1.6, with IR cut
• Zoom : 3X optical zoom
• Video Format : H.264
• Field of View : • Horizontal: 48°- 90° /  Vertical: 37°- 68° /
• Pan/Tilt Angle : • Horizontal: 355° /  Vertical: 50° /
• Day & Night : IR-cut filter with auto-switching
•  Infrared Night Vision : Up to 12 meters (LED: 12pcs/14mil/850nm)
• Color Night Vision : Spotlights: 4pcs/2.7W/6500K
• Audio : Two-Way Audio

Interface

• Power : DC power port : DC 12.0V⎓1A, <12W
• System : Reset button
• Ethernet : One 10M/100Mbps RJ45
• Storage : Micro SD card slot (Max. 256GB)
• Audio : Built-in microphone and speaker

Software Features

• Frame Rate :  Mainstream: 2fps - 25fps (default: 20fps) / Substream: 4fps - 15fps (default: 10fps)
• Code Rate :  Mainstream: 1024Kbps - 8192Kbps (default: 4096Kbps) / Substream: 64Kbps - 512Kbps (default: 256Kbps)
• Browsers Supported : Edge, Chrome, Firefox, Safari
• OS Supported : PC: Windows, Mac OS; Smartphone: iOS, Android
• Smart Alarm : Motion detection/person detection/vehicle detection
• Record Mode : Motion recording (default); scheduled recording; 24/7 recording
• Protocols & Standards : HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P, FTP
• Maximal User Access : 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
• Work with : Google Assistant/Reolink Cloud (available in some countries)

Wireless Standard

• Wi-Fi : IEEE 802.11a/b/g/n
• Operating Frequency : 2.4GHz/5GHz
• Wireless Security : WPA-PSK/WPA2-PSK

Working Environment

• Temperature :  -10°C~+55°C
• Humidity :Operating humidity: 20% ~ 85%

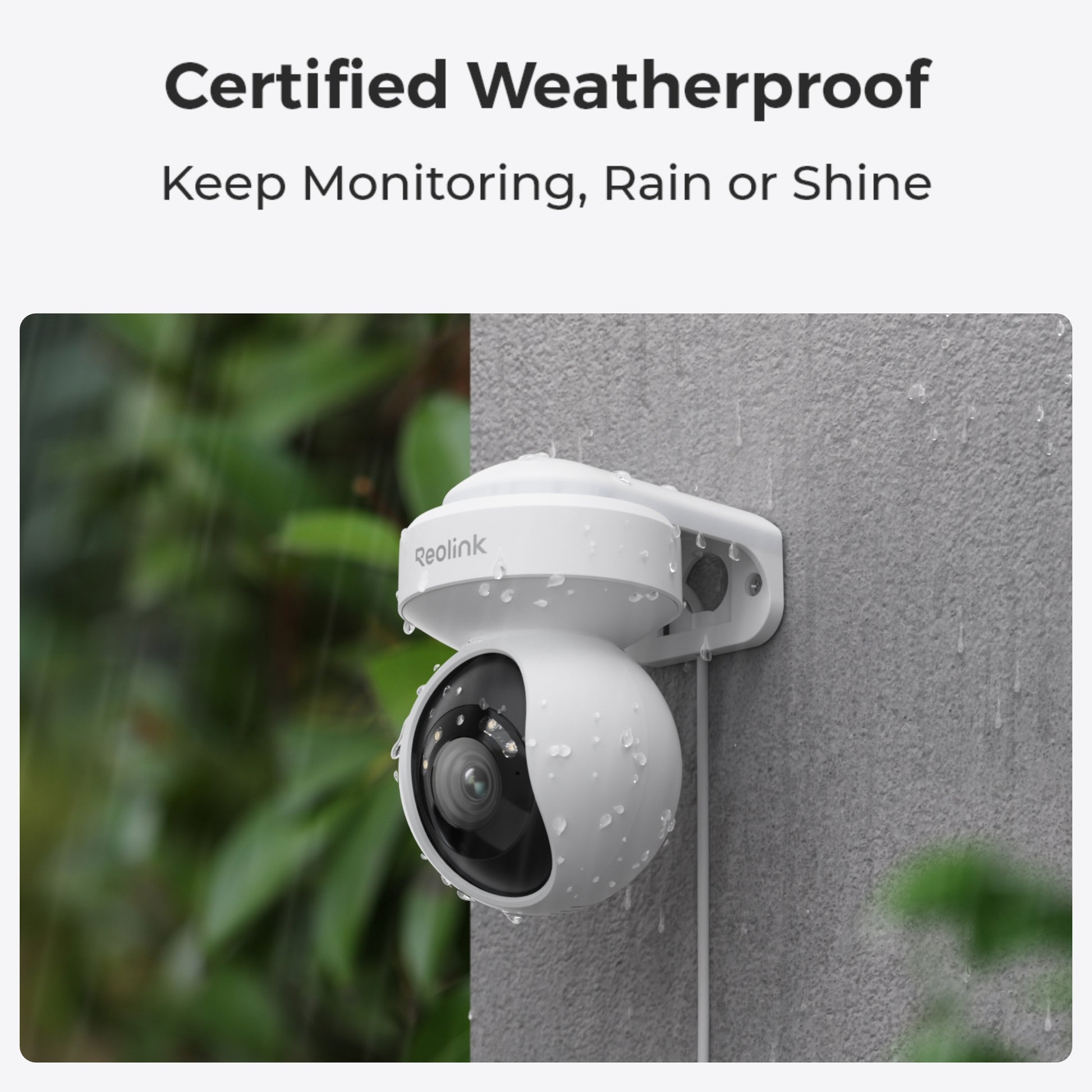

• Waterproof : Support

Size & Weight

• Dimension : Φ85×118mm
• Weight : 380g
