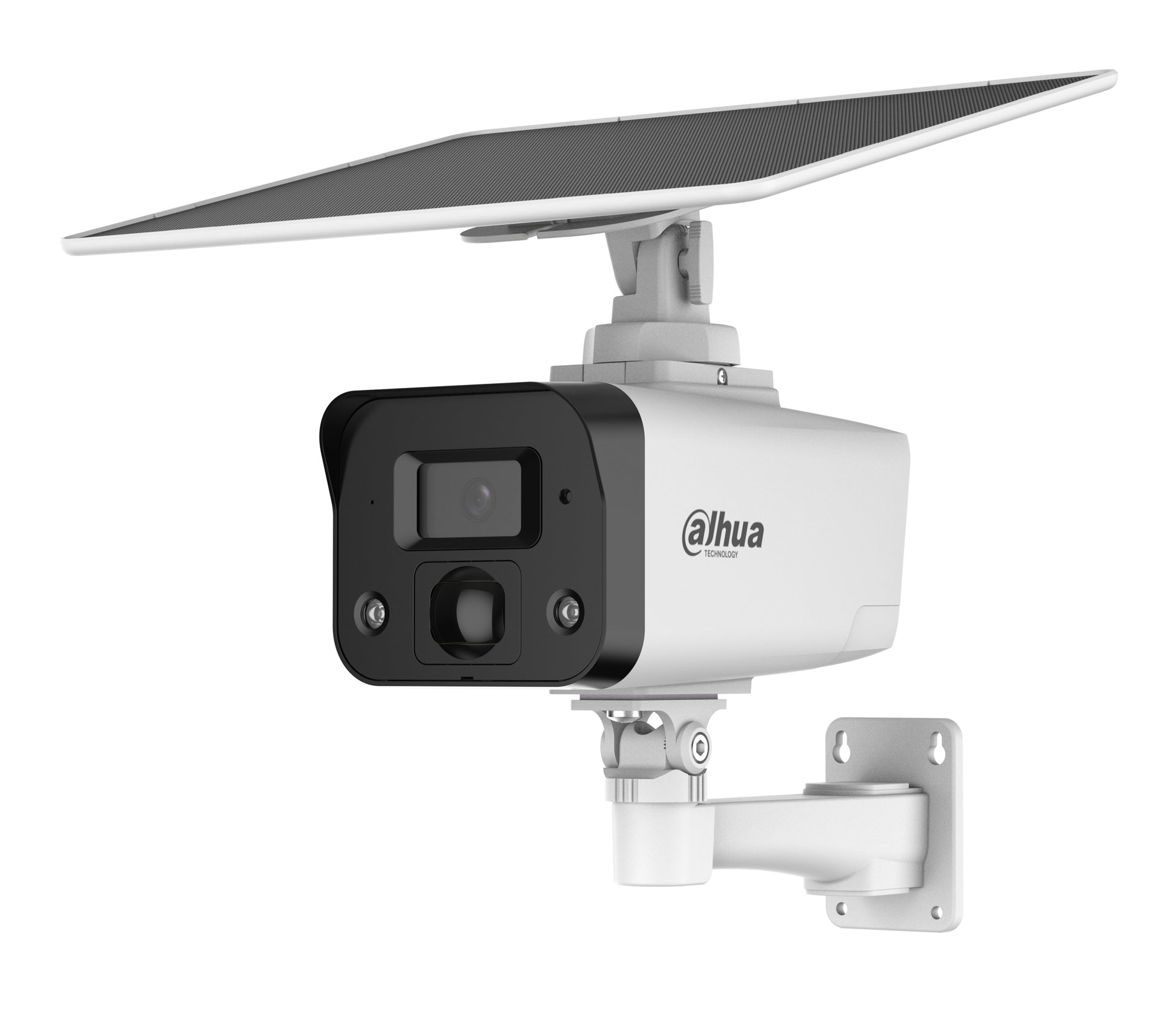

Dahua HFW244IDG-4G-SP-B-0360B - IP 4.0MP 4G 3.6mm Solar Power Network PT Camera

• Type: Outdoor
• Battery Powered: Yes
• Solar Powered: Yes
• 4G: Yes
• Resolution: 4MP
• Lens Type: Fixed Lens
• Spotlight: Yes
• AI: Human Detection,Vehicle Detection
• Battery Size: 10000mAh
• Siren: Yes
• Two-Way Audio: Yes
• Capacity: Up to 512GB SD

Description

• 4-MP 1/3" CMOS image sensor, low luminance, and high definition image
• Outputs max. 4 MP (2560 × 1440) @15 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 20 m
• Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked
• Built-in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks
• Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature
• In AOV mode, the camera wakes up when a person or vehicle appears, providing 24/7 surveillance while maintaining ultra-low power consumption
• Supports max. 512 G Micro SD card; built-in Mic and speaker; supports two-way talk
• The solar panel offers both integrated and detachable designs, and supports multi-dimensional angle adjustment
• It features a built-in 64Wh high-capacity lithium iron phosphate battery with stable performance
• It supports both 12 VDC and Type-C power supply options, used respectively for connecting an external solar panel and for temporary charging with a power bank.
• IP67 protection
• SMD

Details

Camera

• Image Sensor : 1/3" CMOS
• Max. Resolution : 2560 (H) × 1440 (V)
• ROM : 128 MB
• RAM : 128 MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination : 0.01 lux@F1.6 (Color, 30 IRE) / 0.001 lux@F1.6 (B/W, 30 IRE) / 0 lux (Illuminator on)
• S/N Ratio : >40 dB
• Illumination Distance : 3.6 mm: Up to 30 m (IR) / Up to 20 m (Warm light)
• Illuminator On/Off Control : Auto;Manual
• Illuminator Number : 1 (IR LED); 1 (Warm light)

Lens

• Lens Type : Fixed-focal
• Lens Mount : M12
• Focal Length : 3.6 mm
• Max. Aperture : F1.6
• Field of View : 3.6 mm: H: 78.4°; V: 42.4°; D: 92.4°
• Iris Control : Fixed
• Close Focus Distance : 3.6 mm: 1.5 m

Intelligence

• Intelligence Notes : SMD

Video

• Video Compression : H.265
• Video Frame Rate : Main stream: 2560 × 1440@(1–15 fpss / sub stream: 640 × 360@(1–15 fps)
• The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Streaming Capability : 2 streams
• Resolution : 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Video Bit Rate : H.265: 32 kbps–4096 kbps
• Day/Night : Auto(ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : DWDR
• White Balance : Auto
• Gain Control : Auto
• Noise Reduction : 3D NR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Smart Dual Light : Yes
• Privacy Masking : 4 areas

Audio

• Built-in MIC
• Built-in Speaker
• Audio Compression : G.711a

Alarm

• Alarm Event : SD card error; SD card full; motion detection; PIR alarm; low battery alarm

Network

• Network Port : RJ-45 (10/100 Base-T)
• Carrier Network System : FDD-LTE: B1/B3/B5/B7/B8/B20/B28;
• Applicable regions : Europe, Middle East, Africa
• Power class 3: 23dBm ±2.7dB
• SDK and API : Yes
• Interoperability : P2P
• Storage : Micro SD card (support max. 512 GB)
• Management Software : DMSS; DSS Pro
• Mobile Client : iOS;Android

Certifications

• CE-LVD: EN62368-1
• CE-EMC: Electromagnetc Compatbility Directve 2014/30/EU
• CE-RED: Radio Equipment Directve 2014/53/EU

Port

• USB : 1 Type-C Port

Power

• Power Supply : 12 VDC
• Power Consumption : Ultra power saving mode: 0.036 W;
• Power saving mode : 0.047 W;
• AOV mode : 0.26 W;
• Performance mode : 1.33 W

Environment

• Operating Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : ≤95% (RH), non-condensing
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Storage Humidity : ≤95% (RH), non-condensing
• Protection : IP67

Structure

• Casing Material : Plastic
• Product Dimensions : 256 mm × 290 mm × 197 mm (L × W × H)
• Net Weight : 1357 g
• Gross Weight : 2869 g

Battery

• Operating Temperature : Charging: 0 °C to +50 °C / Discharging: –20 °C to +60 °C
• Net Weight : 550 g
• Battery Type : Lithium iron phosphate
• Battery Capacity : 64Wh
• Battery Voltage : 6.4 V
• Ultra power saving mode (no-trigger recording) : 76 days
• Power saving mode (30 daily alarms of under 15s each) : 56days
• AOV mode (30 daily alarms of under 15s each) : 10 days
• Performance mode (continuous recording) : 2 days
• Battery Life : More than 1,000 cycles
• Solar Module
• Operating Temperature : –40 °C to +60 °C
• Product Dimensions : 285 mm × 235 mm × 2.5 mm (L × W × H)
• Max. Power : 10.5 W
• Cell Type : Monocrystalline silicon
