0 in Stock. Available online!
-
- Type: Line Interactive
- Waveform: Simulated Sine Wave
- Output VA: 1000VA
- Output Watts: 600W
- Outlet Type: UK Socket
- Outlet Number: 6
- Surge Protected: Yes
- LCD Display: Yes
- USB/RS232: USB only
- USB Charging Port: Yes
- Management Software: Power Panel Personal
- RJ11/RJ45 Protection: Yes
- Overload Protection: Circuit Breaker
- Energy Saving: Yes
CyberPower BR1000ELCD offers home and office users a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPSâ„¢ Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems.
The UPS provides Automatic Voltage Regulation (AVR) to maintain a safe voltage for connected equipment. The featured data line protection protects phones, networks, and other communication equipment against surge/spikes and other power irregularities. Users can access precise information of critical power/battery conditions by switching to the LCD status monitor.
FEATURES
- Line-interactive UPS Topology
- Energy Saving Technology

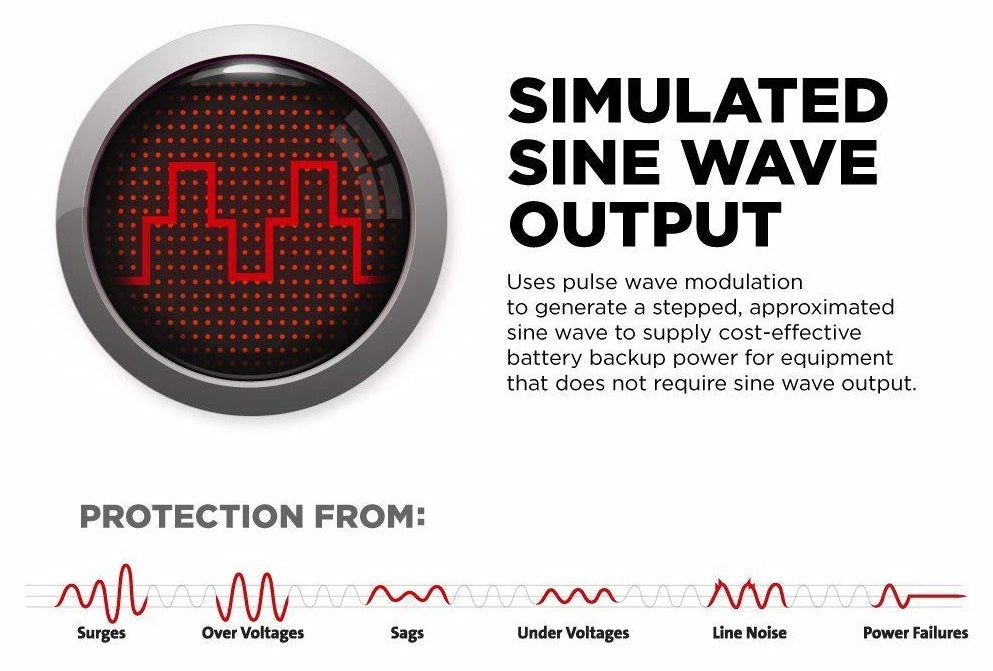

- Simulated Sine Wave Output
- Automatic Voltage Regulation (AVR)
- USB Charging Port
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- LCD Status Display
- Brick Form Factor
TYPICAL APPLICATION
- PCs & Workstations
- Computers & Laptops
- SOHO Networking Devices
- Phone/Fax/Modem
- Video/Audio Equipment
- NAS & Servers
- Home Theater Systems
- DVRs/Surveillance Systems
- POS Systems
- Home Desktop
- Home Office
- Office Desktop
- Back Office
To download the latest Power Panel software please visit the website below:
https://www.cyberpower.com/uk/en/product/sku/BR1000ELCD
GENERAL
UPS Topology:Â Line-interactive
Energy Saving Technology:Â GreenPower UPSâ„¢ Bypass Technology
Â
INPUT
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac):Â 165 ~ 290
Input Frequency (Hz): 50 ± 5, 60 ± 5
Input Frequency Detection:Â Auto-sensing
Rated Input Current (A):Â 4.55
Input Connector Type:Â UK
Â
OUTPUT
Capacity (VA):Â 1000
Capacity (Watts): 600
On Battery Waveform:Â Simulated Sine Wave
On Battery Voltage(s) (Vac): 230 ± 10%
On Battery Frequency (Hz): 50 ± 1%, 60 ± 1%
Automatic Voltage Regulation (AVR):Â Single Boost, Single Buck
Overload Protection:Â Circuit Breaker
Outlet(s) - Total: 6
Outlet Type:Â UK x 6Â
Outlet(s) - Battery & Surge Protected: 3
Outlet(s) - Surge-Only Protected: 3
USB Charging Port(s): 1
USB Charging Current (A): 1
Typical Transfer Time (ms): 4
Â
BATTERYÂ

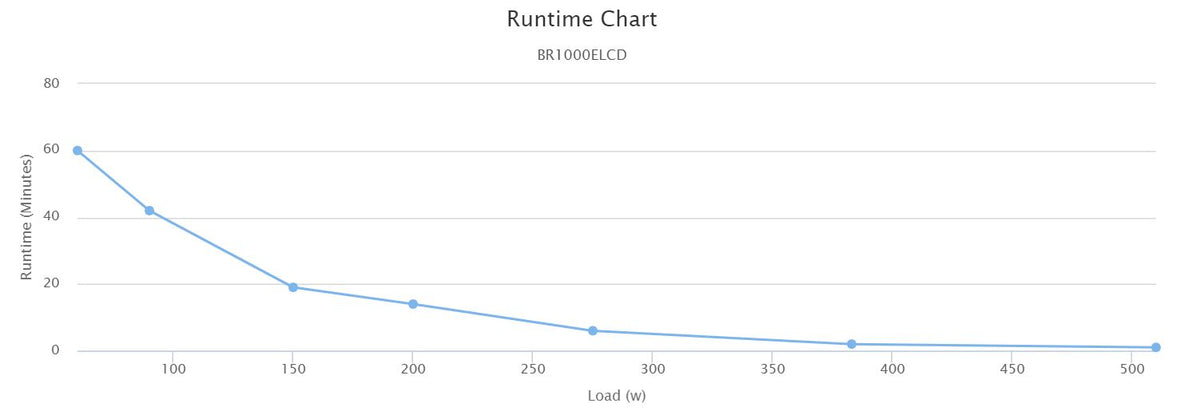

Runtime at Half Load (min): 6
Runtime at Full Load (min): 1
Typical Recharge Time (Hours): 8
Start On Battery:Â Yes
User-replaceable:Â Yes
Battery Type:Â Sealed Lead-acid
Replacement Battery Pack:Â RBP0117
RBP Quantity (pcs): 1
Â
SURGE PROTECTION & FILTERING
Surge Suppression (Joules):125
EMI/RFI Filtration:Â Yes
Phone/Network Protection RJ11/RJ45 (Combo):Â 1-in, 1-out
Â
MANAGEMENT & COMMUNICATIONS
LCD Panel:Â Yes
LCD Information Display:Â Power Status , Battery Status , Load Status , Other Information
LCD Setting & Control:Â Alarm Setting
LED Indicators:Â Power On , Line Mode , Battery Mode , Low Battery
HID Compliant USB Port(s): 1
Audible Alarms:Â Battery Mode , Low Battery , Overload , UPS Fault
Power Management Software: PowerPanel® Personal Edition
Â
PHYSICAL
Form Factor:Â Brick
Enclosure Construction:Â Plastic
Color:Â Black
Â
PHYSICAL SIZE - UPS MODULE
Dimensions (WxHxD) (mm.):Â 166 x 118 x 288
Weight (kg.): 6.5
Â
ENVIRONMENTAL
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) (%):Â 0 ~ 90
Operating Elevation (feet/meters):Â 0-10,000 feet (0-3,000 meters)
Storage Temperature (°C): -20 ~ 50
Storage Relative Humidity (Non-condensing) (%): 0 ~ 90
Online Thermal Dissipation (BTU/hr): 102
Â
CERTIFICATIONS
Certifications:Â CE
RoHS:Â Yes
