Features
| Channels |
2 |
| Current Feedback Topology |
Yes |
| Phono EQ: |
OP amp + FET input stage |
| HDAM version |
HDAM-SA3, SA2 |
| Power Transformer |
Toroidal |
| High Grade Audio Components |
Yes |
| Customised Components |
Yes |
| Symmetric PCB Layout |
Yes |
| Aluminium extrusion heat sink |
Yes |
| Tone Control: Bass / Treble / Balance |
Yes / Yes |
| Source Direct |
Yes |
| Pure Modes |
3 |

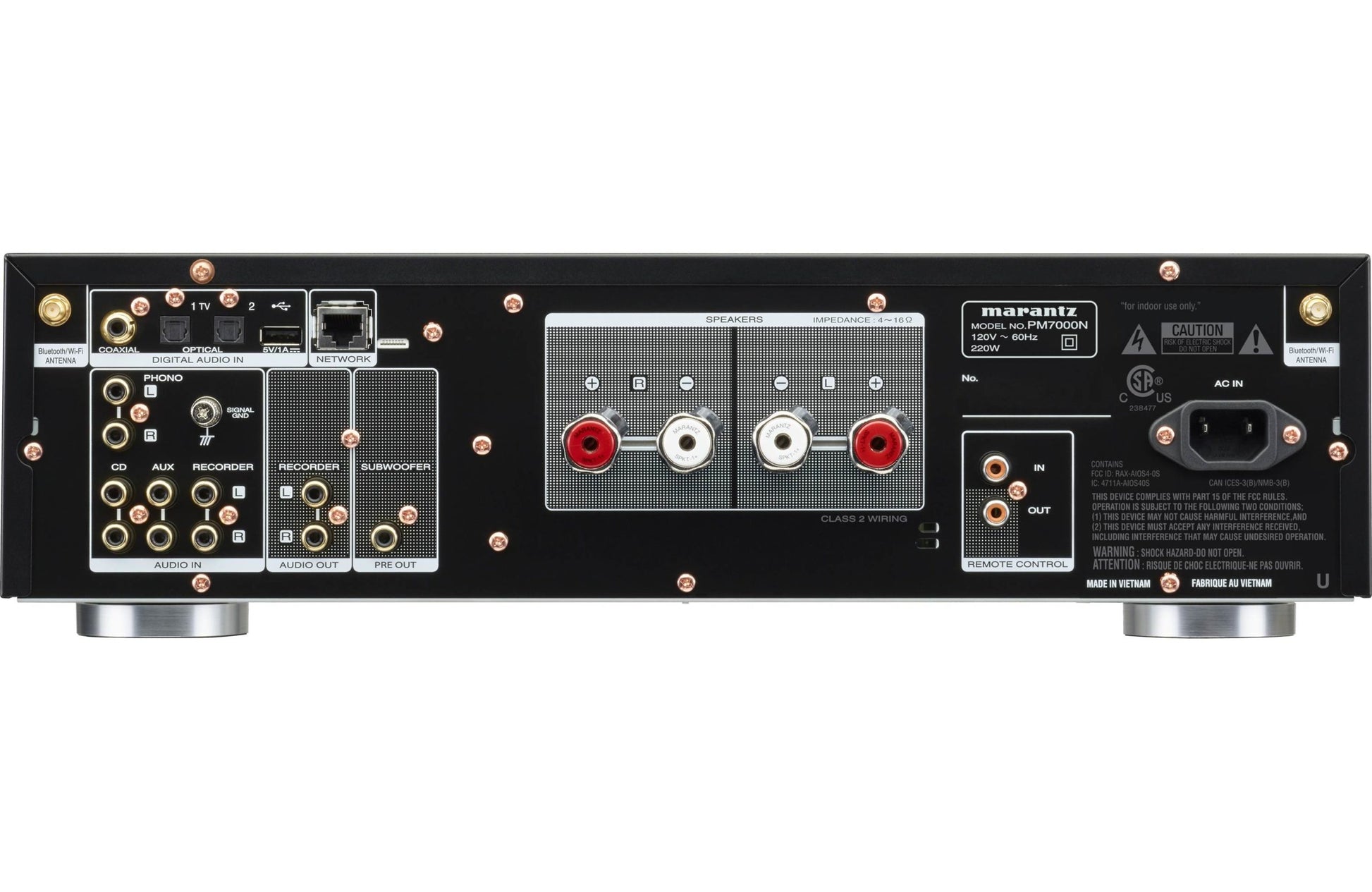

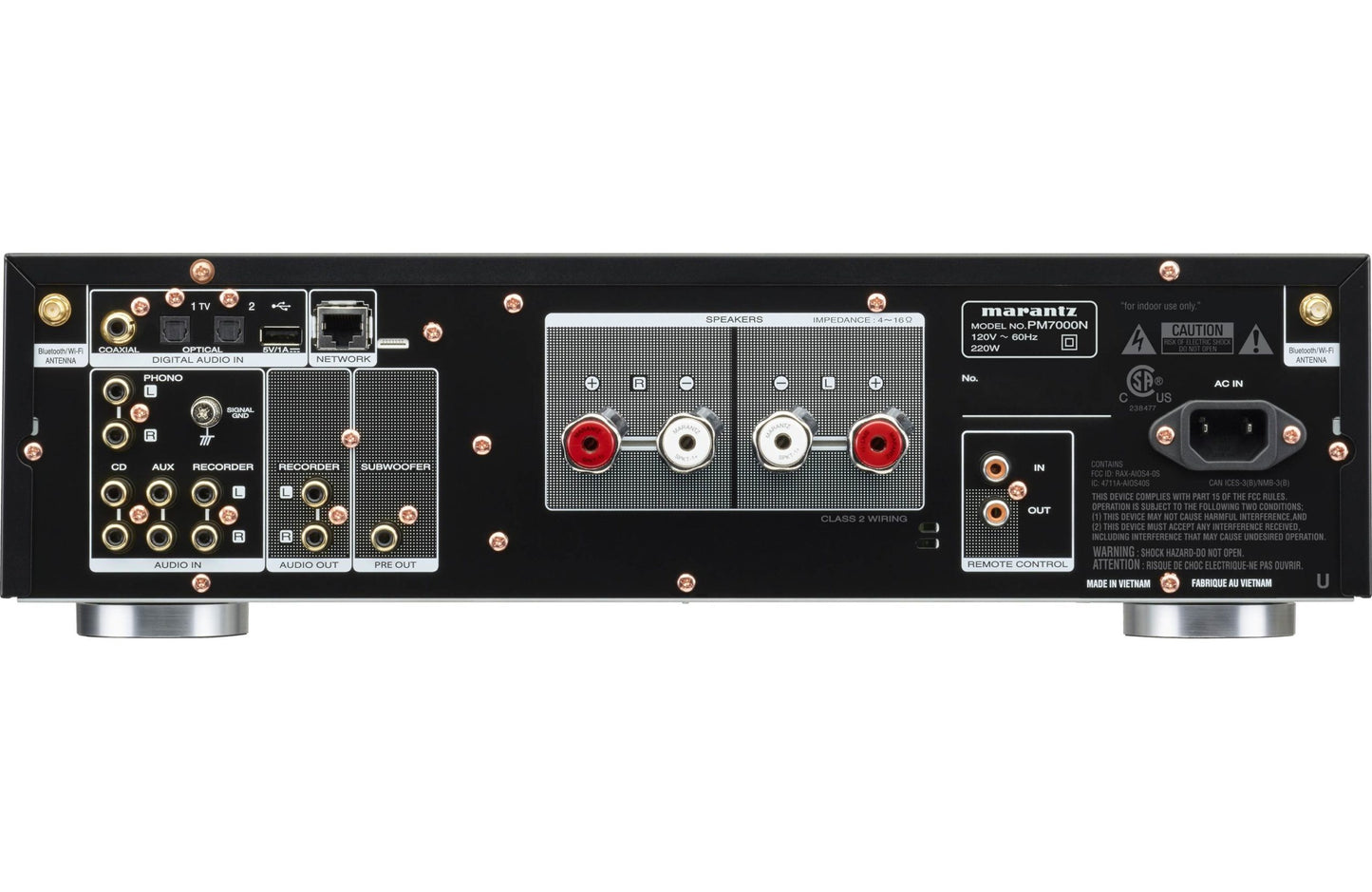

Inputs/Outputs
| Audio Inputs |
4 |
| Phono Input: MM |
Yes |
| Digital In: Optical / Coaxial |
2 / 1 |
| USB-A |
1 (rear) |
| Recorder out |
Yes |
| Pre-out |
Subwoofer |
| Power Amp Direct IN |
No |
| Gold Plated Cinch |
Yes |
| Speaker A / B |
No |
| Speaker Terminals |
Marantz SPKT-1+ |
| Number of terminals |
1 pair |
| Remote Control Bus in / out |
Yes |
| Headphone Out |
Yes (Front) |
Network
| HEOS Multi-room and Streaming / Network Audio Streaming |
Yes / Yes |
| Lossy formats: MP3 / WMA / AAC |
Yes / Yes / Yes |
| Lossless formats: FLAC / ALAC / WAV |
Yes / Yes / Yes |
| Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 |
Yes / Yes / Yes |
| DSD Audio Streaming |
up to DSD5.6 |
| Gapless Playback |
Yes (FLAC, WAV ,ALAC ,DSD) |
| AirPlay 2 Audio Streaming |
Yes |
| Internet radio |
Yes (TuneIn) |
| Spotify connect / Deezer / TIDAL / Napster / Pandora / SiriusXM |
Yes / Yes / Yes / Yes / Yes / Yes |
| Support for voice control: Alexa/Google assistant / Siri |
Yes / Yes / Yes |
| Compatible with Remote APP for Smart Phones |
HEOS |
| Ethernet / Wi-Fi |
Yes / Yes (dual antenna/ dual band) |
| Bluetooth |
Yes |
Specifications
| Power Output (8 / 4 Ohm RMS) |
60 W / 80 W |
| Frequency response |
5 Hz – 100 kHz ±3 dB |
| Total Harmonic Distortion |
0.02% |
| Damping Factor |
100 and over |
| Input Sensitivity: MM |
2.0 mV / 47 kΩ/kohms |
| Signal to Noise Ratio: MM |
87 dB (5 mV input, 1 W output) |
| Input Sensitivity: High level |
220 mV/18 kΩ |
| Signal to Noise Ratio: High level |
115 dB (2 V input, rated output) |
Others
| FL Display |
3 line OLED |
| GUI Languages |
English / French / Spanish |
| Setup Assistant |
Yes |
| Firmware Update by Network / USB |
Yes |
| Variable Cross Over |
Yes (40/60/80/100/120Hz) |
| Shield Case for Digital Circuit |
Yes |
| IR Learning for TV remote |
Yes |
| Auto Power On / Off |
Optical In 1 / Optical In 2 / Coaxial In (Default: OFF) |
| Sleep / Timer |
Yes |
General
| Available Colors |
SG / BK |
| Metal Front Panel |
Yes |
| Power Consumption |
220W |
| Network Standby Consumption in W |
4.7 |
| Standby Consumption |
0.4W |
| Detachable Power Cable |
Yes |
| Remote Control |
Yes |
| System Remote Function |
Yes |
| Maximum Dimensions (W x D x H) |
440 x 125 x 379 mm *excluding antennas |
| Weight |
10.8kg |
