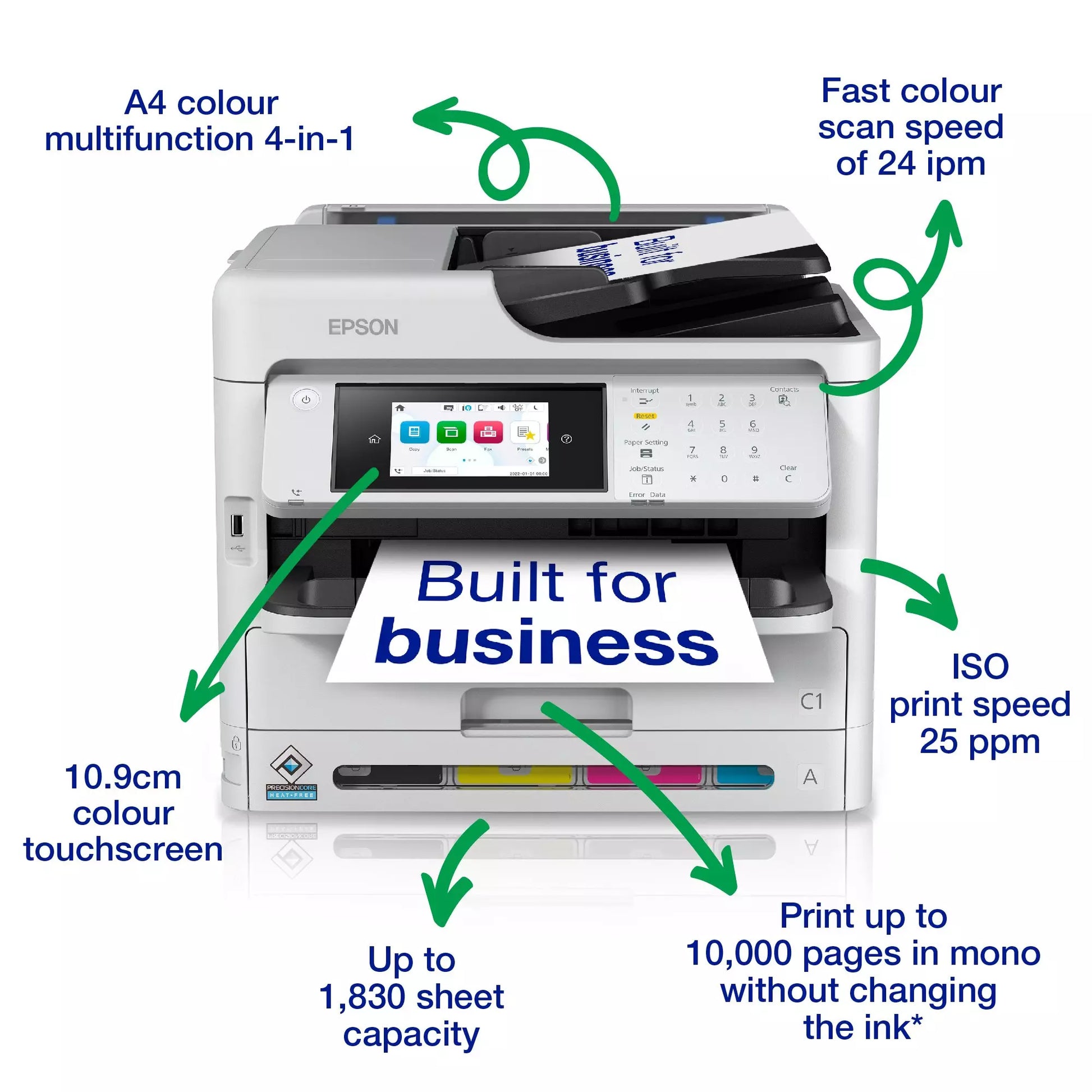

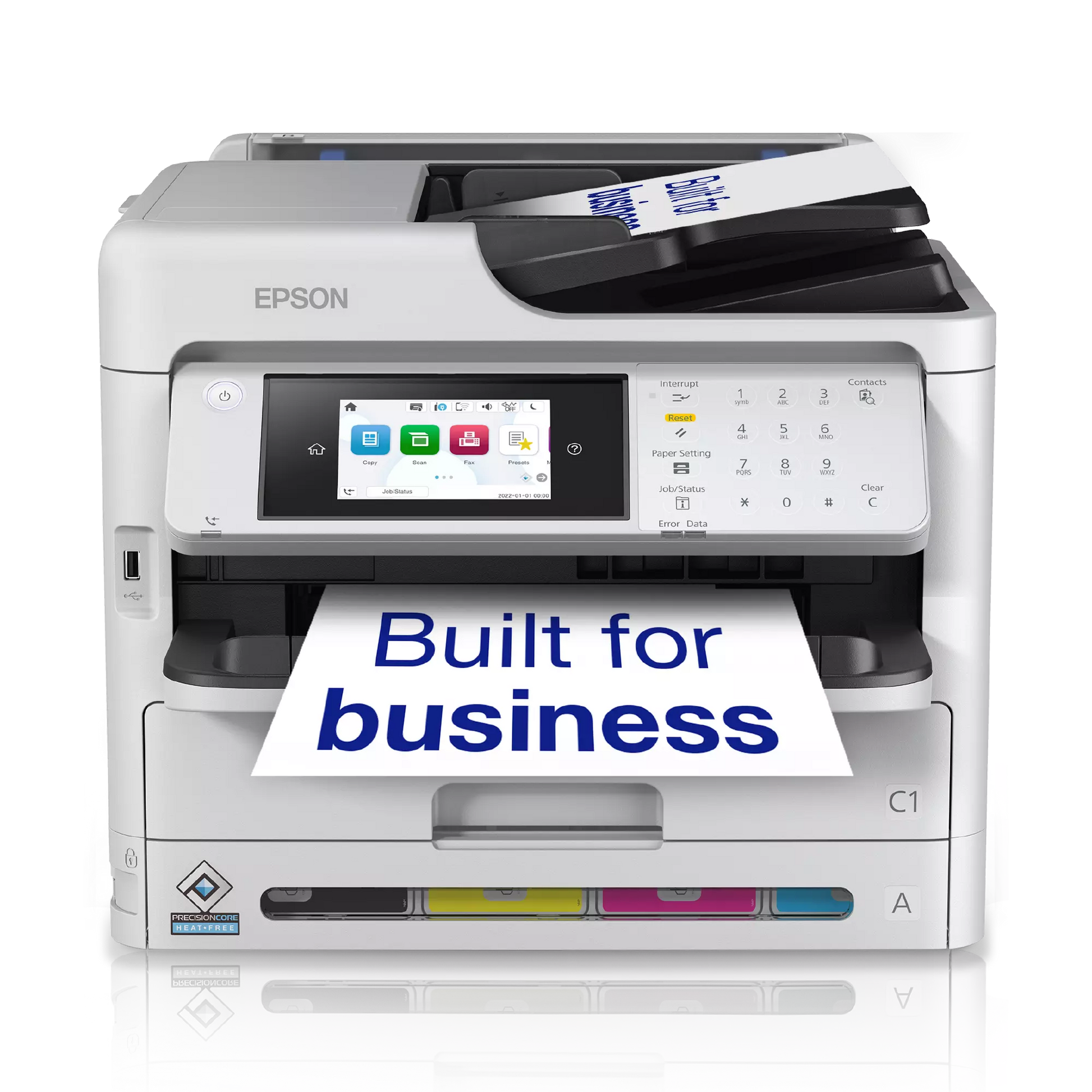

Small workgroup printer
- Sustainable Low power consumption and fewer supplies
- Save money Fewer replacement parts and low TCO

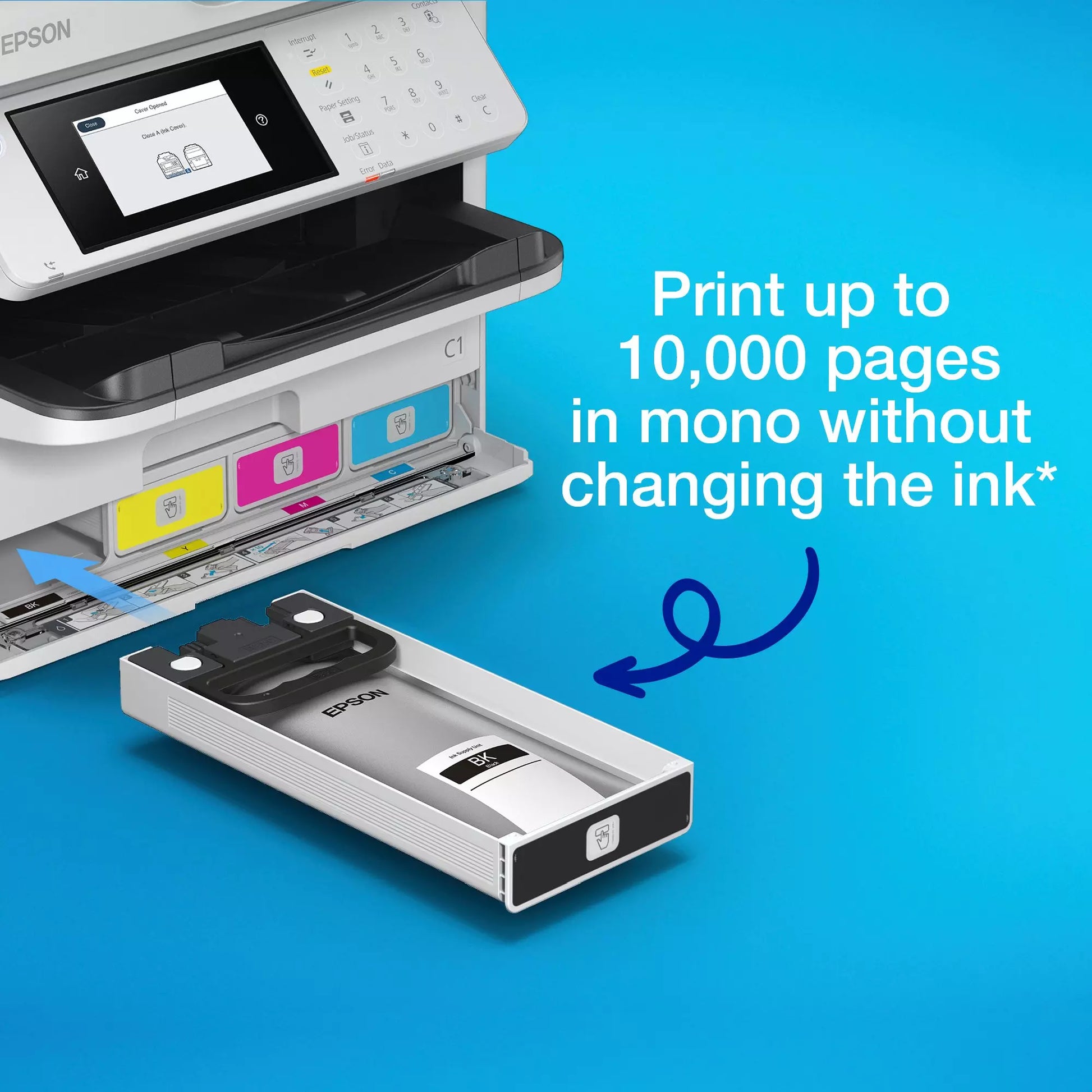

- High productivity, low intervention Reliable printing with high-ink-yield supplies and great paper capacity
- Built for business DuraBrite Ultra pigment inks
Specifications
Tech Specs
Technology
Printing Method-PrecisionCore™ Print Head
Nozzle Configuration-800 Nozzles Black, 800 Nozzles per Color
Minimum Droplet Size-3,8 pl, With Variable-Sized Droplet Technology
Ink Technology-DURABrite™ Ultra
Category-Office Workgroup
All-in-One Functions-Print, Scan, Copy, Fax
Number of colours-4 colour
First Page Out-Monochrome 4,8 Seconds, Colour 5,3 Seconds

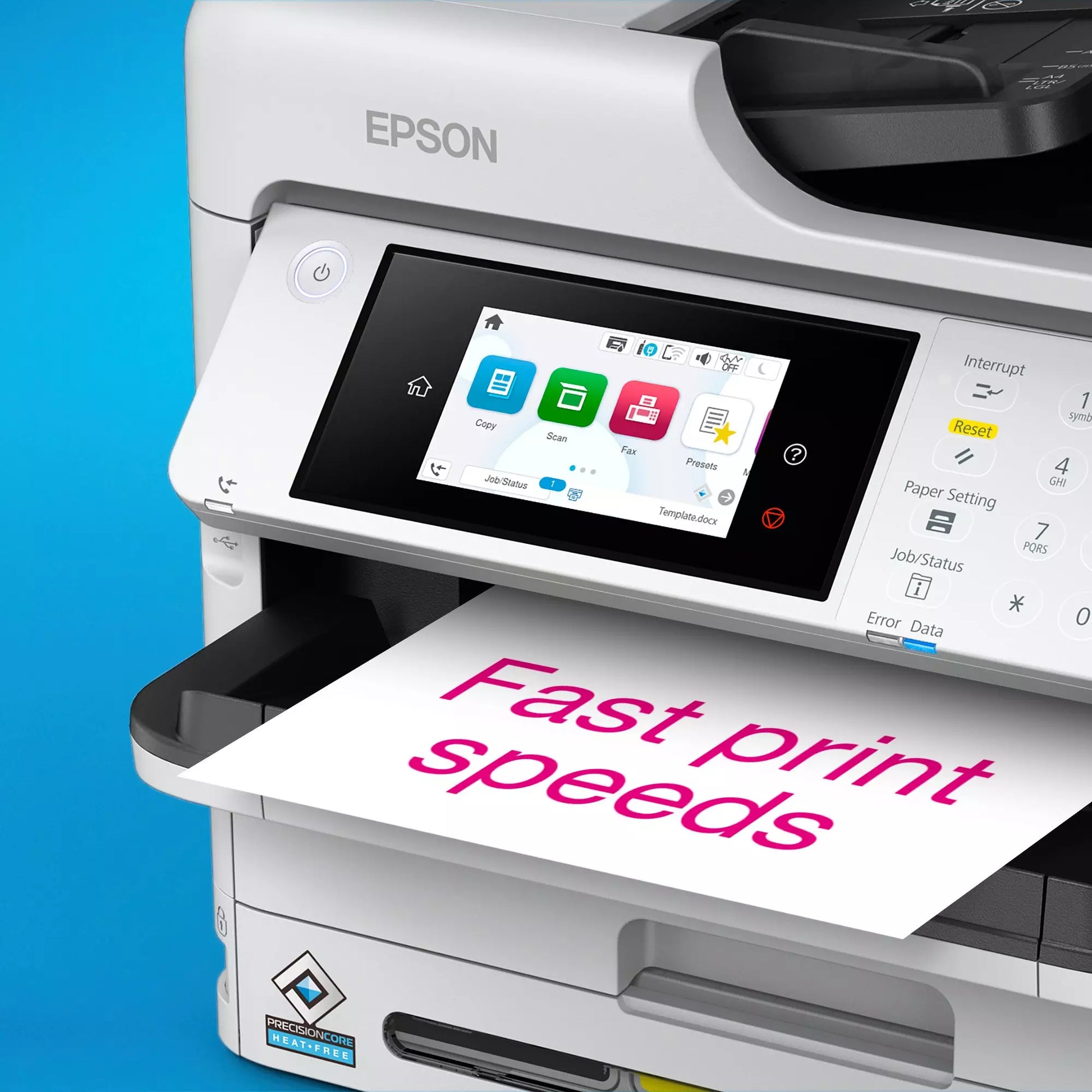

Printing Speed ISO/IEC 24734-25 pages/min Monochrome, 25 pages/min Colour
Duplex Printing Speed ISO/IEC 24734-16 A4 Pages/min Monochrome, 16 A4 Pages/min Colour
Printing Speed-34 pages/min Monochrome (plain paper 75 g/m²), 34 pages/min Colour (plain paper 75 g/m²)
Printing Resolution-4.800 x 1.200 DPI
Printing Volume-75.000 pages per month
The maximum number of printed pages per month based on the performance capabilities of the printer, including ISO rated print speeds and paper handling capabilities.
Recommended Duty Cycle-250 - 5.000 pages per month
Scan

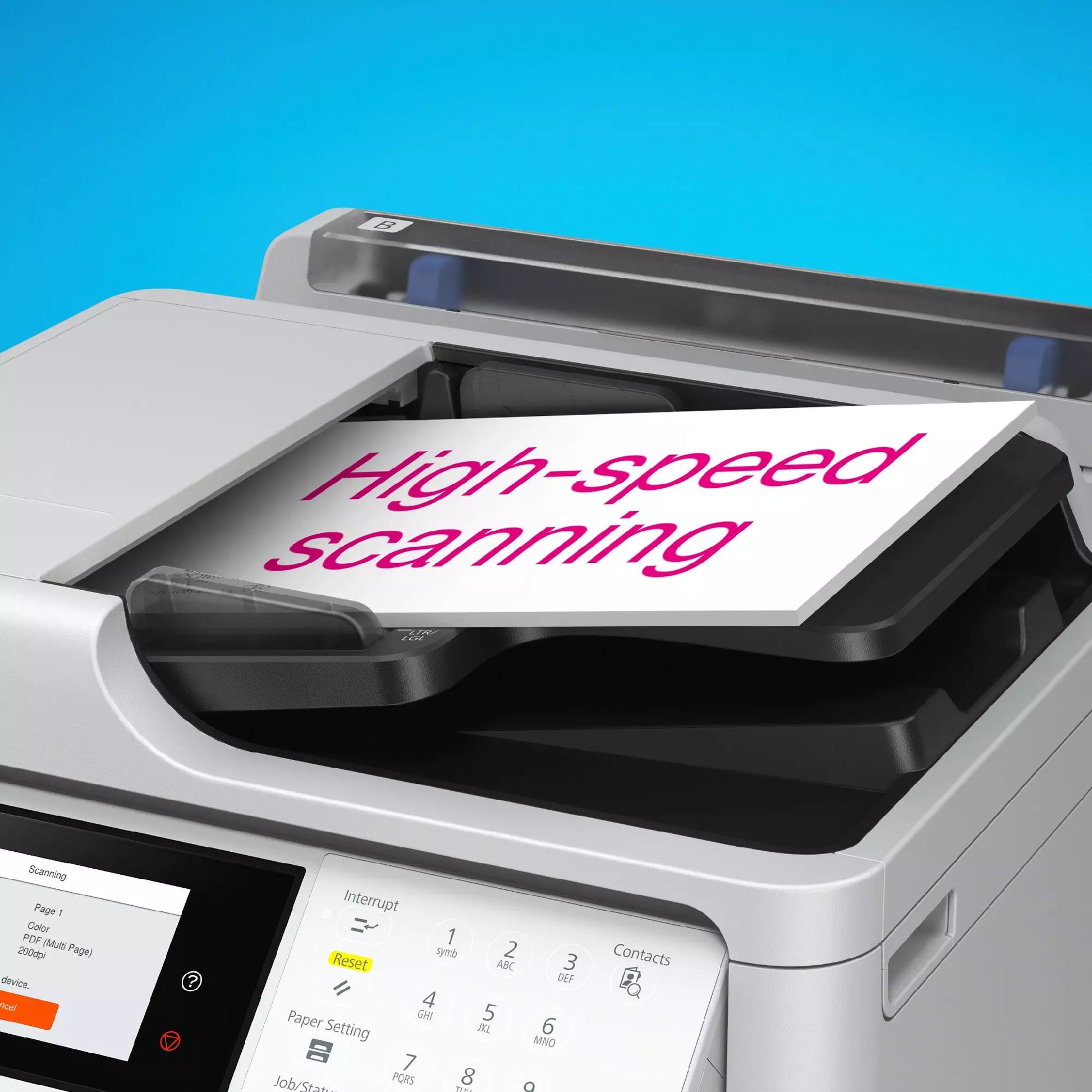

Scanning Speed-24 ipm ( Monochrome, Single-sided, 200 dpi, ADF ); 24 ipm ( Colour, Single-sided, 200 dpi, ADF ); 7,5 ipm ( Monochrome, Double-sided, 200 dpi, ADF ); 7,5 ipm ( Colour, Double-sided, 200 dpi, ADF ); 5 sec/page ( Monochrome, 200 dpi, Flatbed ); sec/page, dpi;
Optical Resolution-1.200 DPI x 2.400 DPI (Horizontal x Vertical)
Optical Resolution (ADF)-1.200 DPI (Horizontal x Vertical)
Advanced document integration-Scan to Email, Scan to FTP, Scan to Network folders, Computer (Epson Document Capture Pro), USB Memory Device / Card
Output formats-JPEG, TIFF, PDF
Scanner type-Contact image sensor (CIS)
Fax
Type of fax-Walk-up black and white and colour fax capability
Fax Transmission Speed-Up to 33.6kbps / Approx. 3 sec/page
Error correction mode-CCITU/ITU Group3 fax with Error Correction Mode
Fax speed dials (max)-200 names and numbers
Page memory-Up to 550 pages/ 6MB (ITU-T No. 1 chart)
Fax Functions-PC Fax, Fax to E-mail, Fax to Folder, Address Book, Delay Send, Broadcast Fax
Copy
Copy Speed-Up to 22 ipm Black, Up to 22 ipm Colour
*Simplex ADF 600 x 600 dpi (ISO/ IEC 24735)
Copy resolution (dpi)-600 x 1200
Reduction / Enlargement-25 % - 400 %
Maximum number of copies-999
Connectivity
Network Printing Protocols-LPR, FTP, IPP, LDP, Port 9100, WSD, Net BIOS over TCP/IP, WSD-Print, Bonjour/Airprint
Network Management Protocols-HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, SLP, WSD, LLTD, SMTP, POP3, IEEE 802.1X, ARP, GARP, ICMP, IGMP, DCHP, HTTPS, XMPP, LDAP, LDAPS, SNMP 1.0, SNMP 2.0c, SNMP 3.0, SNMP Trap
Network Scanning Protocols-NetBIOS over TCP/IP, WSD-Scan, Bonjour/Airprint, FTP
Interfaces-Wireless LAN IEEE 802.11b/g/n, Wi-Fi Direct, Hi-Speed USB - compatible with USB 2.0 specification, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), USB 2.0-A (2x)
WLAN Security-WEP 64 Bit, WEP 128 Bit, WPA PSK (AES), WPA2 PSK (AES), WPA3-SAE(AES)
Network Protocol-TCP/IPv4, TCP/IPv6, TCP, HTTP, IPv4, IPv6, IPSEC, SSL/TLS
Paper / Media Handling
Paper Formats-C4 (Envelope), Legal, A6 (10.5x14.8 cm), A5 (14.8x21.0 cm), B5, Letter, 9 x 13 cm, 10 x 15 cm, 13 x 18 cm, A4 (21.0x29.7 cm), B6, C5 (Envelope), No. 10 (Envelope), User defined, C6 (Envelope), DL (Envelope)
Automatic Document Feed-50 pages
Compatible Paper Weight-64 g/m² - 256 g/m²
Duplex-Yes
Standard Paper input-250 Sheets Standard, 80 Sheets MP tray
Output Tray Capacity-150 Sheets

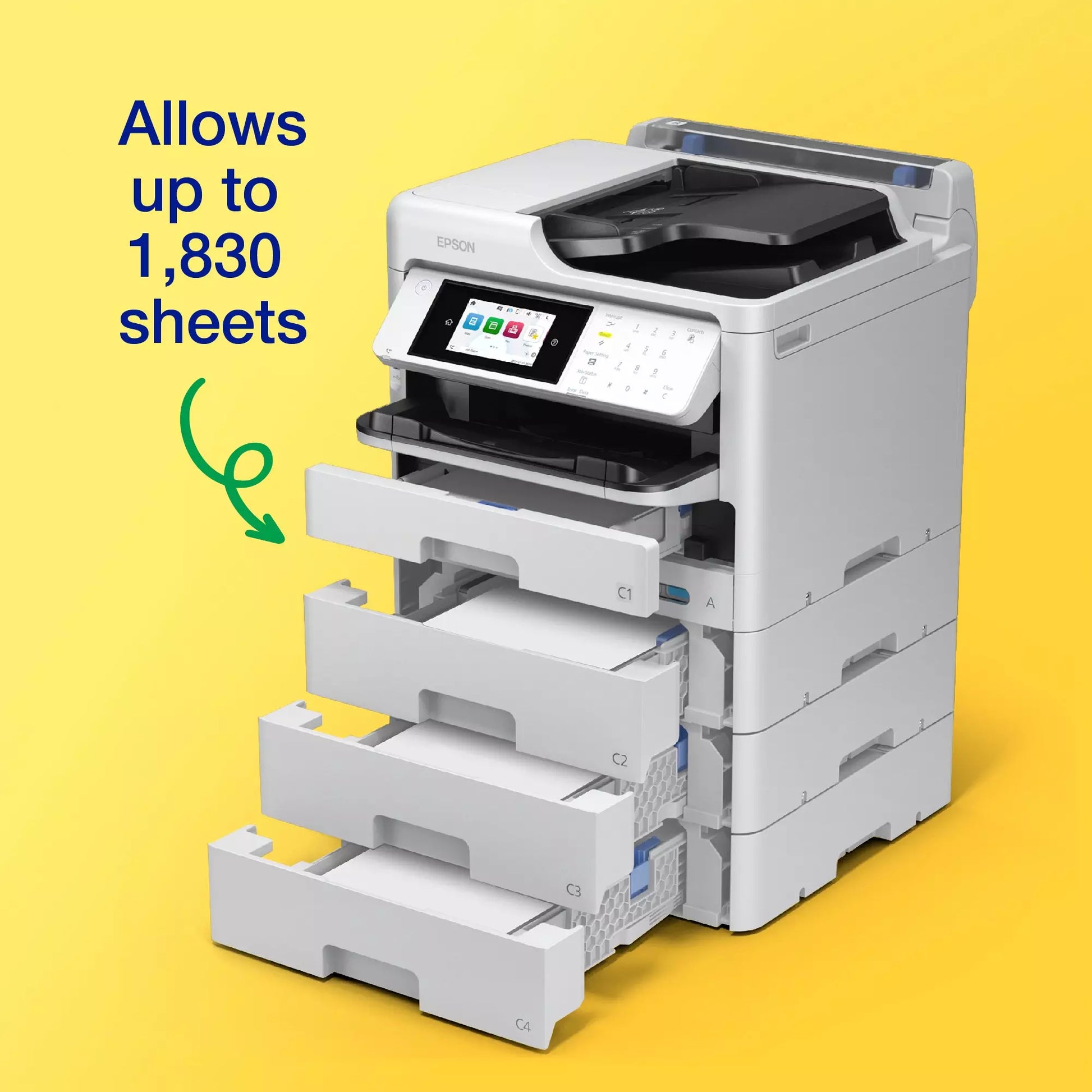

Paper Tray Capacity-330 Sheets Standard, 1.830 Sheets Maximum
Standard paper tray(s)-80-Sheet Multi-Purpose Tray, 250-sheet paper tray
Optional paper tray(s)-3 x 500 sheet paper tray
Maximum paper input-1.830
Rear paper path (special media)-Yes
Number of paper trays-4
Paper Feed RASF
Paper Input Name-RASF
Paper Formats-A4, A5, A6, C4 (Envelope), DL (Envelope), Letter, Postcard, User defined, Legal
Custom sizes-Min 64x 125 mm to Max 215,9x 6.000 mm
Compatible paper weight-64 g/m² - 256 g/m²
Paper Capacity 1-80 Sheets of Plain Paper, Postcards, Glossy paper, Envelopes, Labels, 80gsm
Media type-Plain Paper, Recycled Paper, Colour Paper, Letterhead, Glossy Photo Paper
Paper Feed C1
Paper Input Name-C1
Paper Formats-A4, A5, A6, Letter
Custom sizes-Min 85x 125 mm to Max 215,9x 355,6 mm
Compatible paper weight-64 g/m² - 160 g/m²
Paper Capacity 1-250 Sheets of Plain Paper, Envelopes, 80gsm
Media type-Plain Paper, Recycled Paper, Colour Paper, Letterhead
Paper Feed C2
Paper Input Name-C2
Paper Formats-A4, A5, A6, Letter
Custom sizes-Min 100x 148 mm to Max 215,9x 355,6 mm
Compatible paper weight-64 g/m² - 160 g/m²
Paper Capacity 1-500 Sheets of Plain Paper, 80gsm
Media type-Plain Paper, Recycled Paper, Colour Paper, Letterhead
Paper Feed Duplex
Paper Input Name-Duplex
Paper Formats-A4, A5, A6, B5, B6, Letter, HLT, Legal, Executive
Custom sizes-Min 148x 210 mm to Max 216x 297 mm
Compatible paper weight-64 g/m² - 160 g/m²
Media type-Plain Paper, Recycled Paper, Colour Paper, Letterhead
General
Energy Use-27 Watt (standalone copying, ISO/IEC 24712 pattern), 1,2 Watt (sleep mode), 11,7 Watt (Ready), 0,2 Watt (Power off), TEC 0,18 kWh/week
Supply Voltage-AC 220 V - 240 V, 50 Hz - 60 Hz
Product dimensions-425 x 535 x 357 mm (Width x Depth x Height)
Product weight-18,7 kg
Compatible Operating Systems-Citrix XenApp 7.6 and above, Citrix XenDesktop Version 7.6, Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.11.x, Mac OS X 10.12, Mac OS X 10.12.x, Mac OS X 10.6.8, SAP, Windows 10, Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows 8.1, Windows Server 2003 R2 x64, Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows Vista (32/64 bit), Windows Vista x64, Windows XP SP2 or higher, Windows XP SP3, Windows XP x64, Windows Server 2003 R2, XP Professional x64 Edition, XP Professional x64 Edition SP2, macOS 11 or later
Included Software-Epson Document Capture Pro (Windows only)
Mobile and Cloud printing services-Apple AirPrint, Google Cloud Print, Epson Connect (iPrint, Email Print, Remote Print Driver, Scan-to-Cloud, Facebook print)
Power supply-220V, 240V
What's in the box-Driver and utilities (CD), Individual Ink Cartridges, Power cable, Setup guide, User manual (CD)
Additional Features
Features-Touchscreen, Direct Print, Direct scan-to-print without PC, Direct print from USB

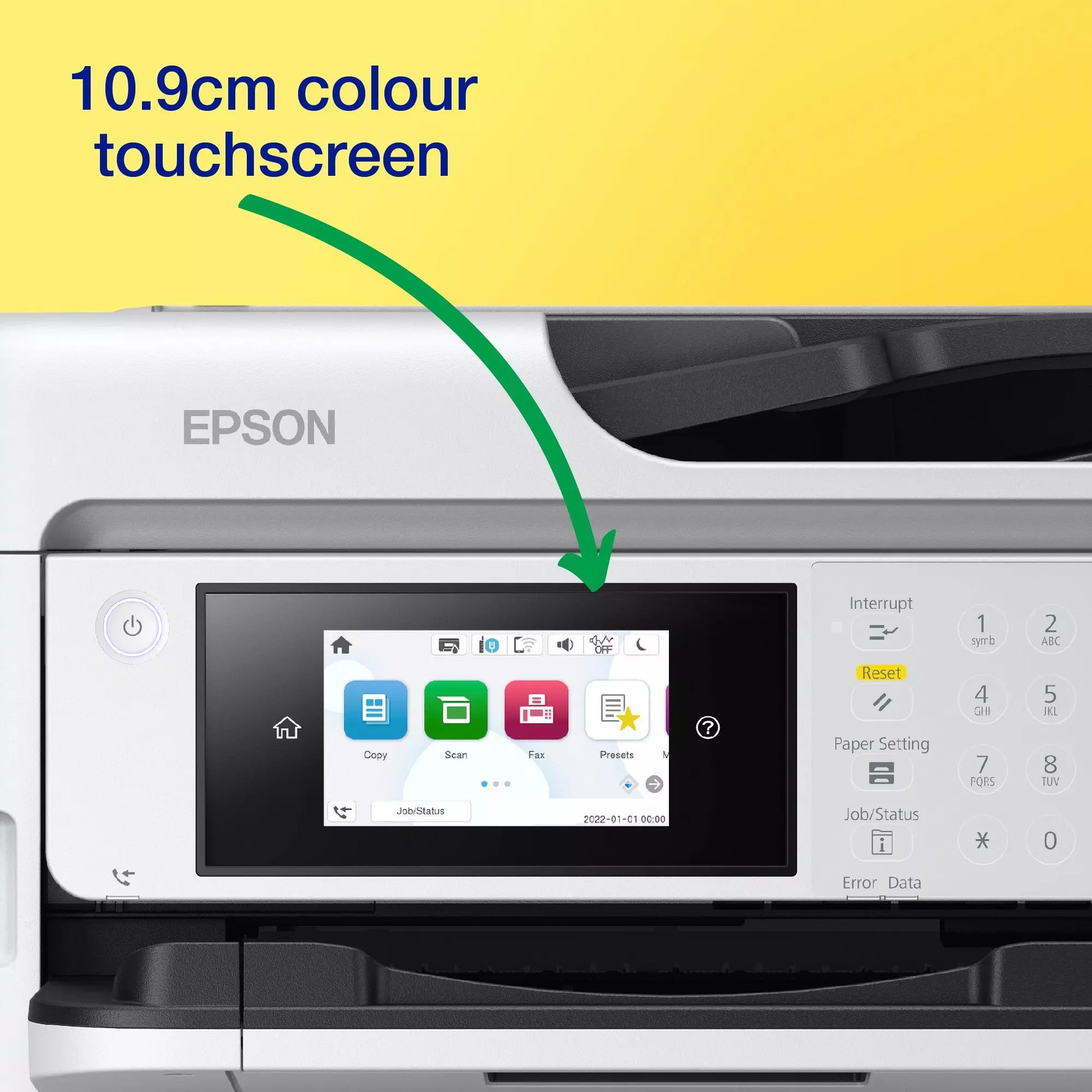

Panel-Type: Color, Touchscreen, Diagonal: 10,9 cm
Media Handling-ADF 2-sided copy (A4, plain paper), Automatic duplex (A4, plain paper), Portrait & Landscape printing, Thick Media Support
Security Functions-Limit access function with Epson Web Config, Secure confidential printing with PIN code release, LDAP Address Book, IPsec, IEEE802.1x, SSL (Server authentication), Panel Admin Mode
Other
Other Features
Emulations-PCL5c, PCL6, PostScript 3, ESC/P-R, PDF 1.7
Security-WPA2, WPA3
