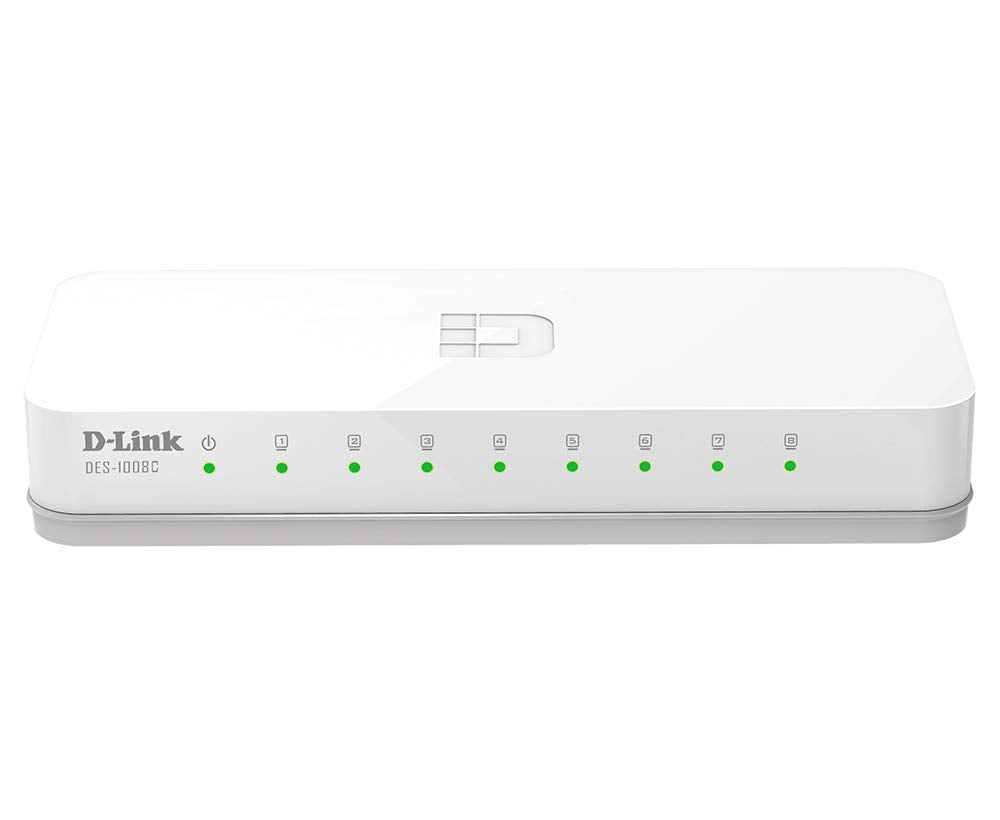

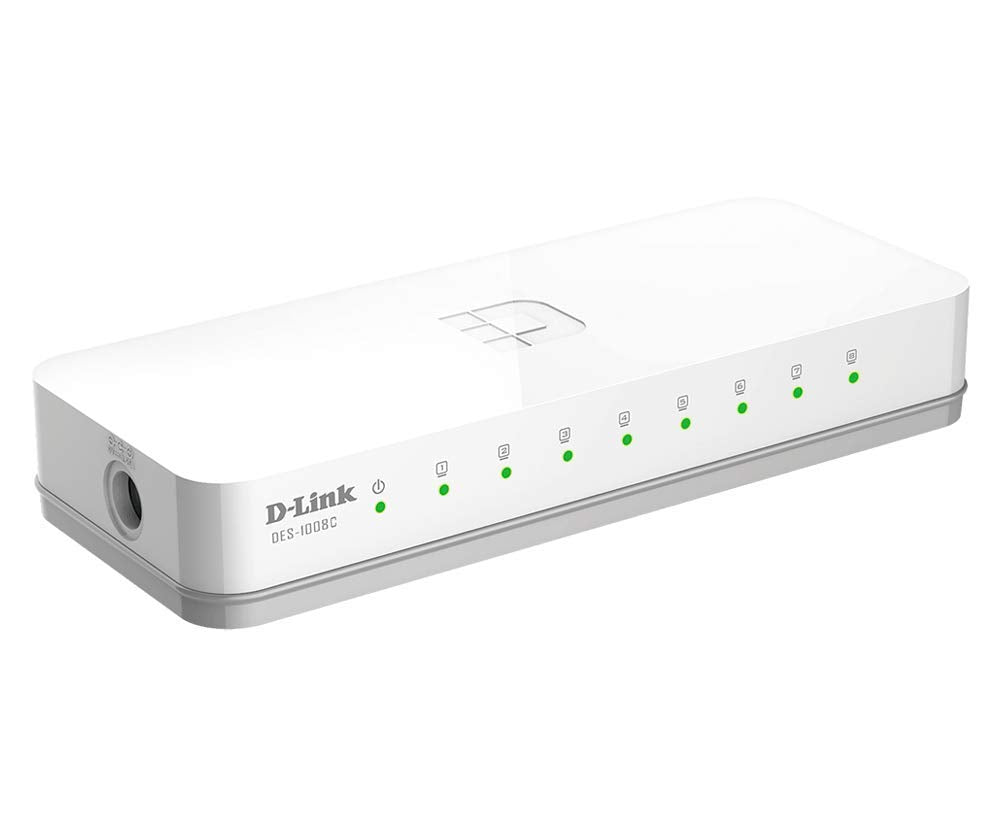

D-LINK DES-1008C SWITCH 8PORT 10/100 LAN PORTS UNMANAGED PLUG PLAY AUTO MDI/MDIX

D-LINK DES-1008C SWITCH 8PORT 10/100 LAN PORTS UNMANAGED PLUG PLAY AUTO MDI/MDIX

Regular price €13,00 EUR
Regular price Sale price €13,00 EUR
Sale Sold out
Tax included.
0 in Stock. Available online!

Inexpensive Fast Ethernet solution for
Home/SOHO

Key Features

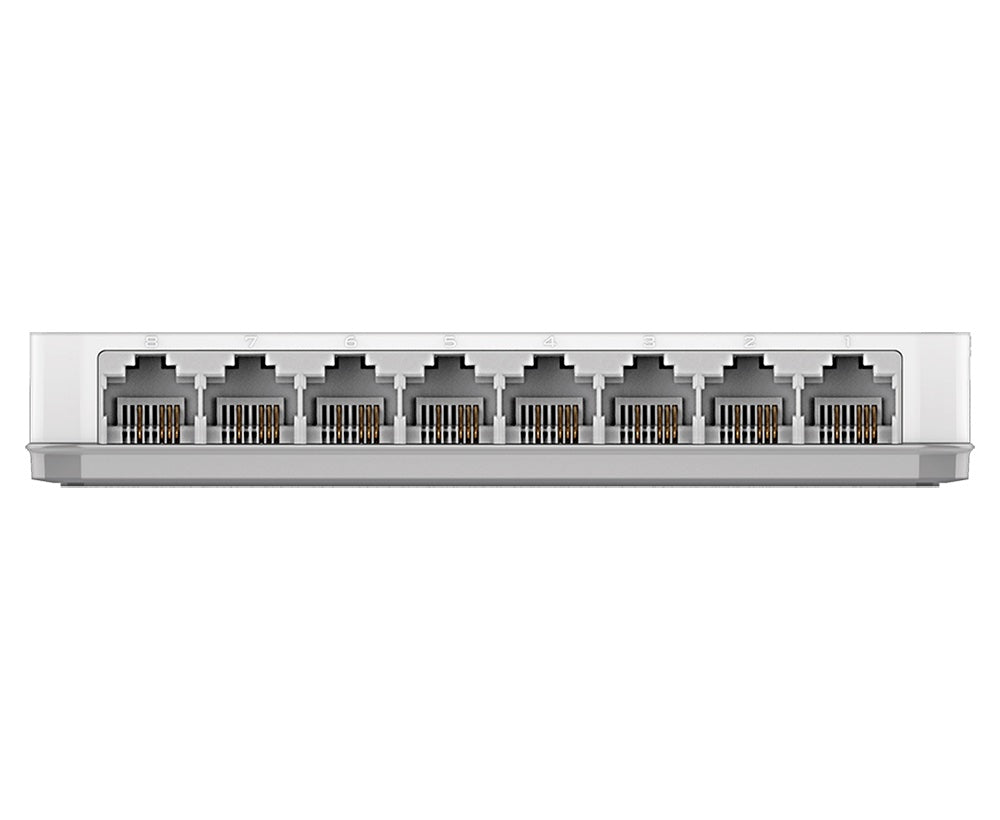

8 10/100 Mbps Fast Ethernet ports
Auto MDI/MDIX crossover for all ports
Store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast
Ethernet speeds
IEEE 802.3x Flow Control
Plug-and-play installation
RoHS compliant

SWITCHING FABRIC


1.6 Gbps switching fabric
Standards
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control
Protocol
CSMA/CD
Data Transfer Rates
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Topology
Star
Media Interfa ce Exchange
Auto MDI/MDIX adjustment for all ports
Network Cables
10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
LED Indicators
Per port:
Link/Activity
Per device:
Power
Transmission Method
Store-and-forward
MAC Address Tab le
1K entries per device
MAC Address Learning
Automatic update
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
RAM Buffer
57 KBytes per device

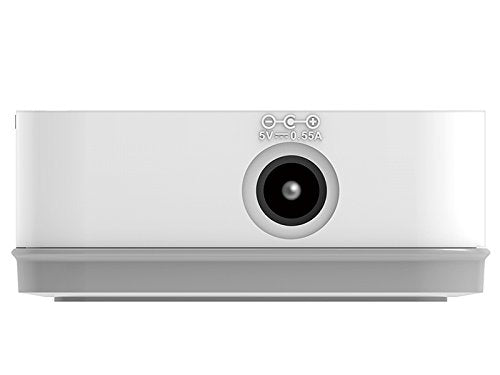

DC Input
External 5V/1A power adapter
Power Consumption
Power On (Standby):
DC input: 0.5 watts
AC input: 1.4 watts
Maximum:
DC input: 3.25 watts
AC input: 4.23 watts
Heat Dissipa tion
Power On (Standby):
AC input: 4.77 BTU/h
Maximum:
AC input: 14.42 BTU/h

Operating Temperature
0 to 40 ?C (32 to 104 ?F)

STORAGE TEMPERATURE
-10 to 70 ?C (14 to 158 ?F)

OPERATING HUMIDITY
10% to 90% RH non-condensing
Storage Humidity
5% to 90% RH non-condensing
Device Dimensions (W x D x H)
128 x 68.5 x 25.4 mm (5.0 x 2.7 x 1.0 inches)
Certifications
FCC Class B
CE Class B
CB
