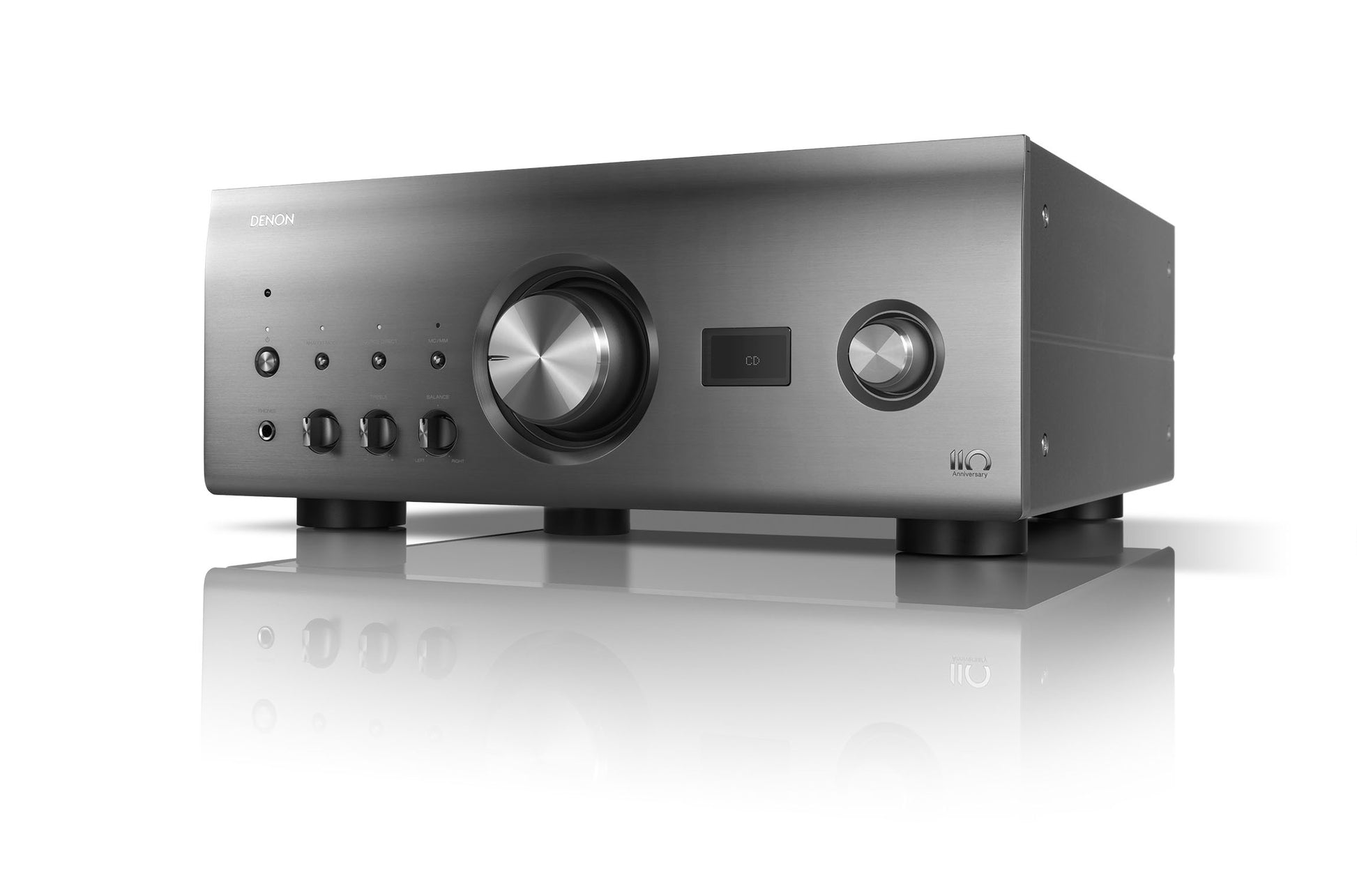

DENON PMA-A110 110th Anniversary Edition Amplifier
DENON PMA-A110 110th Anniversary Edition Amplifier
Regular price
€3.999,00 EUR
Regular price
€0,00 EUR
Sale price
€3.999,00 EUR
Unit price
per
Tax included.
0 in Stock. Available online!
Couldn't load pickup availability
TECHNICAL SPECIFICATIONS
Features
| Channels | 2 |
| 110th Anniversary Audio Tuning | Yes |
| All black interior | Yes |
| Exclusive A110 speaker terminals | Yes |
| Aluminium Top Cover | Yes |
| Aluminium Feet | Yes |
| Digital in: USB-B / optical / coaxial / USB-A | 1 / 3 / 1 / No |
| Sample Rate digital In | 192 kHz / 24-bit |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | <=DSD11.2 |
| USB-B PCM sample rate | 384 kHz / 32-bit |
| Quad DAC Configuration | Yes |
| DAC chip | 4x PCM1795, Burr Brown Mono-Mode |
| Asynchronous mode rear USB | Yes |
| Bit-perfect transmission | Yes |
| Ground isolator for DAC Mode operation | Yes |
| AL 32 Processing | ULTRA AL32 |
| DAC Master Clock Design | Yes |
| Streaming audio from PC | Yes |
| Analogue Mode | Yes |
| UHC-MOS single push pull circuit | 7th Generation |
| LC mounted twin transformer | Yes |
| Wide range amplifier | Yes |
| High current dynamic power supply | Yes |
| Power amp discrete construction | Yes |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
Others
| Shottky diodes | Yes |
| Solid Heat Sinks | Yes (BLACK) |
| Source Direct | Yes |
| Power Amp direct | Yes |

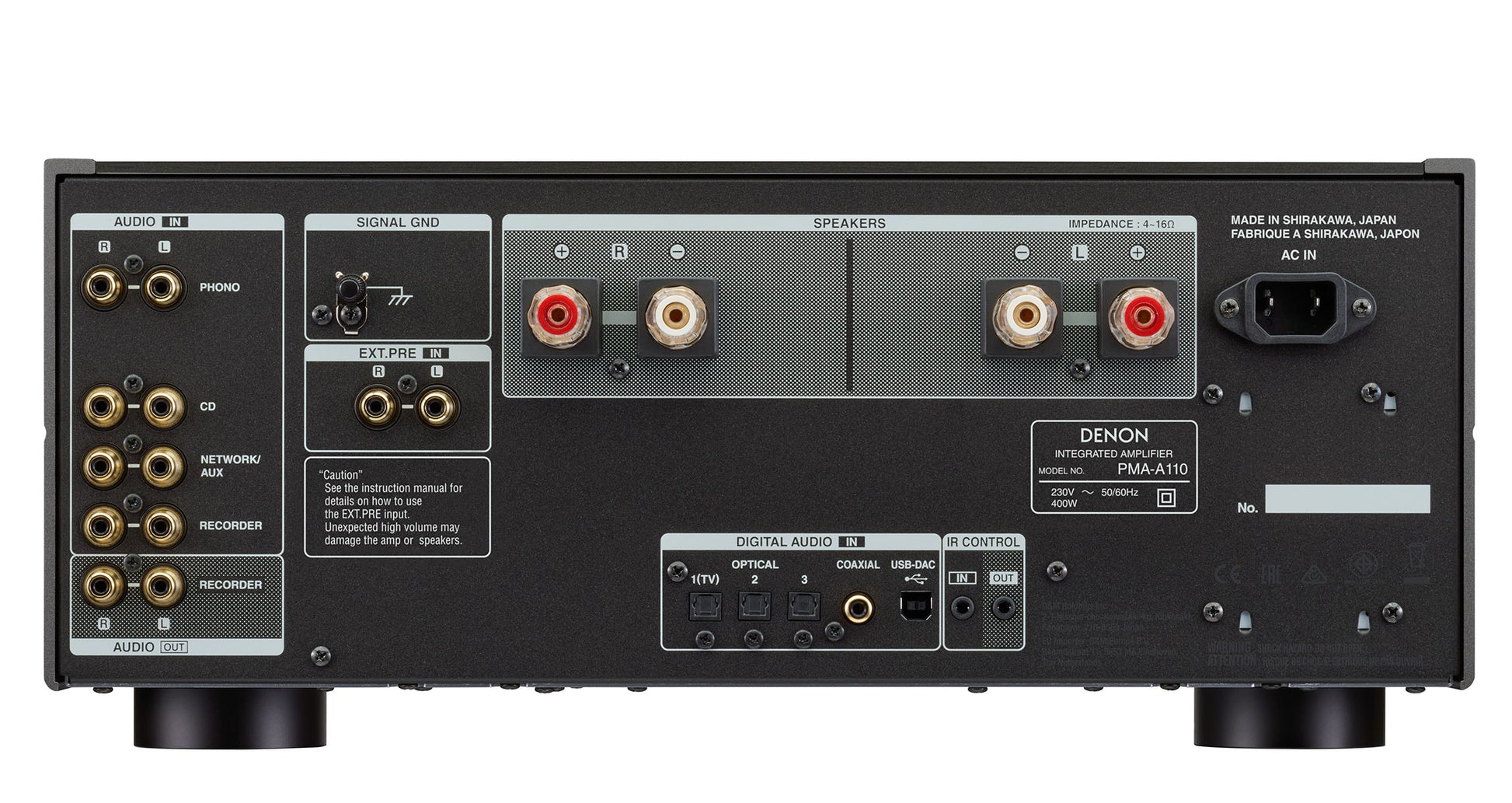

Inputs Outputs
| Audio Inputs | 5 |
| Digital in: USB-B / optical / coaxial / USB-A | 1 / 3 / 1 / No |
| Phono Input: MM / MC | Yes / Yes |
| Audio Outputs | 1 |
| Power Amp Direct IN | Yes |
| Gold plated Cinch | Yes |
| Number of terminals | 4 |
| Remote Control Bus in / out | Yes |
| Headphone Out | Yes |
Specifications
| Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%) | 80 W |
| Output power 4 Ohm (1 kHz, T.H.D. 0.7%) | 160 W |
| Total Harmonic Distortion | 0.01% |
| Input Sensitivity: MM | 2.5 mV / 47 kohm |
| Input Sensitivity: MC | 200 uV-100 ohm |
| Signal to Noise Ratio: MM/MC | 89 dB / 74 dB |
| Input Sensitivity: High level | 135 mV / 47 kohms |
| Signal to Noise Ratio: High level | 110dB |
| Treble Control | ± 8 dB at 10 kHz |
| Bass Control | ± 8 dB at 100 Hz |
General
| Available colors: Premium Silver / Black | Silver Graphite |
| Metal Front Panel | Yes |
| Power Consumption in W | 400 |
| Standby Consumption in W | 0.2 |
| Auto Power Off | Yes |
| Detachable Power Cable | Yes |
| Remote Control | RC-1237 |
| System Remote Function | Yes |
| Maximum Dimensions (W x D x H) in mm | 434ｘ450ｘ182 |
| Weight in kg | 25 |
| Carton Maximum Dimensions (W x D x H) in Inches | 573 x 533 x 317 |
| Carton Weight (inc. product) in LBS | 29.8 |
