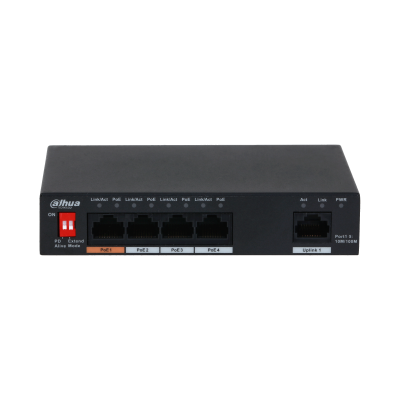

Dahua PoE Switch 4port +1UP 58W PFS3005-4ET-60 V2

• 5-Port Unmanaged Desktop Switch with 4-Port PoE
• The parameters and datasheets below can only be applied to V2.0 (version 2.0)
•  Intelligent PoE
•  Hi-PoE 60W (orange port)
•  8-pin assignment PoE power supply
•  Long distance PoE
•  PoE watchdog
•  Wide working temperature

Hardware Feature

• Ethernet Port Port 1-4: 4 × RJ-45 10/100M (PoE)
• Port 5: 1 × RJ-45 10/100M (uplink)
• PoE Power Consumption Port 1 ≤ 60 W (Hi-PoE) port 2-4 ≤ 30 W total ≤ 60 W
• Power Consumption Idling: 0.8 W Full load: 60 W
• Standard IEEE802.3, IEEE802.3u, IEEE802.3x

PoE

• PoE Protocol IEEE802.3af/ IEEE802.3at/ Hi-PoE
• Power Supply Pin 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• Long Distance 250 m long distance PoE transmission
• PoE Power Management Yes
• PoE Watchdog Yes

Performance

• Switching Capacity 1.8 Gbps
• Packet Forwarding Rate 744 Kbps
• Packet Buffer Memory 1 Mbit
• Flow Control Enable by default
• Working Temperature –10 °C to +55 °C (+14 °F to +131 °F)
• Application Humidity 5%– 95% (RH)

General

• Power Input 48 V - 57 V DC
• Lighting Protection Common mode: 4 kV Differential mode: 2 kV
• ESD Protection
• Air discharge: 8 kV
• Contact discharge: 6 kV
• Wall-mount Installation Yes
• Anti-theft Lock Hole Yes
• Weight 0.30 kg (0.64 lb)
• Dimension 130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")
