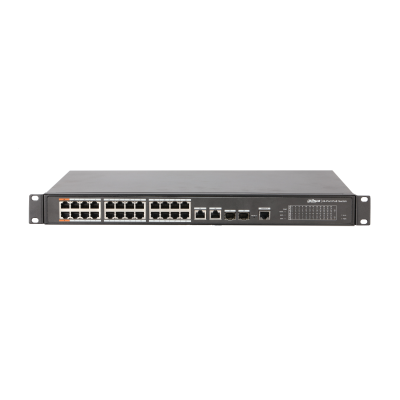

Dahua PoE Switch 24ports 360W PFS4226-24ET-360

• Layer 2 management PoE switch
• PoE budget: 360W
• Support PoE, PoE+, Hi-PoE
• 'Orange port' support Hi-PoE, can be used with the PoE extender (PFT1300)
• 250 meters long distance PoE transmission
• PoE management, PoE Setting/Event Statistics/Green PoE
• Search and upgrade via ConfigTool
• Support Web management
• High lightning protection design
• Non-blocking video transmission

Technical Specification

• Model : DH-PFS4226-24ET-360
• Ethernet Port : 2*10/100/1000 Base-T (Combo port) / 2*1000 Base-X (Combo port) / 24*10/100 Base-T (PoE power supply)
• PoE Power Consumption : Port1/2 support Hi-PoE (60W), PoE+, PoE / Each power ≤30W / Total≤360W
• PoE Protocol : IEEE802.3af, IEEE802.3at, Hi-PoE
• Switching Capacity : 8.8G
• Packet Forwarding Rate : 6.55Mpps
• Humidity : 10%~90%
• Power : AC 100~240V
• Lightning Protection : Common Mode 4KV / Differential Mode 2V
• Working Temperature : -10%~55%
• Weight : 3.51kg
• Dimension(W×D×H) : 440mm x300mm x44mm

Accessories

• PFT3950 : 1.25G 850nm,500m,LC, Multi-mode
• PFT3960 : 1.25G 1310/1550nm,20km,LC, Single-mode
• PFT3970 : 1.25G 1550/1310nm,20km,LC, Single-mode

Service Characteristics

• System : Username / password: admin/admin
• IP Address :192.168.1.110/24
• PoE Budget : 360W
• MAC Table : 4K
• VLAN : 802.1Q Standard VLAN
• Spanning Tree : STP / RSTP
• Port Aggregation : Static link aggregation / LACP protocol
• Mirroring : Many-to-one port mirroring
• DHCP : Support DHCP-Client
• Long Distance Mode : "Power & Data" transmission distance up to 250m
• Flow Control : Half-duplex based on back pressure type control / Full duplex based on PAUSE frame
• Security Features : IP+MAC binding based on port / IEEE802.1x port authentication
• System Maintenance : One-key recovery / Support the updated packet upload / System log
• QoS : High and low priority, WRR / 802.1P, DSCP / Support priority according to protocol
• Network Management : WEB(http and https protocol) / Support SNMP V1/V2C/V3
• PoE Management : PoE setting (real-time port comsumption) / PoE event statistics / Green PoE
