Citronic RU210-H Dual Multi-UHF Handheld 171.970UK

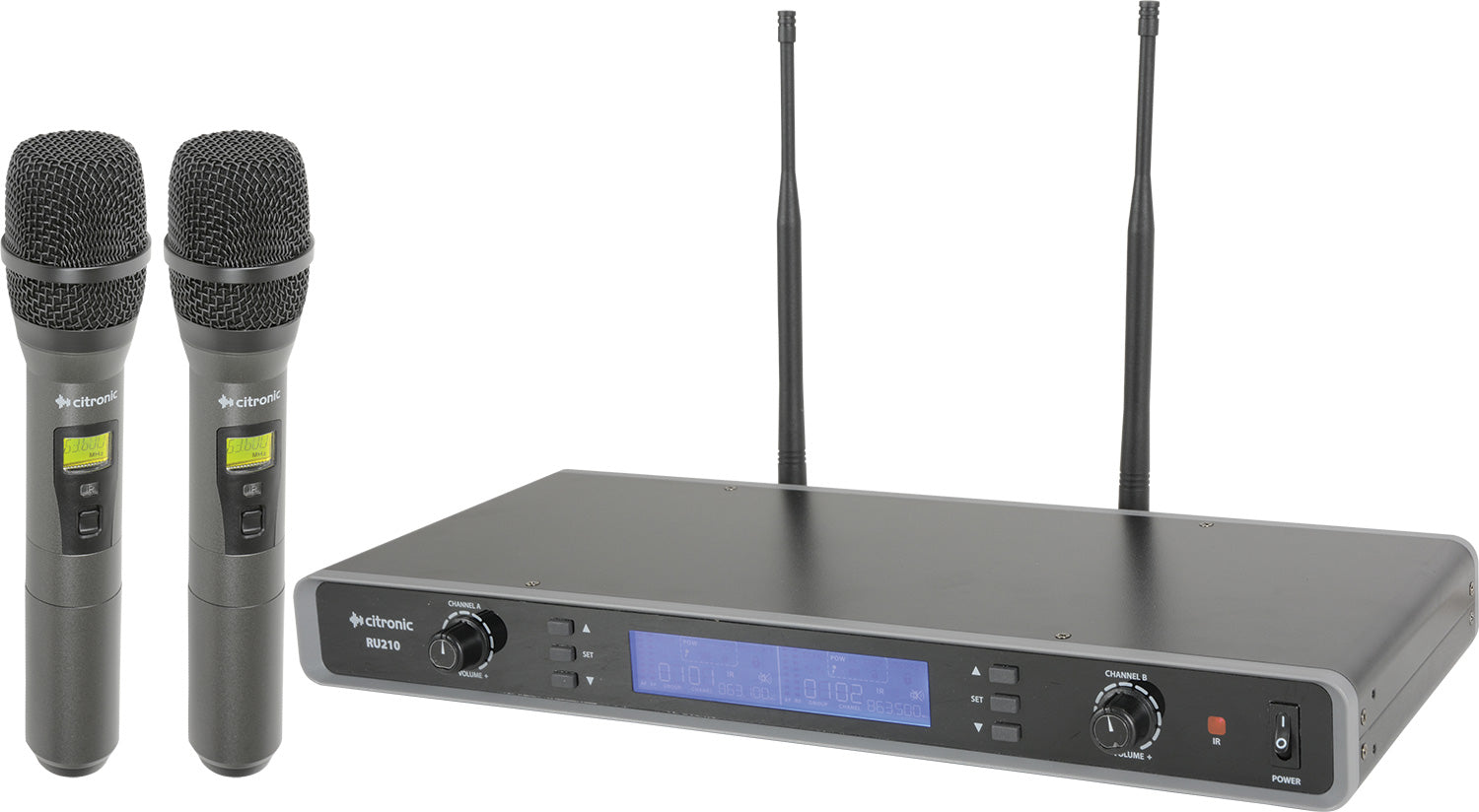

Dual channel PLL tuneable UHF wireless system with 2 handheld microphones. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button. Up to 2 RU210 systems can be operated together on the EU licence-free band.

• PLL tunable with 81 UHF frequencies
• Licence free operation in EU
• Pilot tone & mute circuit for stable signal
• Rack-mounting accessories included
• Supplied with mains adaptor and 4 x AA batteries
  • Power supply 12-18Vdc, 500mA (mains adaptor included)
  • Batteries 4 x AA (2 per transmitter - included)
  • Carrier frequency 863 - 865MHz (81 selectable frequencies)
  • Range 60m
  • Signal to noise ratio >105dB
  • THD <0.5% @ 1KHz
  • Frequency response 50Hz-18KHz ±1 dB
  • Image rejection >85dB
  • Output impedance 2.2k Ohms
  • Output level 400mV (balanced), 200mV (unbalanced)
  • Dimensions : receiver 44 x 409 x 190mm
  • Weight : receiver 1.37kg

  The box for this item contains :

  • Dual channel receiver
  • 2 x handheld transmitters
  • 4 x AA batteries
  • 2 x UHF antennas
  • 2 x antenna leads

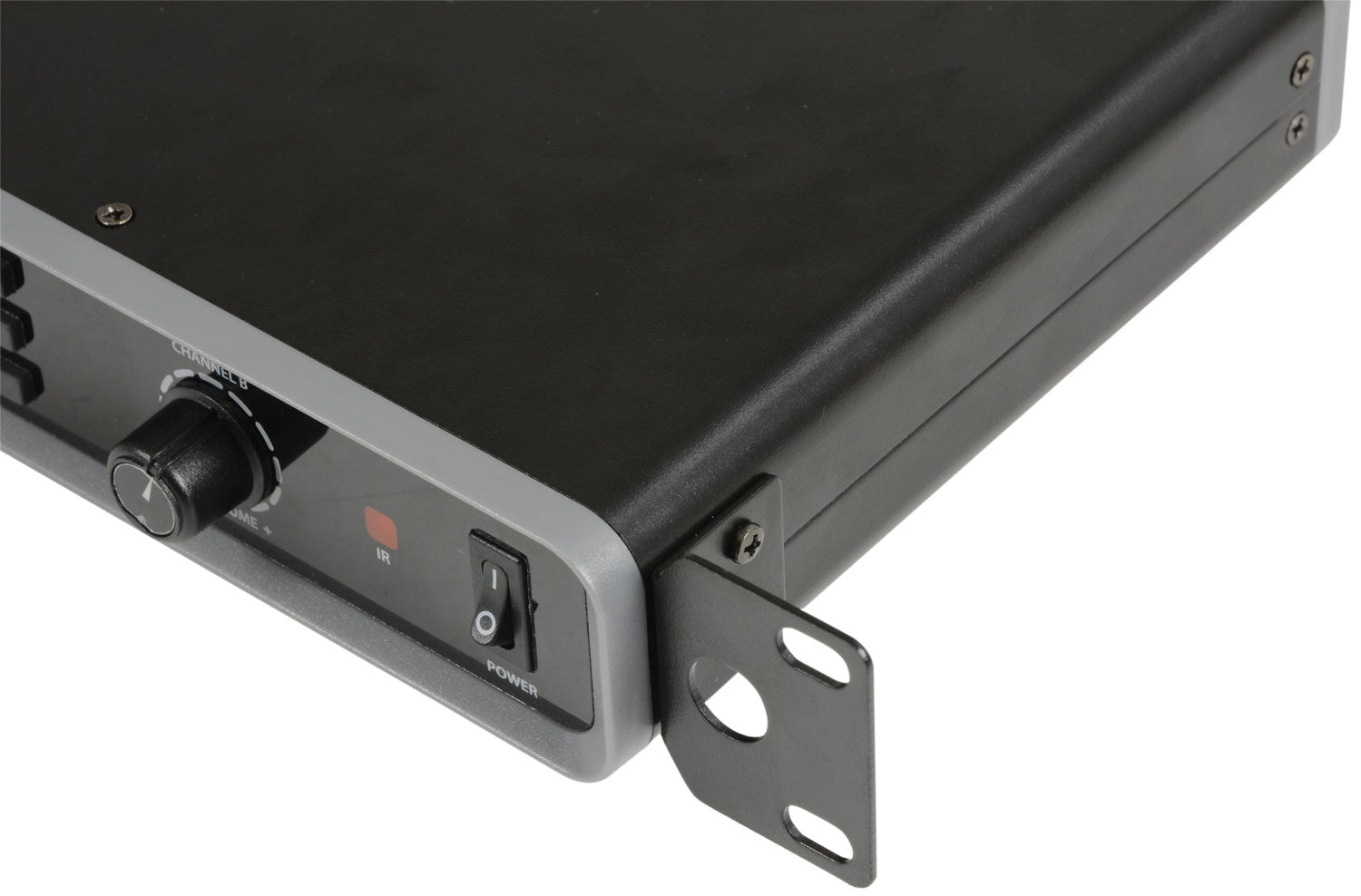

  • 2 x rack-mounting ears
  • Mains power adaptor
