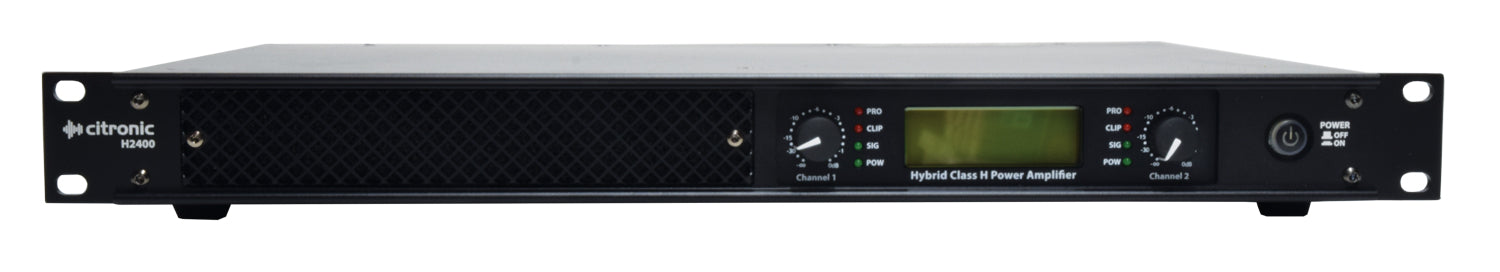

Lightweight power amplifier in a 1U rack-mountable housing for generating high sound pressure levels in medium to large sound reinforcement systems.
H-series amplifier employ a new hybrid class-H architecture, which combines the streamlined efficiency of a digitally controlled power section design with the power delivery and stability of a professional class-H output stage.
Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting.

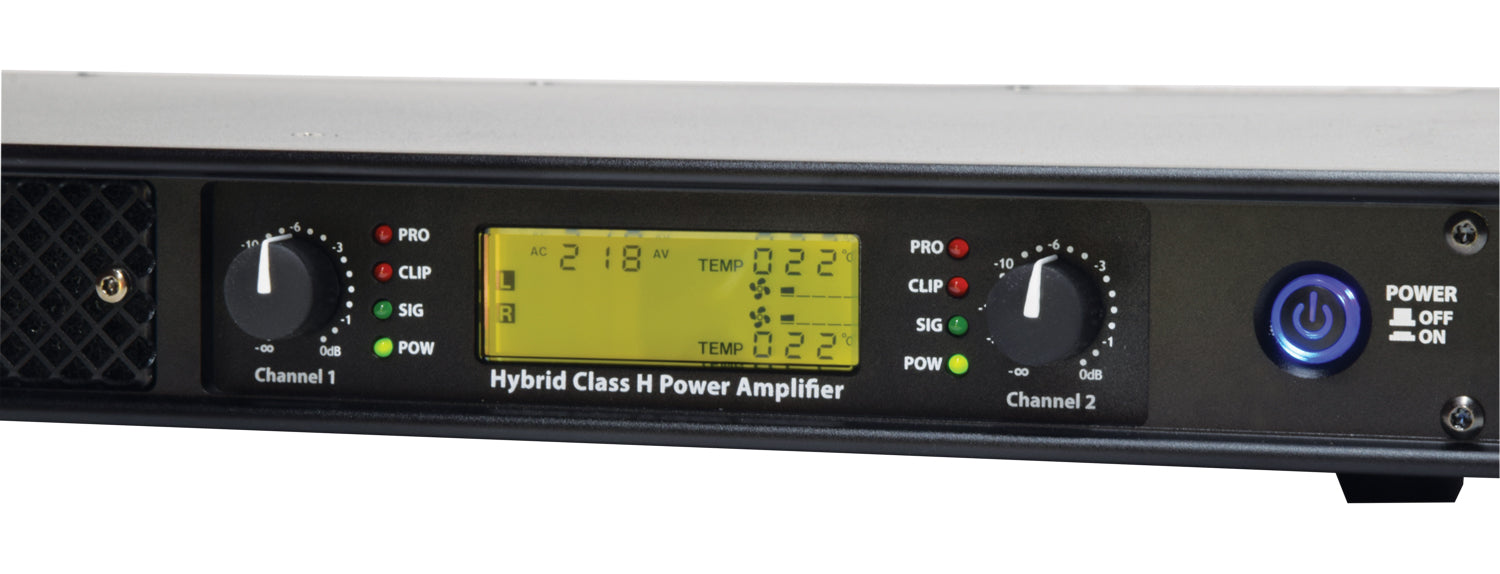

A digital display continually shows the supply voltage, internal temperature and output level.

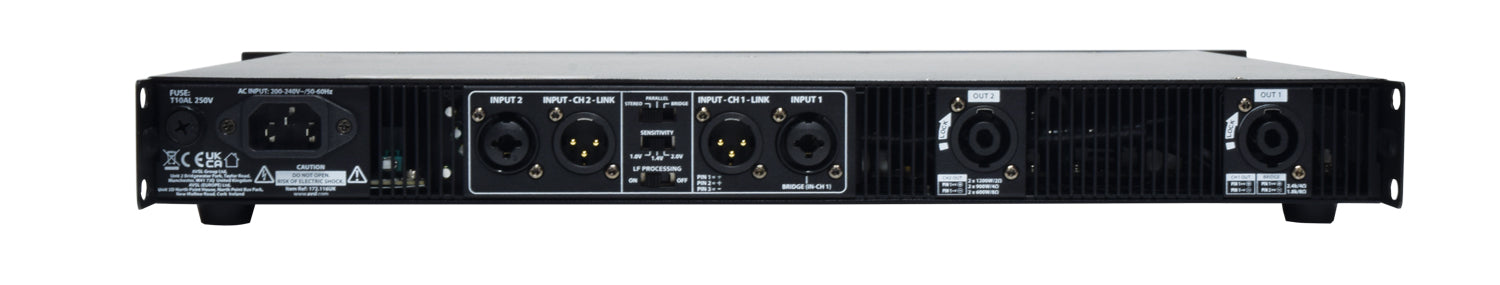

A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes. Speaker outputs can be connected using 1 or 2 Speakon leads as required. H-series amplifiers provide immediate and dynamic power on demand for sound contractors and PA installers that need dependable service with optimum sound quality.
- Hybrid class-H circuit design
- Digitally controlled and monitored power section
- Industry standard bi-polar output stage
- Backlit LCD status display
- Full internal thermal and overload protection
- Stable down to 2 Ohms (4 Ohms bridged)
- Power rms: @ 8 Ohms 2 x 600W
- Power rms : @ 4 Ohms 2 x 900W
- Power rms: @ 2 Ohms 2 x 1200W (40ms burst 1kHz sine)
- Power rms bridge: @ 8 Ohms 1800W
- Power rms bridge: @ 2400W (40ms burst 1kHz sine)
- Weight: 7.0kg
- Fuse : T8AL 250V
