Chord SU20 RG Handheld UHF Mics 863.42+864.3 171.907UK

Chord SU20 RG Handheld UHF Mics 863.42+864.3 171.907UK

Regular price €169,00 EUR
Regular price Sale price €169,00 EUR
Sale Sold out
Tax included.
0 in Stock. Available online!

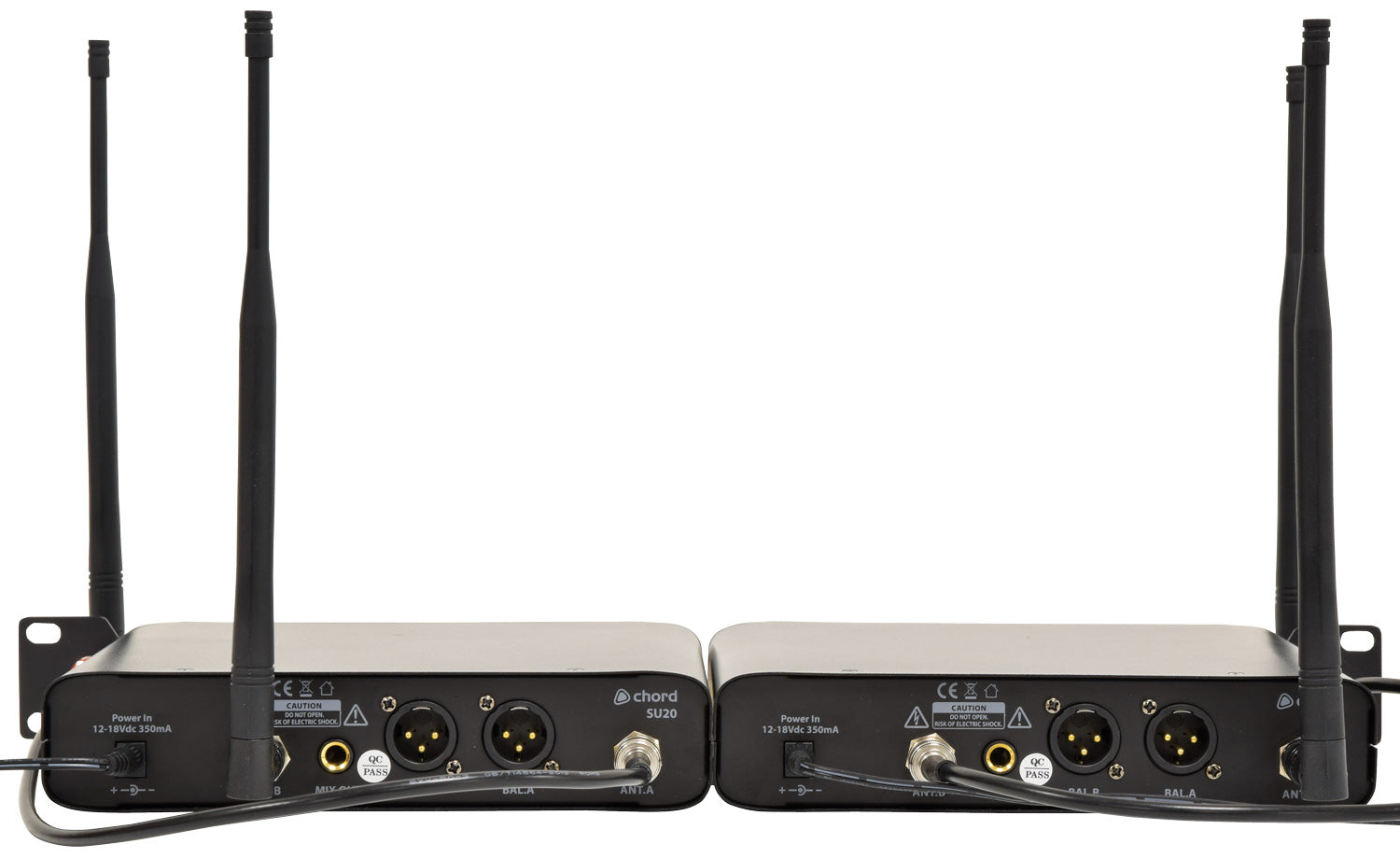

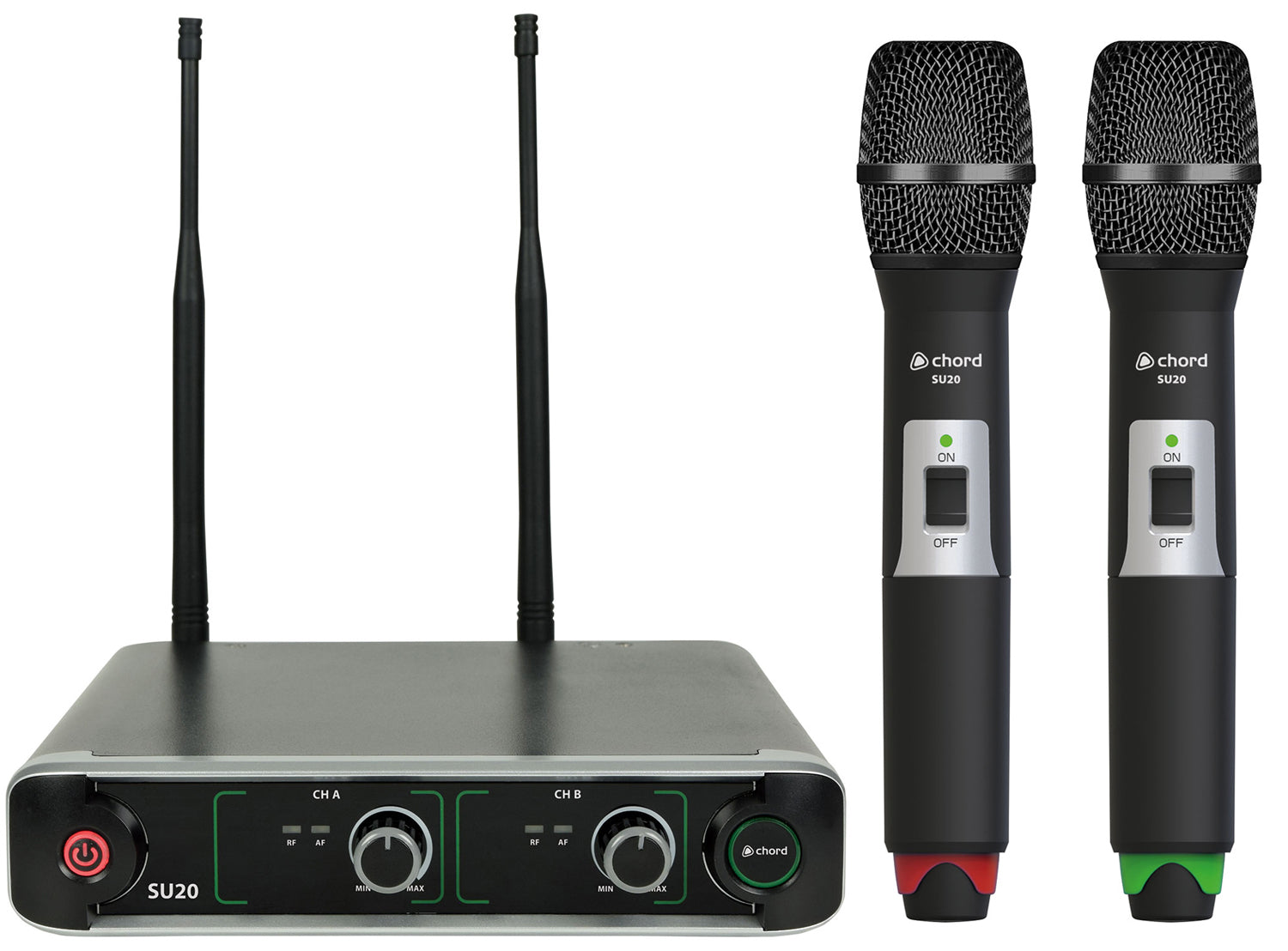

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or front mounting as required.

Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones.

Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.

  • Up to 2 sets (4 microphones) can be used together
  • Available in handheld or beltpack versions with 2 carrier frequency options
  • Front or rear mountable antennas
  • Compact half-rack receiver
  • Supplied with power adaptor and 4 x AA batteries
  • Power supply14Vdc 350mA (adaptor supplied)
    Antenna connection: BNC
    Batteries4 x AA (2 per transmitter) included
    Range: 60m
    Microphone polar pattern: Cardioid (handheld, neckband or lavalier)
    Output connections: 2 x balanced XLR, 1 x unbalanced 6.3mm jack
    Output impedance: 2.2k Ohms
    Output level: 400mV (balanced), 200mV (unbalanced)
    Frequency response: 50Hz - 18kHz (±3dB)
    S/N ratio: >80dB
    THD: <0.5% @ 1kHz
    Dimensions receiver: 203 x 187 x 42mm
    Weight  receiver: 845g

    Dimensions  handheld transmitter:  250 x 47mmØ
    Weight  handheld transmitter : 231g (no battery)
    Carrier frequencies: 863.42MHz (Red) + 864.3MHz (Green)
