Chord SU20 Beltpack UHF Mics 863.4+864.3 171.917UK

Chord SU20 Beltpack UHF Mics 863.4+864.3 171.917UK

Regular price €169,00 EUR
Regular price Sale price €169,00 EUR
Sale Sold out
Tax included.
0 in Stock. Available online!

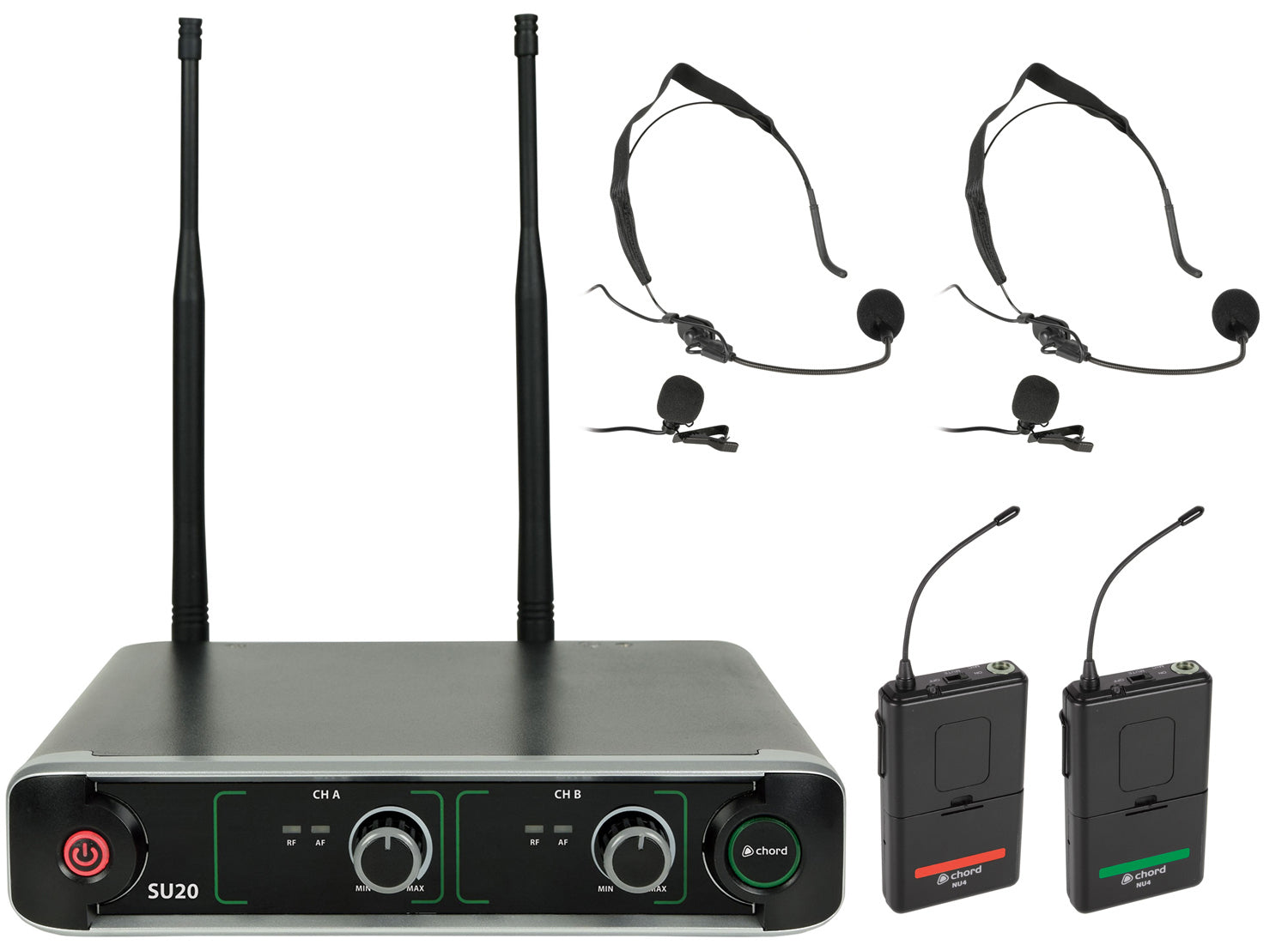

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space.

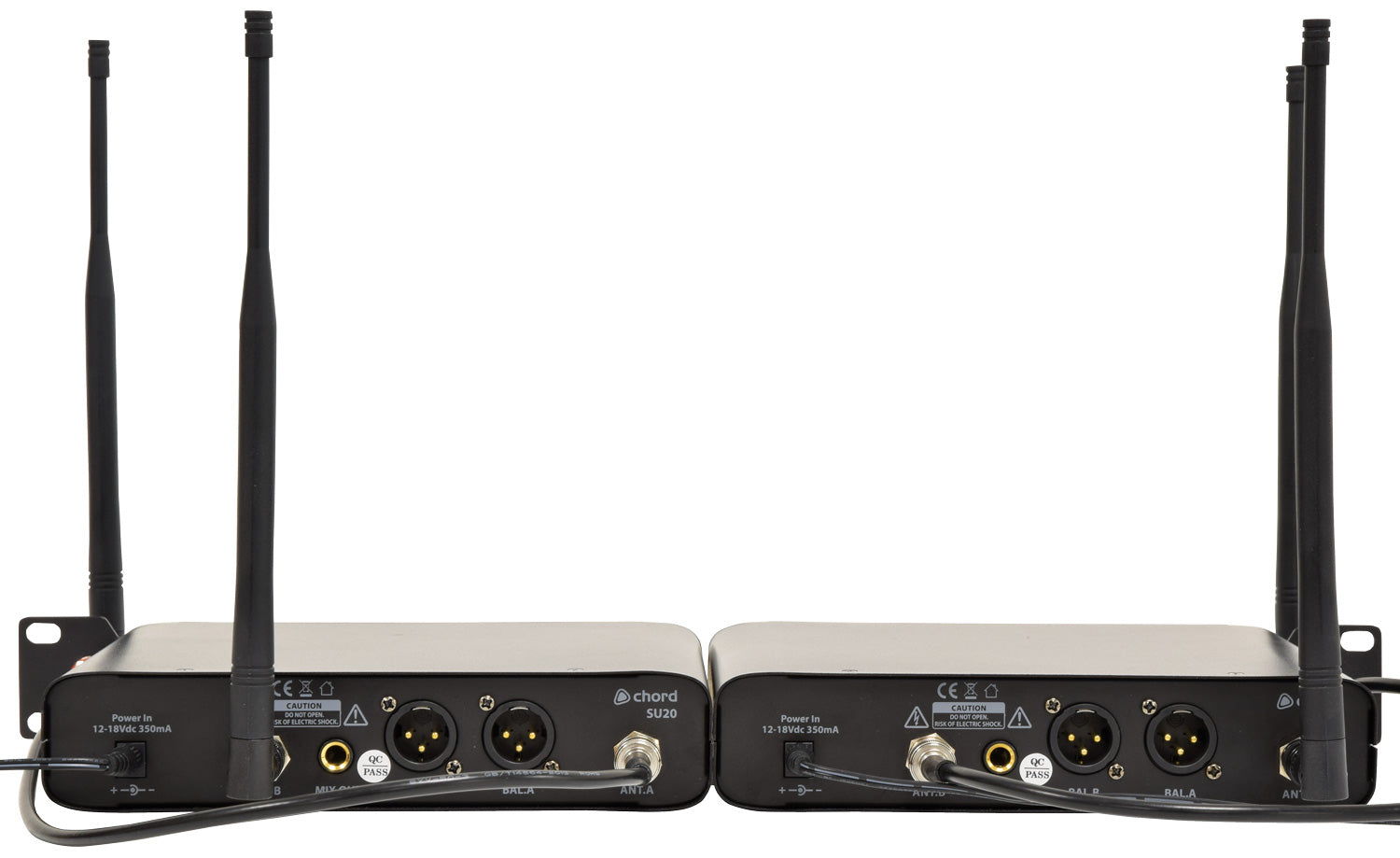

BNC cables and detachable antennas are provided for rear or front mounting as required.

Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.

  • Up to 2 sets (4 microphones) can be used together
  • Available in handheld or beltpack versions with 2 carrier frequency options
  • Front or rear mountable antennas Compact half-rack receiver
  • Supplied with power adaptor and 4 x AA batteries
  • Power supply14Vdc 350mA (adaptor supplied)
  • Antenna connectionBNC
  • Batteries4 x AA (2 per transmitter) included
  • Range: 60m
  • Microphone polar pattern Cardioid (handheld, neckband or lavalier)
  • Output connections: 2 x balanced XLR, 1 x unbalanced 6.3mm jack
  • Output impedance: 2.2k Ohms
  • Output level: 400mV (balanced), 200mV (unbalanced)
  • Frequency response: 50Hz - 18kHz (±3dB)
  • S/N ratio: >80dB
  • THD: <0.5% @ 1kHz
  • Dimensions receiver: 203 x 187 x 42mm
  • Weight  receiver: 845g
    Dimensions : handheld transmitter 250 x 47mmØ
    Weight : handheld transmitter 231g (no battery)
    Carrier frequencies: 863.42MHz (Red) + 864.3MHz (Green)
View full details
