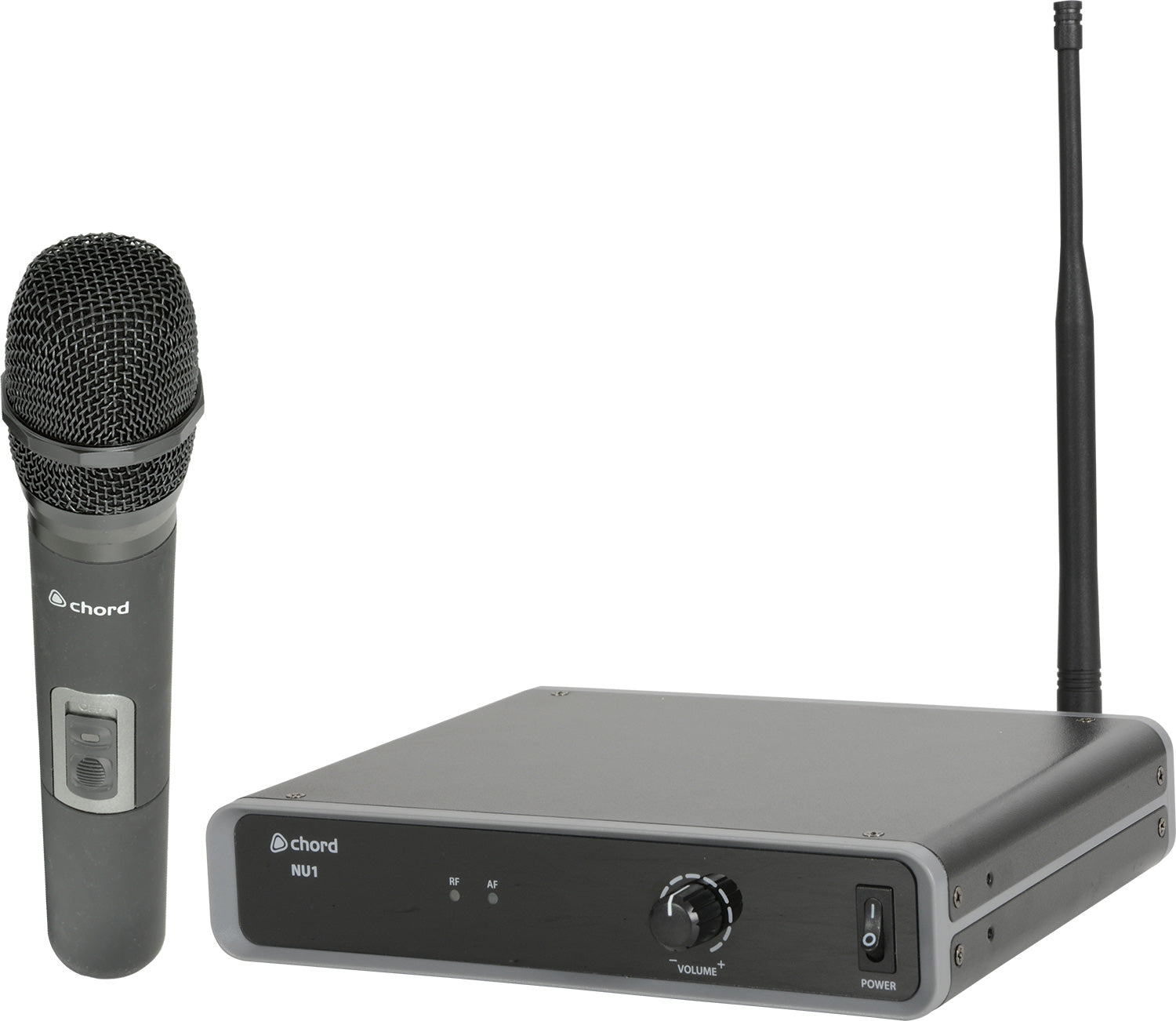

Chord NU1-H UHF Wireless Handheld Microphone 863.1MHZ 171.981UK

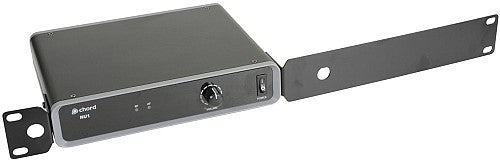

Wireless microphone system with fixed UHF handheld transmitter and half rack-width receiver. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories.

•     Pilot tone & mute circuit for stable signal
•     Licence free operation in EU
•     Rack-mounting accessories included
•     Supplied with mains adaptor and 2 x AA batteries


  Specifications



  •     Power supply 12-18Vdc, 350mA (mains adaptor included)
  •     Batteries 2 x AA (for transmitter - included)
  •     Range 60m
  •     Signal to noise ratio >105dB
  •     THD <0.5% @ 1kHz
  •     Frequency response 50Hz-18KHz ±1 dB
  •     Image rejection >85dB
  •     Output impedance 2.2k Ohms
  •     Output level 400mV (balanced), 200mV (unbalanced)
  •     Dimensions : receiver 44 x 198 x 190mm
  •     Weight : receiver 710g
  •     Dimensions : transmitter 243 x 48mmØ
  •     Carrier frequency     863.1MHz
