Technical features
Nautilus™ tube loaded aluminum dome tweeter
Glassfiber cone bass/midrange
Auxiliary Bass Radiator (ABR)
Description
2-way system with Auxiliary Bass Radiator (ABR)
Drive units
1x ø25mm (1in) aluminum dome high-frequency
1x ø130mm (5in) glassfibre cone bass/midrange
Frequency range
-6dB at 46Hz and 50kHz (wall mounted)
Frequency response
51Hz - 22kHz on reference axis (wall mounted)
Sensitivity
86dB (2.83V, 1m)
Total harmonic distortion
<1% 200Hz - 20kHz (86dB, 1m)
Nominal Impedance
8Ω (5.2 Ω min)
Recommended amplifier power
20W - 100W into 8Ω on unclipped program
Dimensions (includes wall bracket)
Height: 310mm (12 1/4in)
Width: 180mm (7in)
Depth: 210mm (8 1/4in)
Net weight
4kg (8.8lb) (1)
Finishes

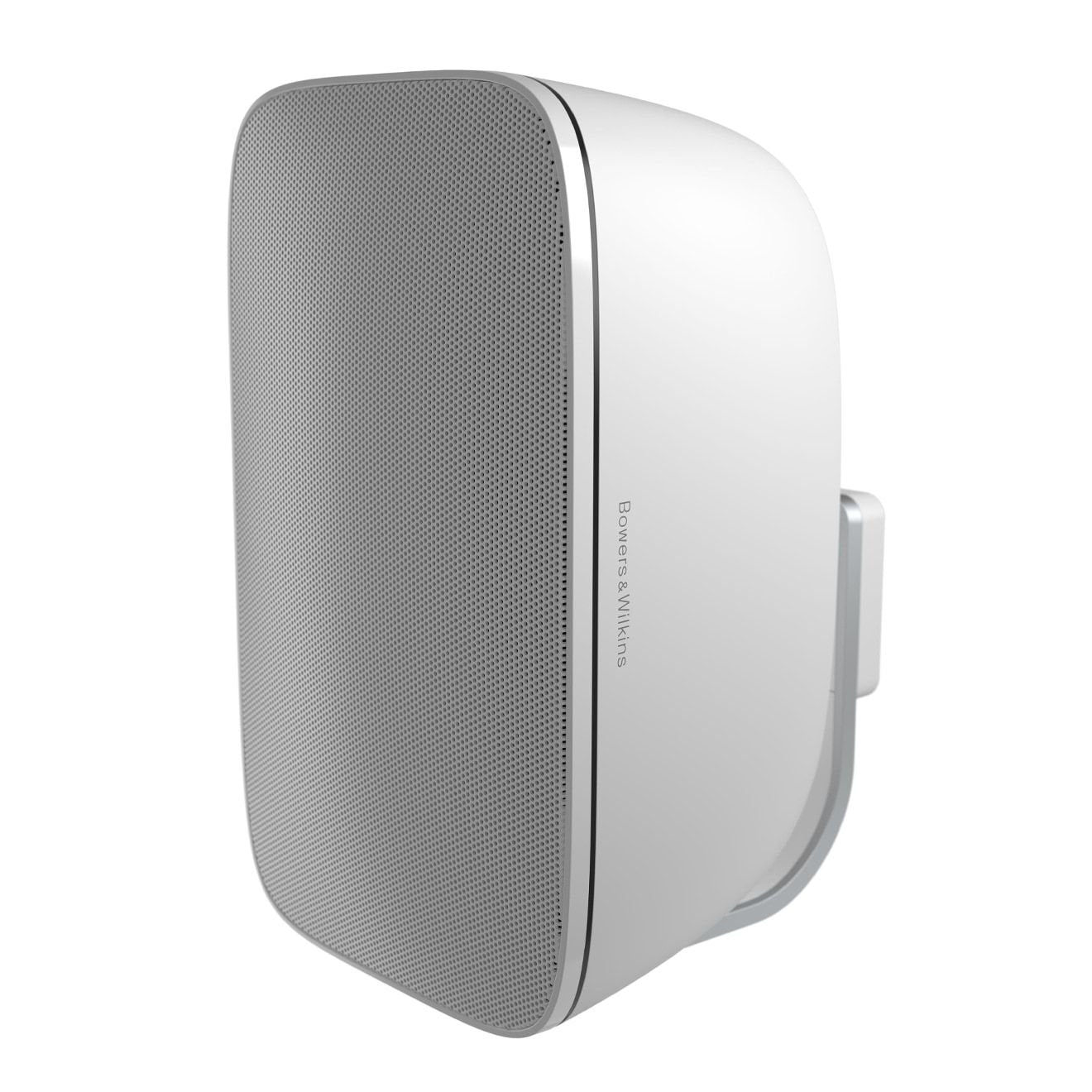

Matte white

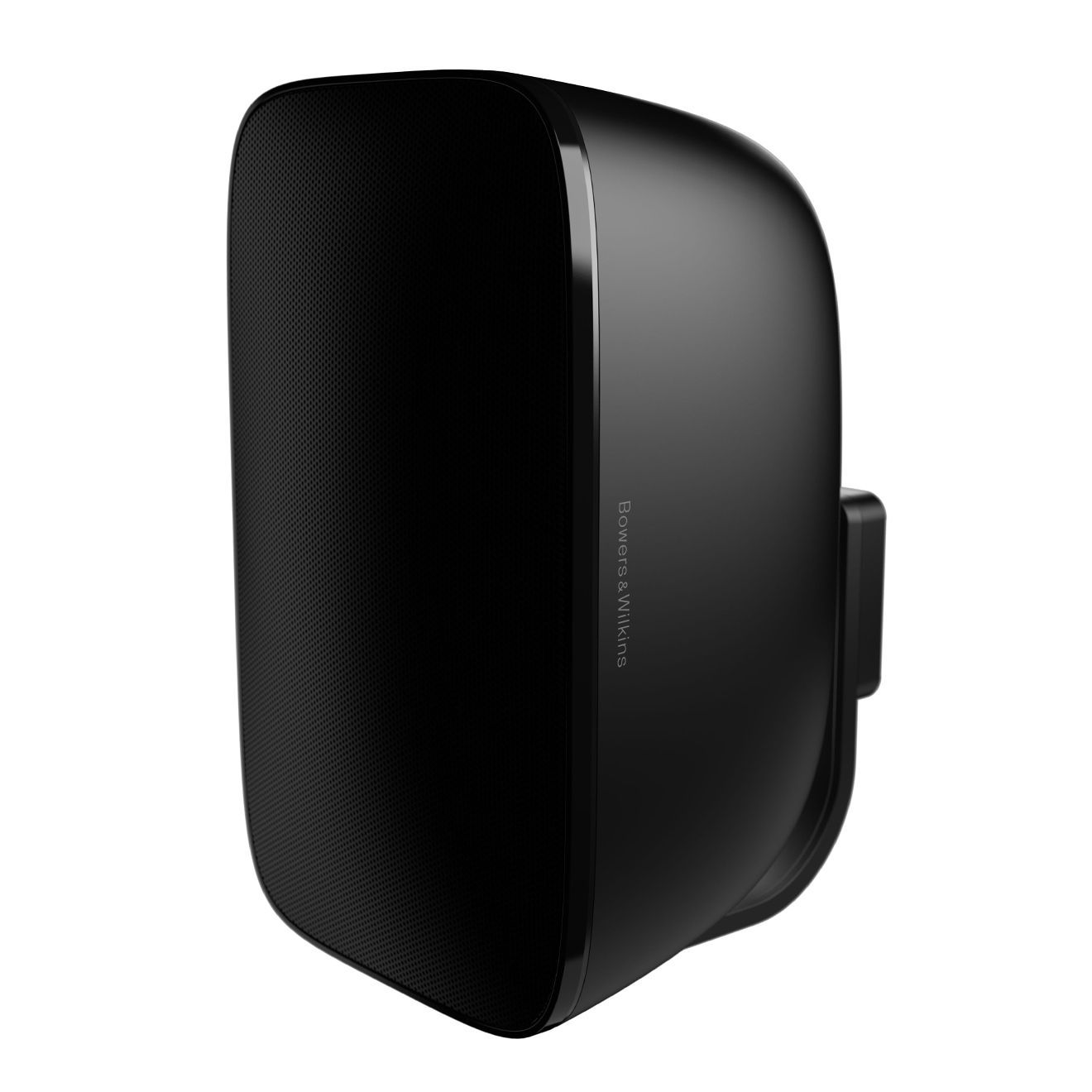

Matte black
