Anycubic Ace 2 Pro (Filament Box with Drying Capability)

• Printer Technology: FDM
• Print Speed: Up to 600 mm/h
• Enclosed: Yes

• The Anycubic ACE 2 Pro: Effortlessly manage 4 filaments with one unit.  Is an advanced multi-color filament manager and active drying station. It is mainly designed to manage up to 4 filament spools simultaneously while actively baking out moisture up to 65 °C during active prints. This prevents common printing flaws like layer stringing, bubbles, and weak adhesion caused by ambient humidity, ensuring high-speed, multi-color prints remain consistent and structurally sound. Powered by 4 independent brushless motors, offers the most flexible palette expansion for professional-grade 3D printing. (Note：ACE Pro and ACE 2 Pro cannot be used simultaneously)

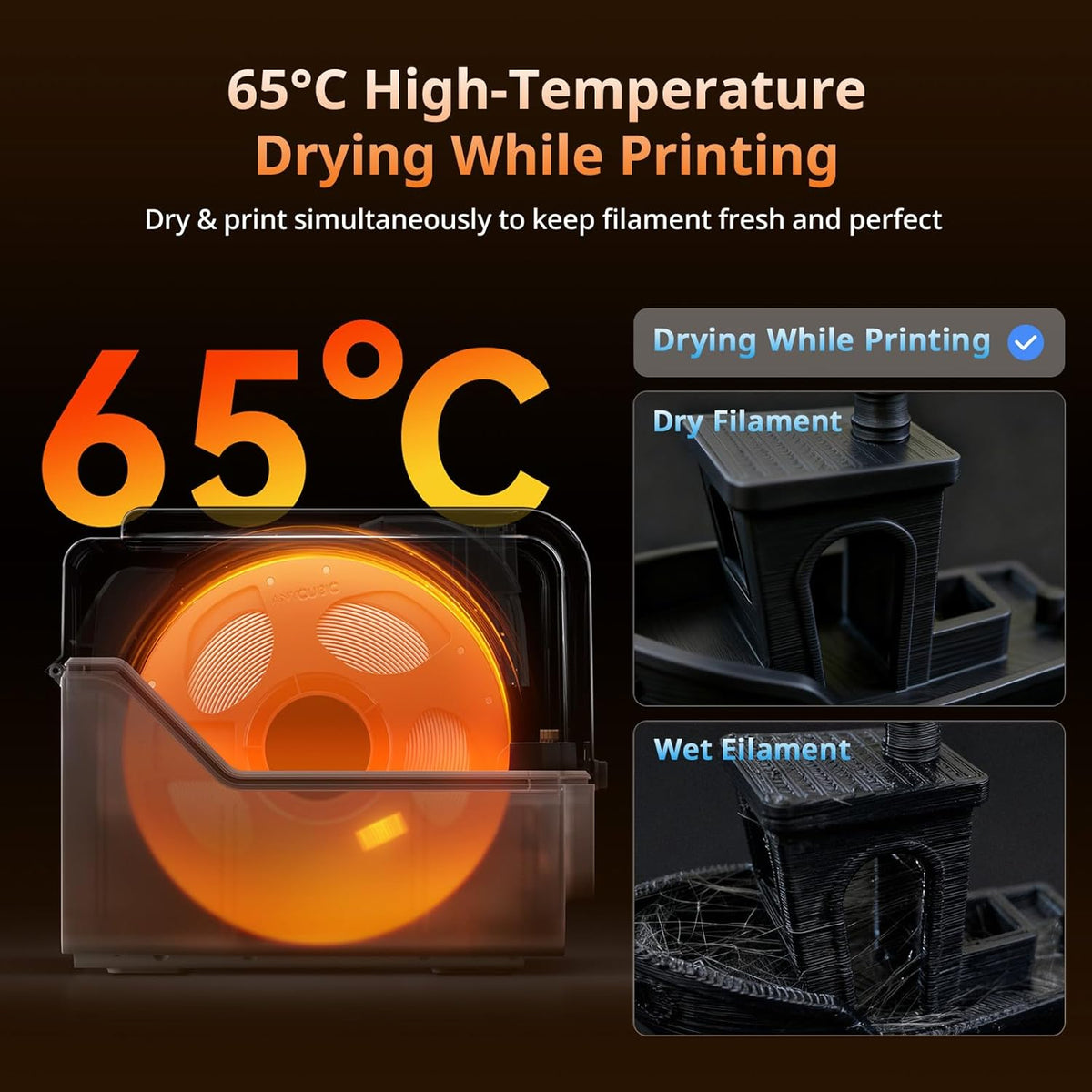

• Updated 65°C Active Drying While Printing:  ACE 2 Pro features a powerful 65°C active heater. It thoroughly dehumidifies PLA, PETG, and TPU while you print, ensuring bubble-free layers and professional surface finish even in humid environments.

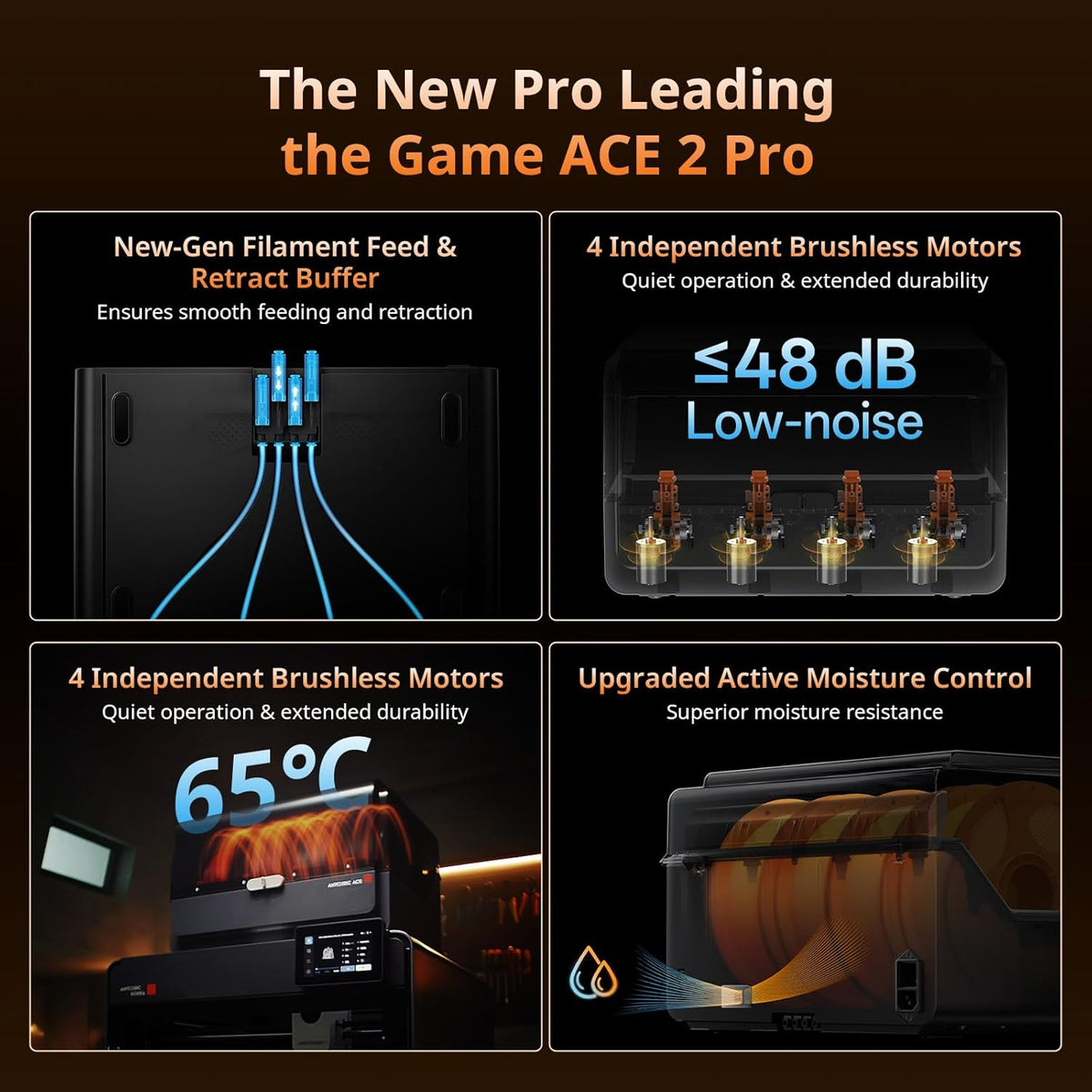

• Ultra Durable 4 Independent Brushless Motors: Engineered for longevity and quiet operation. The 4-motor drive system provides smoother filament feeding and retraction, reducing jams significantly. ACE 2 Pro enables ultra-fast filament transitions while maintaining a quiet 48dB environment. Experience a reliable 3D printing workflow with minimal maintenance.

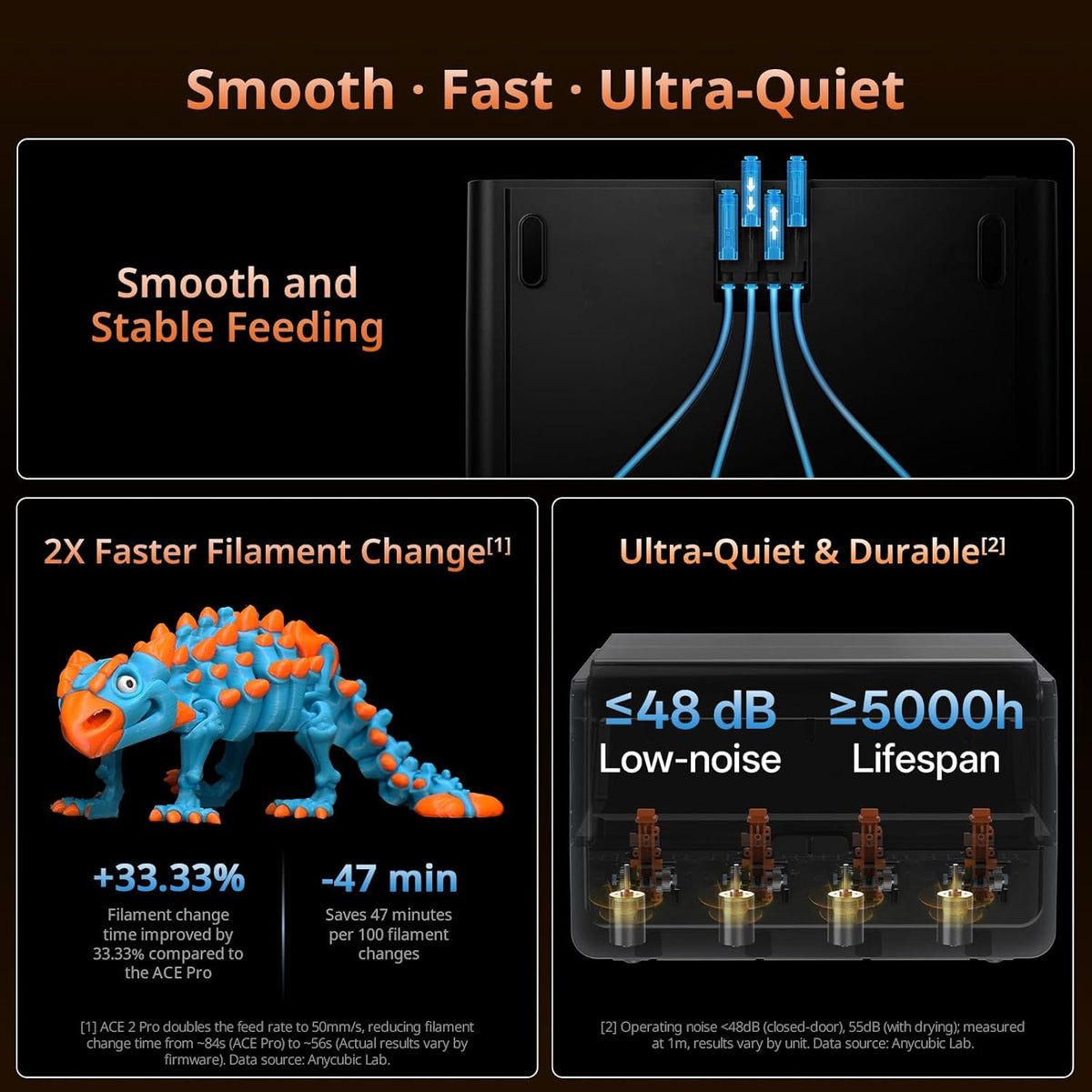

• 100% Faster Filament Change Efficiency: Maximize your creative uptime with our optimized feeding mechanism. The ACE 2 Pro increases filament loading speed by 100%, saving up to 47 minutes per 100 color changes. Whether you are working on complex multi-color designs or rapid prototyping, this smart system slashes wait times and ensures a smoother, more efficient workflow.
• Sealed Storage & Active Moisture Control: The upgraded active moisture control isolates humidity better than ever. Featuring filament runout detection and auto-resume, ACE 2 Pro protects your long-term prints from interruptions and material waste.

Features & Specs

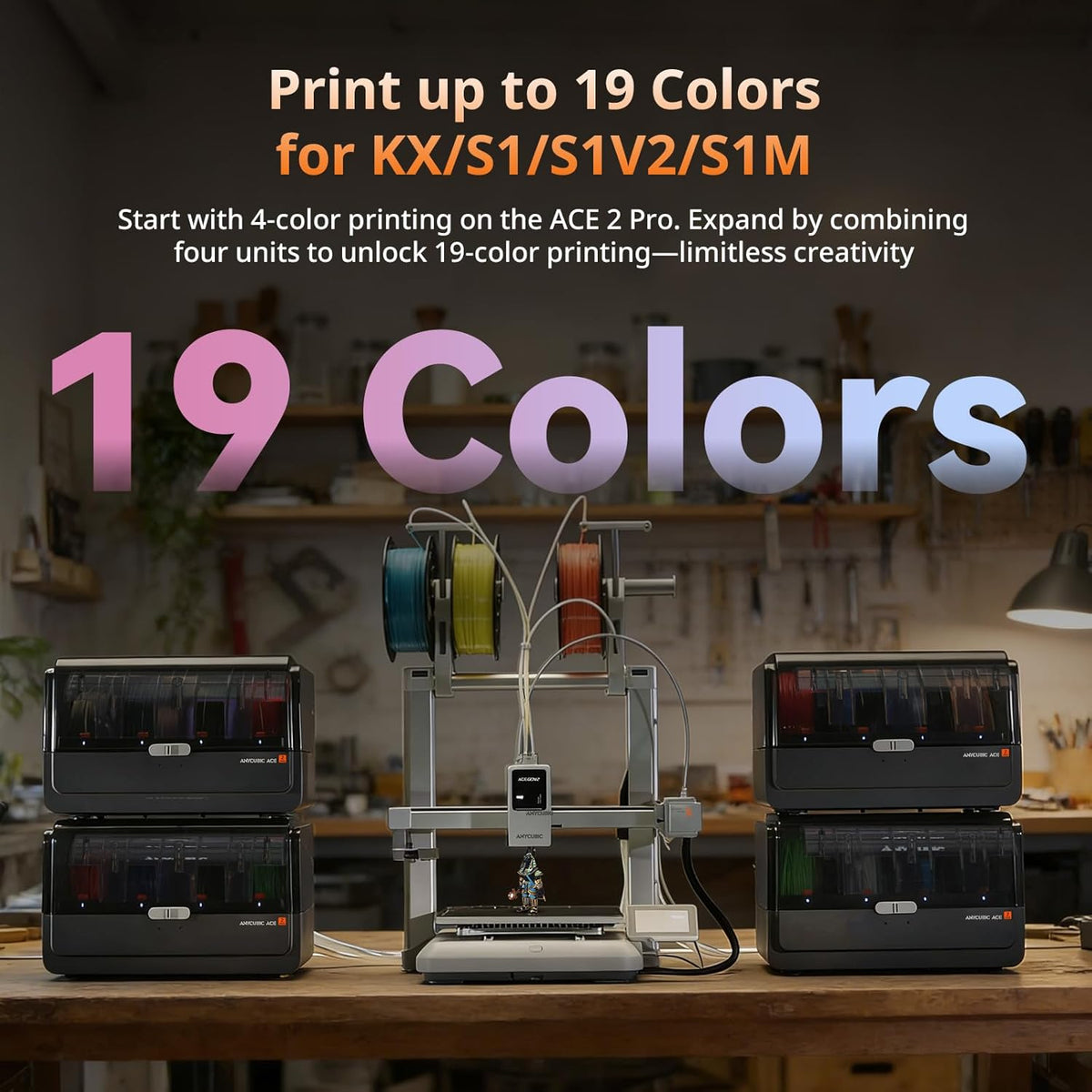

• Functionality: 4-Slot Intelligent Adaptive Multi-Color Hub & Enhanced Active Drying/Storage System (Allows simultaneous printing and active drying; expandable up to 16-19 colors depending on the printer model).
• Drying Technology: High-temperature active thermal heating paired with an upgraded automated air dehumidification loop and 4 independent brushless motors.
• Maximum Drying Temperature: Up to 65°C (Optimized for thorough drying of PLA, PETG, TPU, PVB, ABS, and ASA).
• Drying Duration: Continuous active drying during operation, featuring continuous real-time temperature and humidity tracking.
• Power Rating: Max 330W (at 220V) | Max 235W (at 110V).
• Filament Capacity: 4 spools per unit (Supports seamless auto-refill/spool backup switching).
• Compatible Spool Sizes: Flange/Outer Diameter: 195–200 mm | Spool Width: 60–68 mm | Flange Thickness: 3–6 mm (For 1.75 mm diameter filaments).

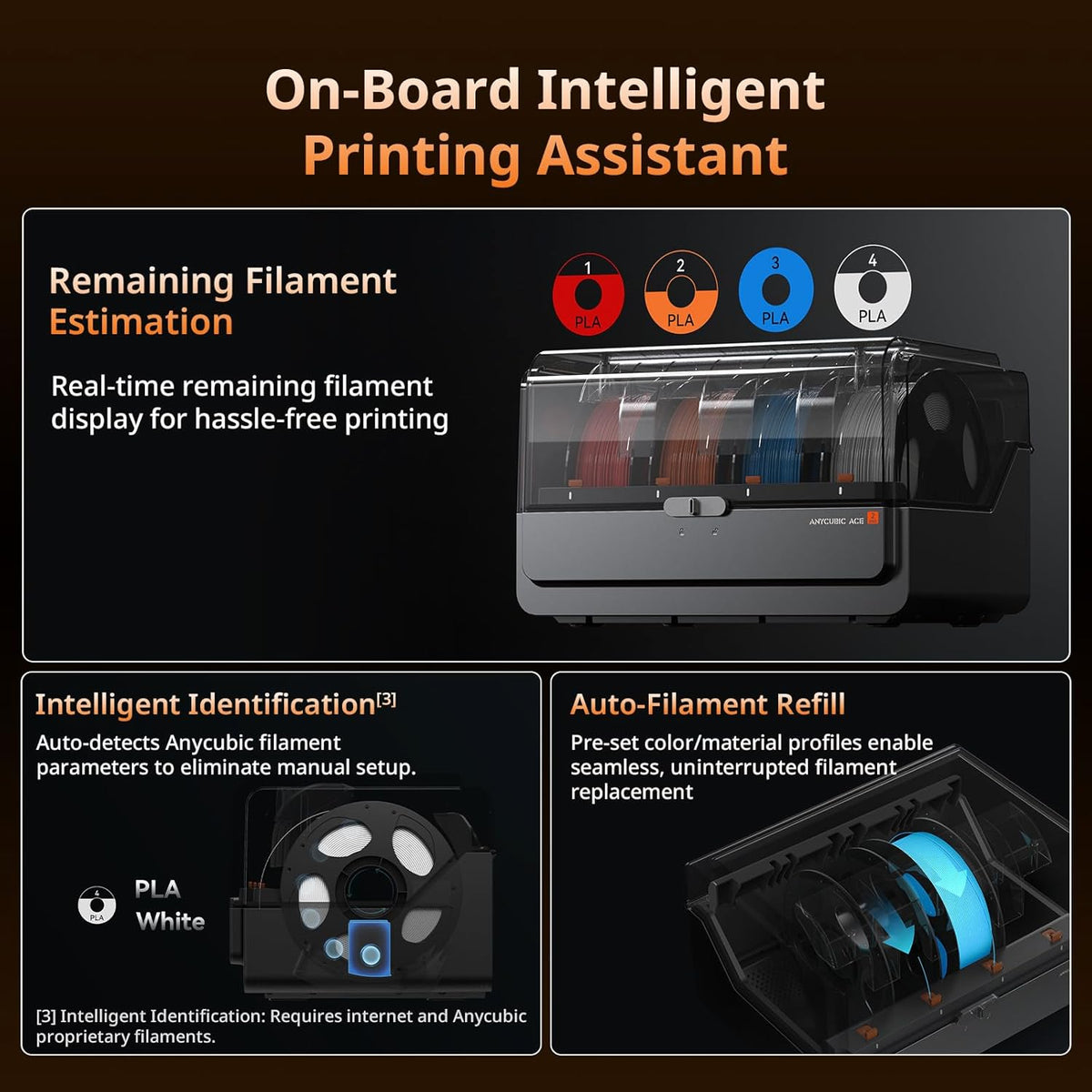

• Smart Tracking: Intelligent RFID Filament Identification (automatic setup sync for proprietary filaments) and real-time remaining filament mass estimation.

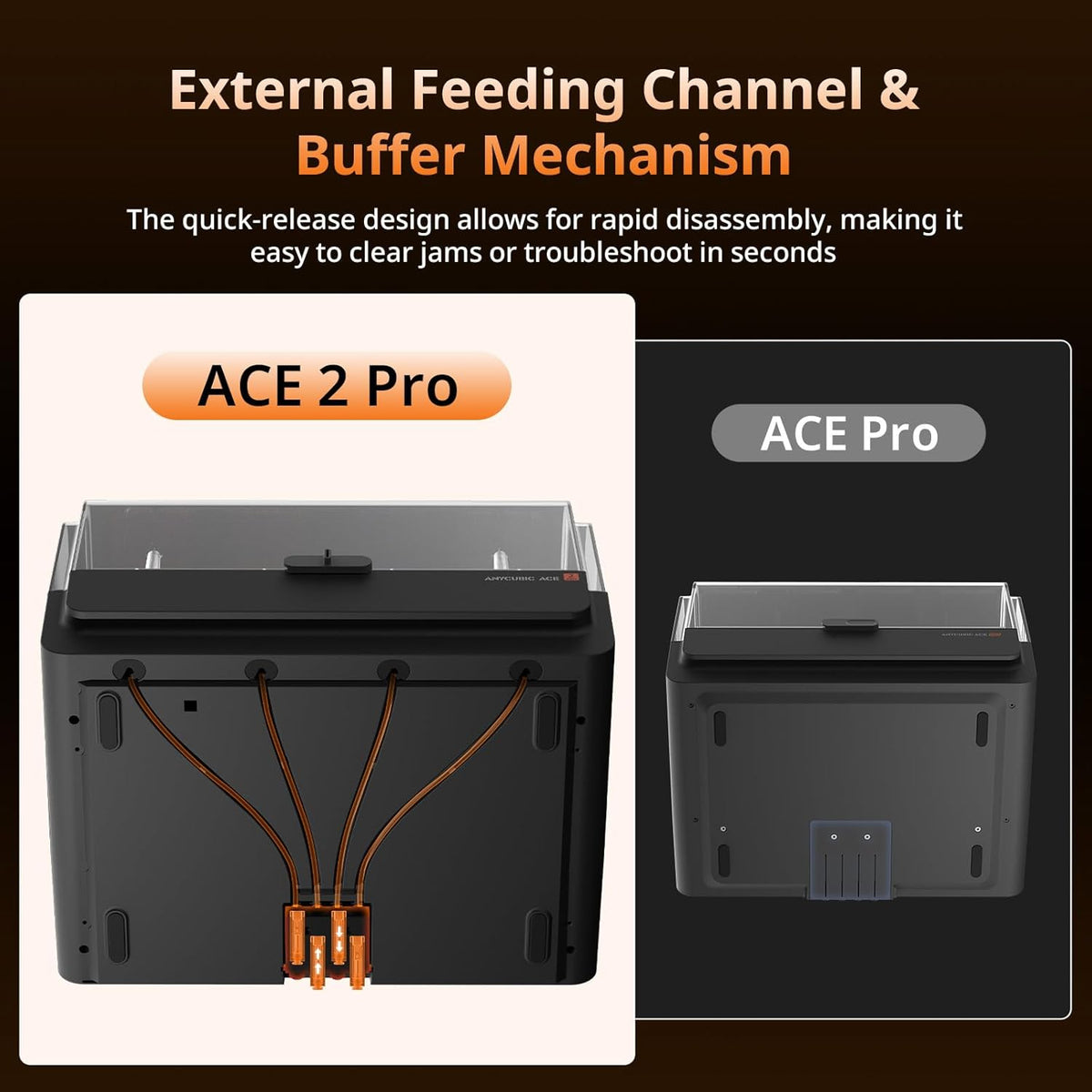

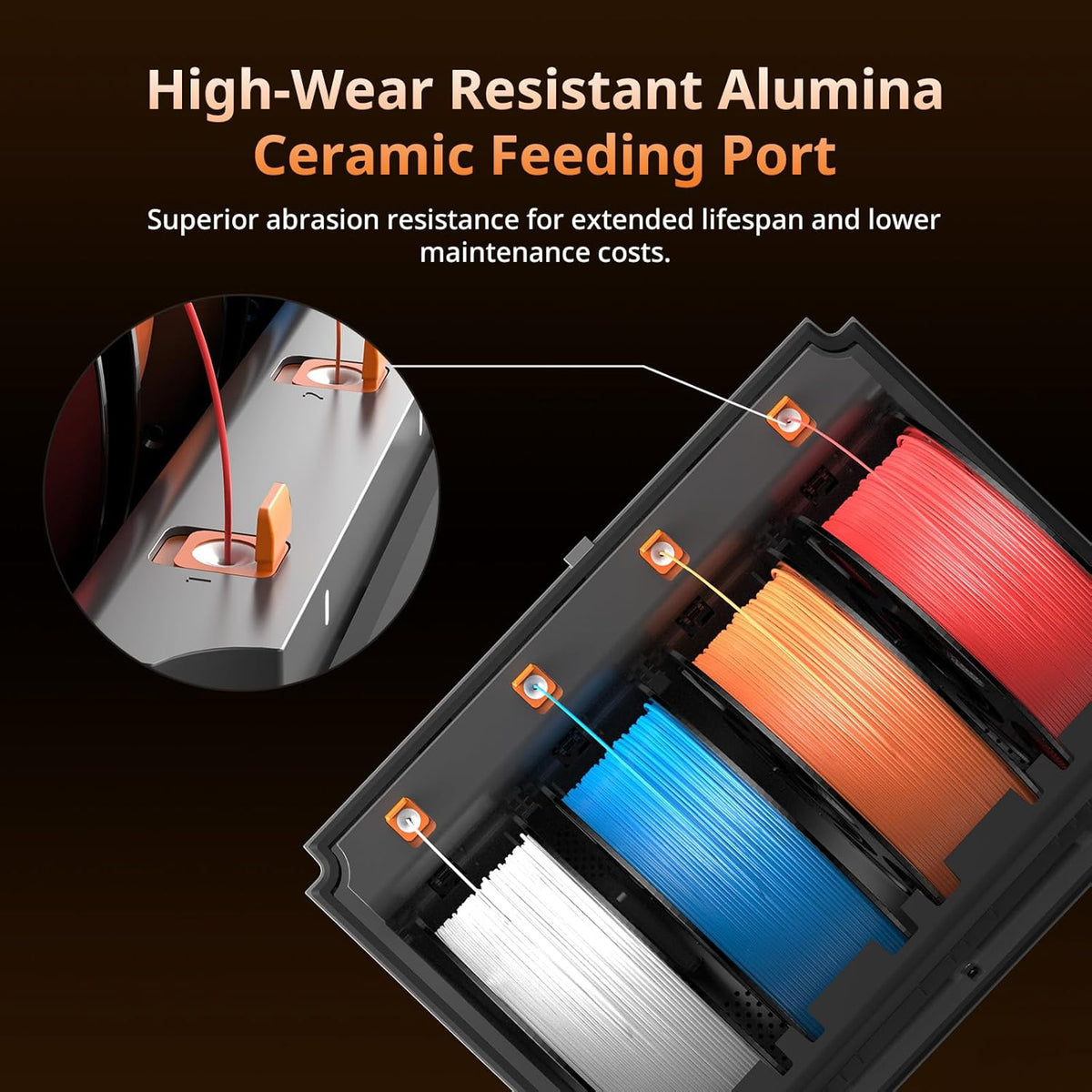

• Safety & Intelligence: New-gen filament feed & retract buffer mechanism, filament runout detection, automatic print-resume, and high-wear resistant Alumina Ceramic feeding ports to prevent jams.

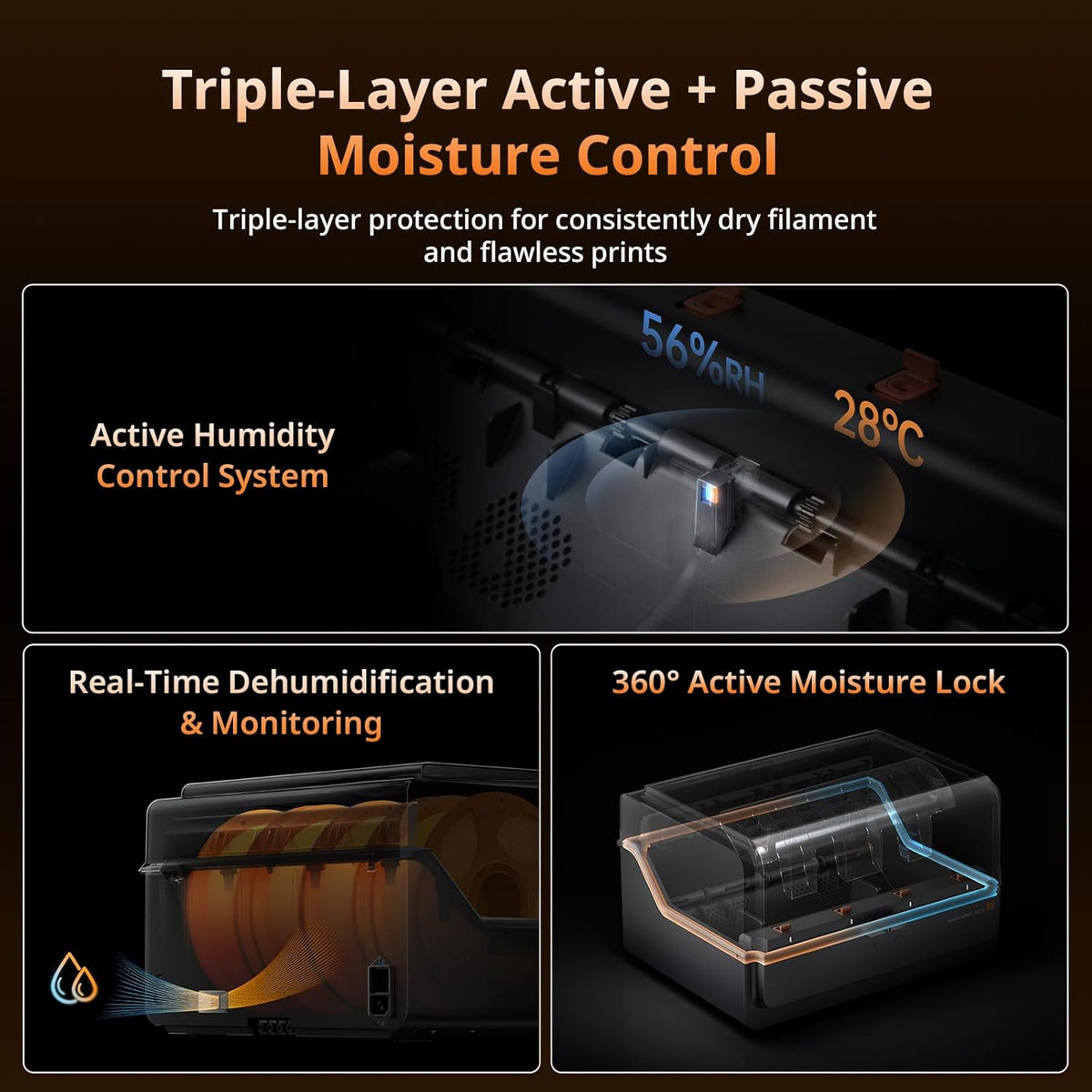

• Environmental Control: Fully sealed hermetic chamber with a passive moisture lock gasket, active moisture exhaust valve, and real-time monitoring via the app, slicer, or printer touchscreen.

Included Parts

• 1× Anycubic ACE 2 Pro Filament Box Unit
• Power Cable & Connection Signal Cable
• PTFE Filament Guide Tubes
• External PTFE Tube Buffer Assembly / Quick-Release Inlet Clip
• User Manual & Quick Start Guide

Items Dimensions & Weight

• Dimensions (W × H × L): 29.15 cm × 23.65 cm × 36.80 cm (368 × 236.5 × 291.5 mm)
• Weight: 3,700 g (3.7 kg)

Package Dimensions & Weight

• Package Dimensions (W × H × L): 34.50 cm × 32.00 cm × 44.50 cm (445 × 320 × 345 mm)
• Package Weight: 4,800 g (4.8 kg)
