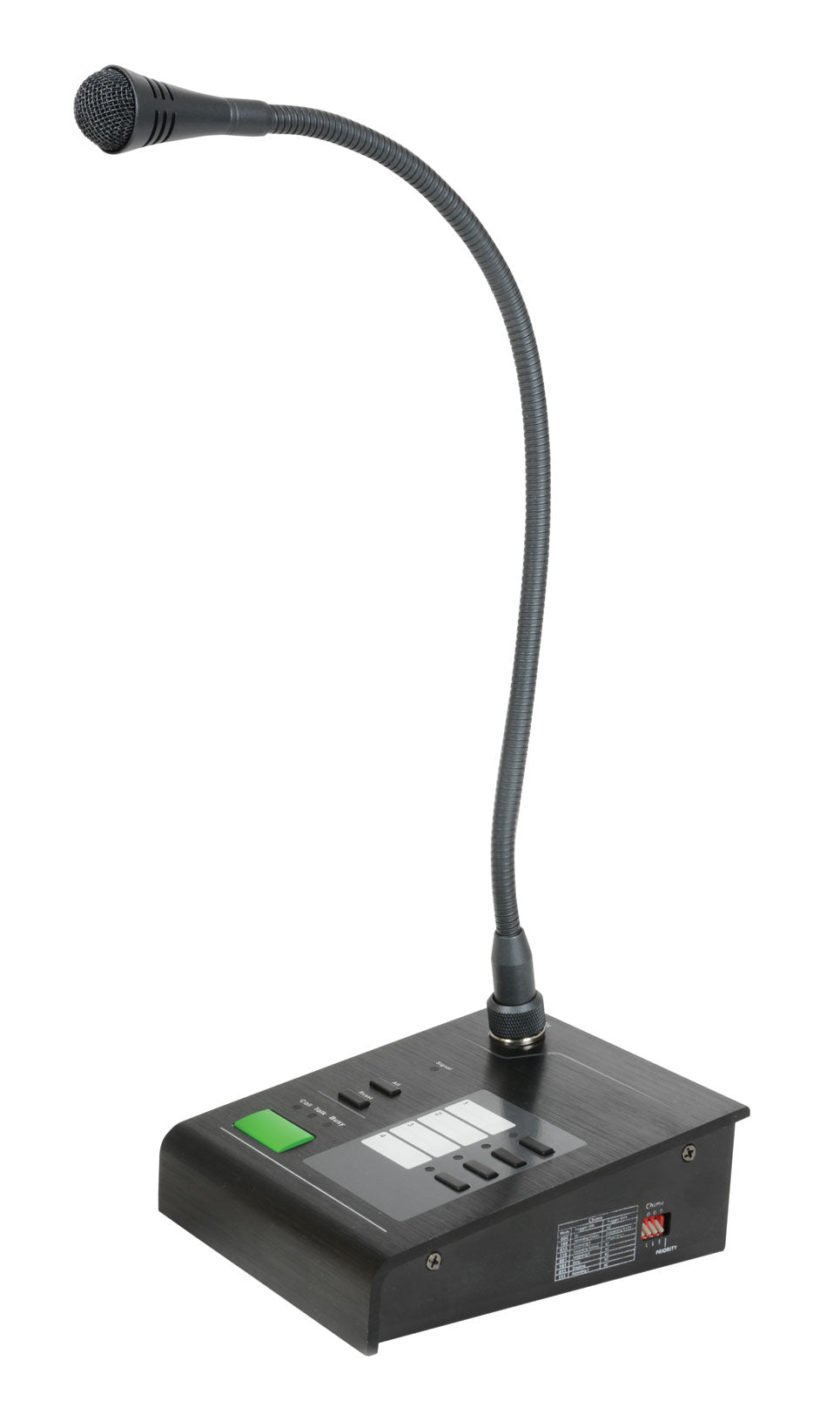

Adastra CS4 Call Station for RM244V 953.146UK

  • €169,00
    Unit price per
Tax included.

translation missing: en.products.product.only_left at Vyzantiou Store
Will not ship until

  • For use with the RM244V amplifier (953.144UK)
  • Assignable to individual or all 4 zones

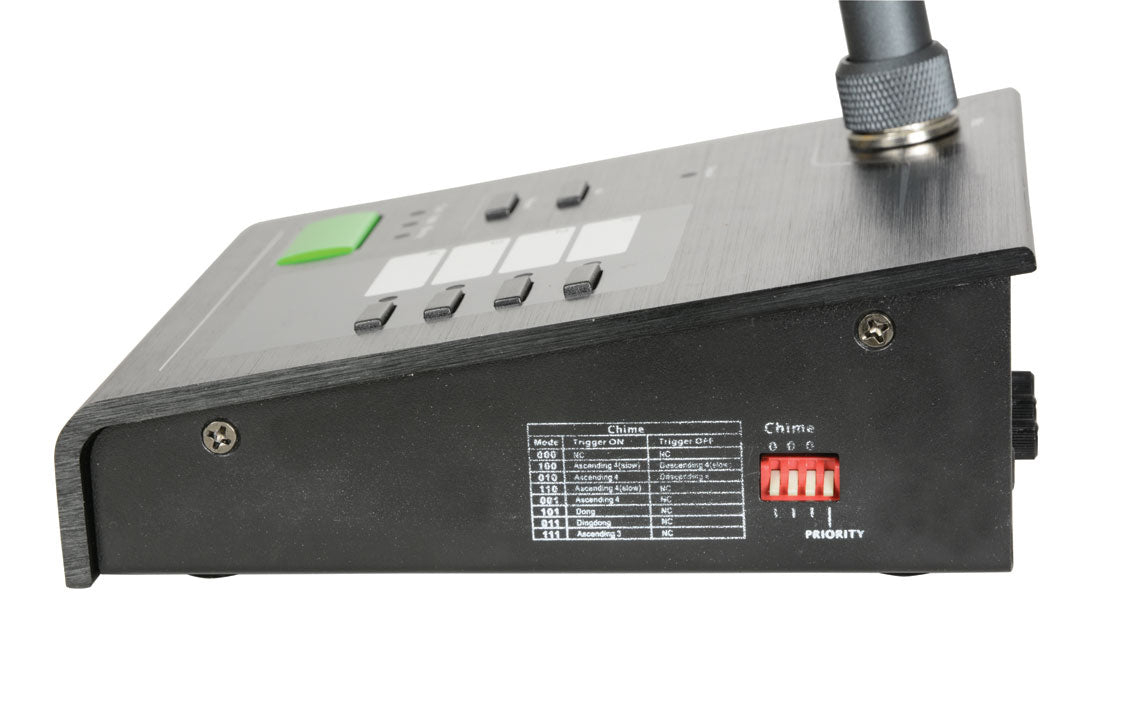

  • 8 selectable chime settings
  • 3.5mm aux input
  • Up to 1km remote wiring over CAT5
  • Supplied with 1m RJ45 patch lead
  • Power supply 24Vdc, 500mA from RJ45 or optional adaptor
  • Max. connection length 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
  • Capsule back electret condenser
  • Polar pattern Cardioid

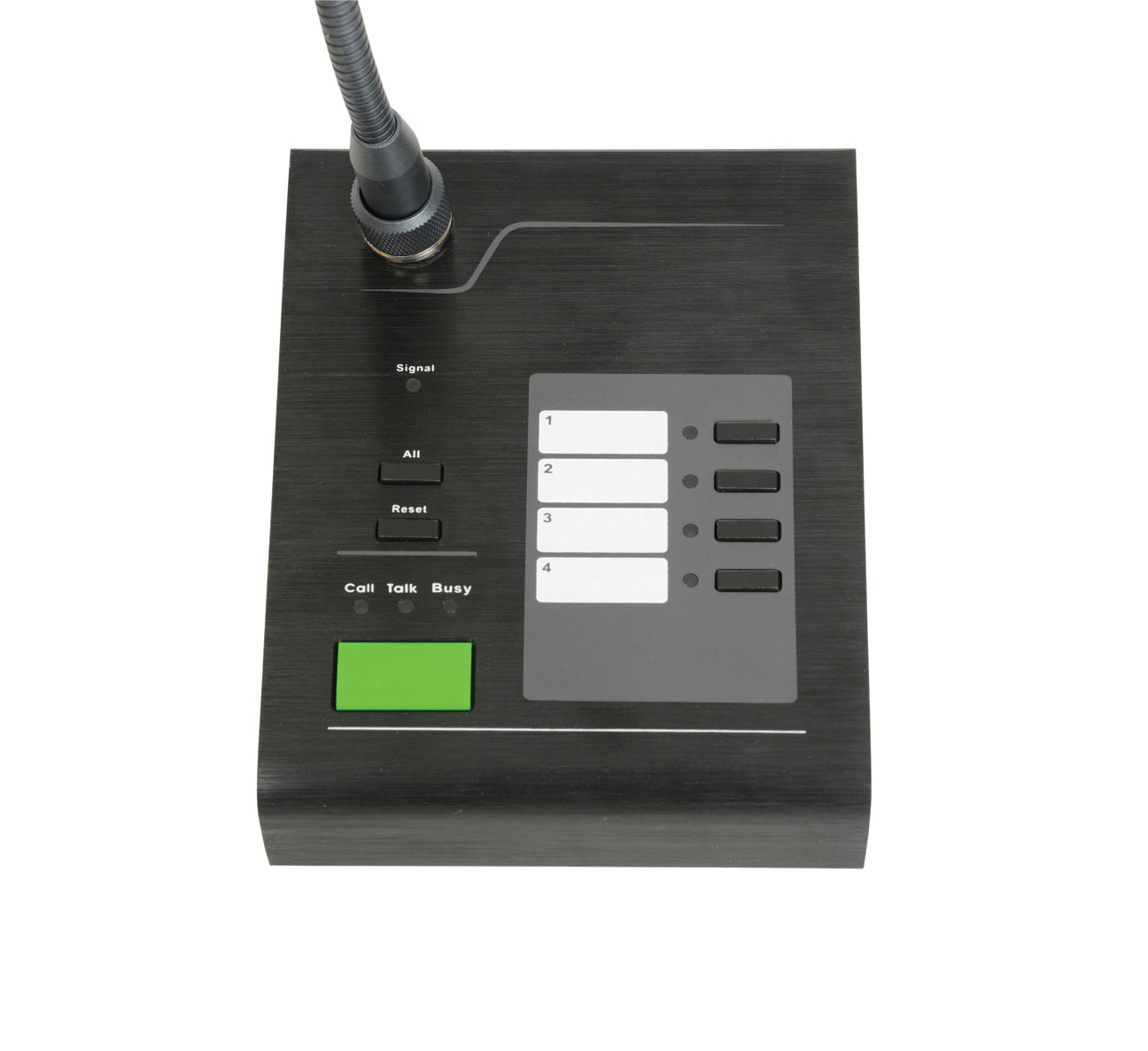

  • Controls Aux/Mic/Chime levels, chime DIP switches, zone/page buttons

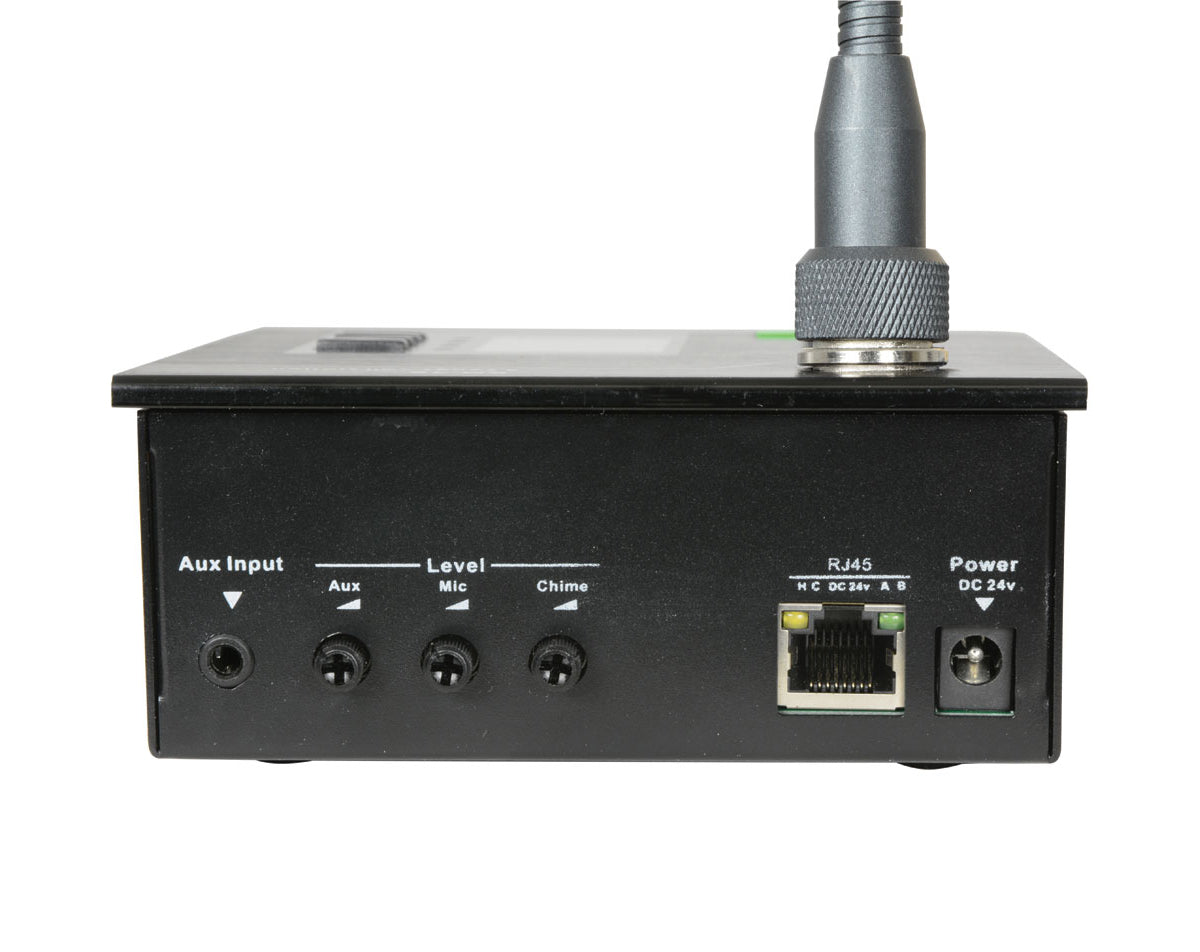

  • Connectors RJ45 to amplifier, 24Vdc power jack, 3.5mm aux in
  • Frequency response : -3dB 150Hz - 22kHz
  • Input level Mic: -46dBV, Aux: -10dBV
  • Input impedance Mic: 600 Ohms, Aux: 50k Ohms
  • Output level 10dBV
  • Output impedance : balanced 600 Ohms
  • S/N ratio -60dB (all channels selected)
  • Interface RS-485 control
  • Zone assign 4 zones or all selectable
  • Dimensions 460 x 140 x 115mm
  • Weight 670g
