SAMSUNG AIR CONDITION MALDIVES AR5500M, 9.000 BTU, INVERTER , R32, CLASS A++/A+, AREA 12-18M², WALL TYPE

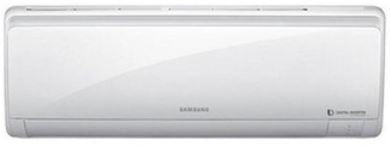

AR5500M Wall-mount AC with Faster Cooling, 9000 BTU/h



Works smart, saves energy

An energy-efficient Digital Inverter 8-Pole maintains the desired temperature without frequently turning off and on. So it uses less energy* and helps you stay comfortable for long periods.







Specification



Capacity

Capacity (Cooling, Btu/hr)

8,530

Capacity (Heating, Btu/hr)

10,919

Capacity (Cooling, Min - Max, Btu/hr)

3,753 - 11,260

Capacity (Heating, Min - Max, Btu/hr)

3,583 - 13,649

Capacity (Cooling, kW)

2.5

Capacity (Heating, kW)

3.2

Capacity (Cooling, Min - Max, kW)

1.1 - 3.3

Capacity (Heating, Min - Max, kW)

1.05 - 4

Capacity (Cooling, kJ/h)

9,000

Capacity (Heating, kJ/h)

11,520

Capacity (Cooling, Min - Max, kJ/h)

3,960 - 11,880

Capacity (Heating, Min - Max, kJ/h)

3,780 - 14,400



Energy Efficiency

EER (Cooling, W/W)

3.21

COP (Heating, W/W)

3.56

EER (Cooling, Btu/hW)

10.94

COP (Heating, Btu/hW)

12.13

EER (Cooling, kJ/hW)

11.54

Energy Efficiency Class for cooling (Grade)

A

Noise Level

Noise Level (Indoor, High/Low, dBA)

38 / 19

Noise Level (Outdoor, High/Low, dBA)

49

Electrical Data

Power Source(Φ/V/Hz)

1, 220 ~ 240 ~, 50

Power Consumption(Cooling, W)

780

Power Consumption(Heating, W)

900

Operating Current(Cooling, A)

3.9

Operating Current(Heating, A)

4.3



Physical specification

Gross Dimension (Indoor, WxHxD, mm)

880 x 280 x 363

Gross Dimension (Outdoor, WxHxD, mm)

778 x 550 x 331

Net Dimension (Indoor, WxHxD, mm)

820 x 285 x 227

Net Dimension (Outdoor, WxHxD, mm)

660 x 475 x 242

Gross Weight (Indoor, kg)

9.8

Gross Weight (Outdoor, kg)

24.2

Net Weight (Indoor, kg)

8.5

Net Weight (Outdoor, kg)

22.4

Loading Quantity (20/40/40Hft without Pipe)

120 / 248 / 280

Loading Quantity (20/40/40Hft with Pipe)

111 / 228 / 259

Technical Information

Piping Length (Max, m)

15

Piping Height (Max, m)

7

SVC Valve (Liquid (ODxL))

6.35

SVC Valve (Gas (ODxL))

9.52

Moisture Removal (l/hr)

1

Air Circulation (Cooling, ㎥/min)

9.6

Refrigerant (Type)

R410A

Refrigerant (Charging, kg)

0.88

Low Ambient (Cooling, ℃)

16 - 46

Low Ambient (Heating, ℃)

-10 - 24

Outdoor Unit (Compressor Type)

8-POLE

Outdoor Unit (Anti-Corrosion Fin)

Yes



Air Flow

Air Direction Control (Up/Down)

Auto

Air Flow Control Step (Cool/Fan)

5 / 4

Air Purification

Allergy Care

Yes

Anti-Bacteria

Yes

Auto Clean (Self Cleaning)

Yes

Virus Doctor

No

Easy filter

No

Easy Filter Plus

No

Convenience

Smart wifi

No

Filter Cleaning Indicatior

No

Indoor Temp. Display

No

Display On/Off

No

Beep On/Off

Yes

24-Hour Timer

Yes

Auto Changeover

Yes

Auto Restart

Yes

Operating Mode

2 Step Cooling

Yes

Fast Cool

Yes

Comfort Cool

Yes

Dlight Cool

No

Good Sleep

Yes

Single User Mode

Yes

Dehumidification

Yes

Fan Mode

Yes

Quiet

Yes
